Terminal for FangFix system

Item no. 5403219 | EAN 4012195548775

5403219 / F-FIX-KL
Rd 8 mm
Product description

Product description

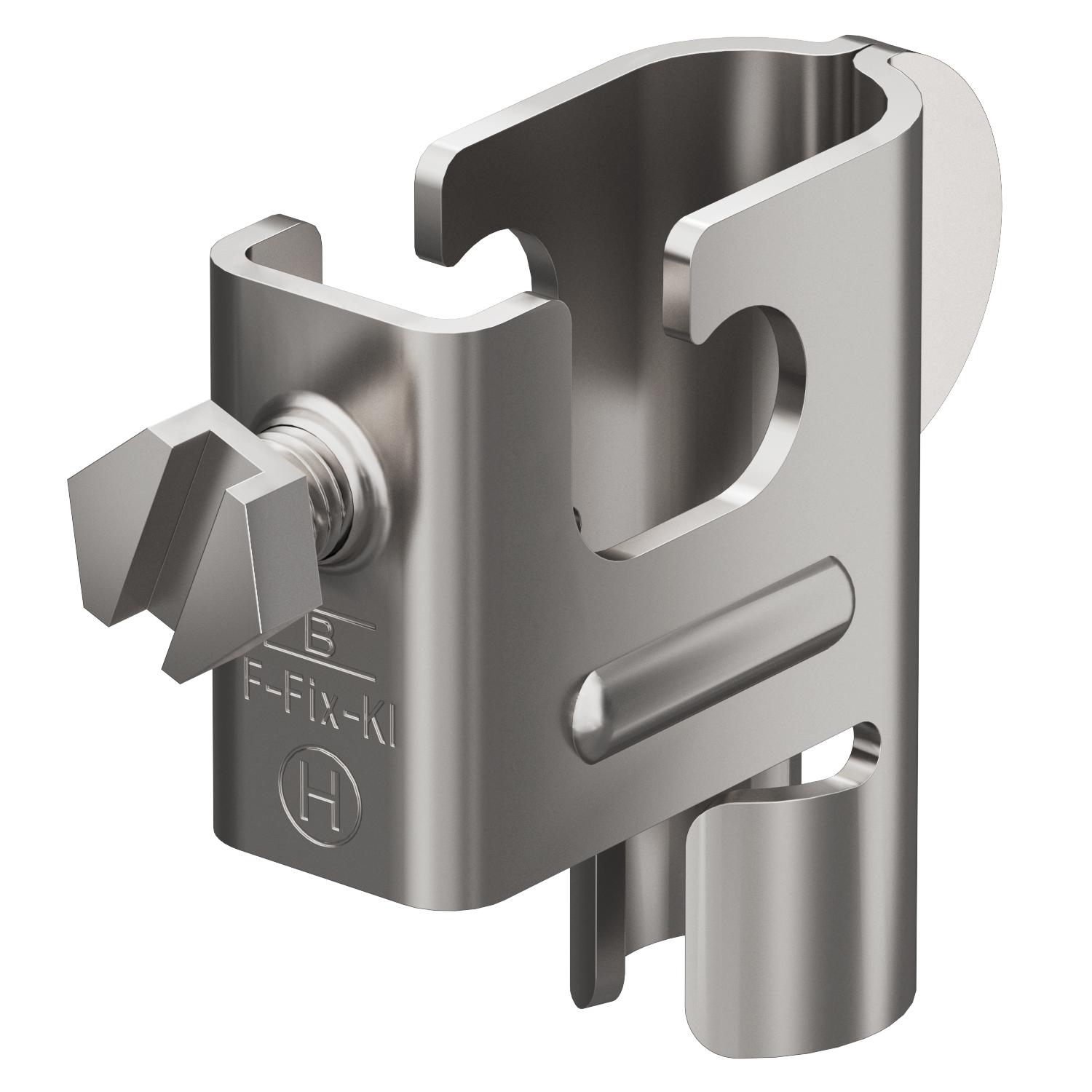

• FangFix terminal, VA for RD 8 mm
• Tested with H (0185 kA) to DIN EN 305-62305
• Round conductor installed on the air-termination rod with only one screw
• Suitable for Ø 16 mm pipe air-termination rods
  • Lightning current-tested
Technical data

Technical data

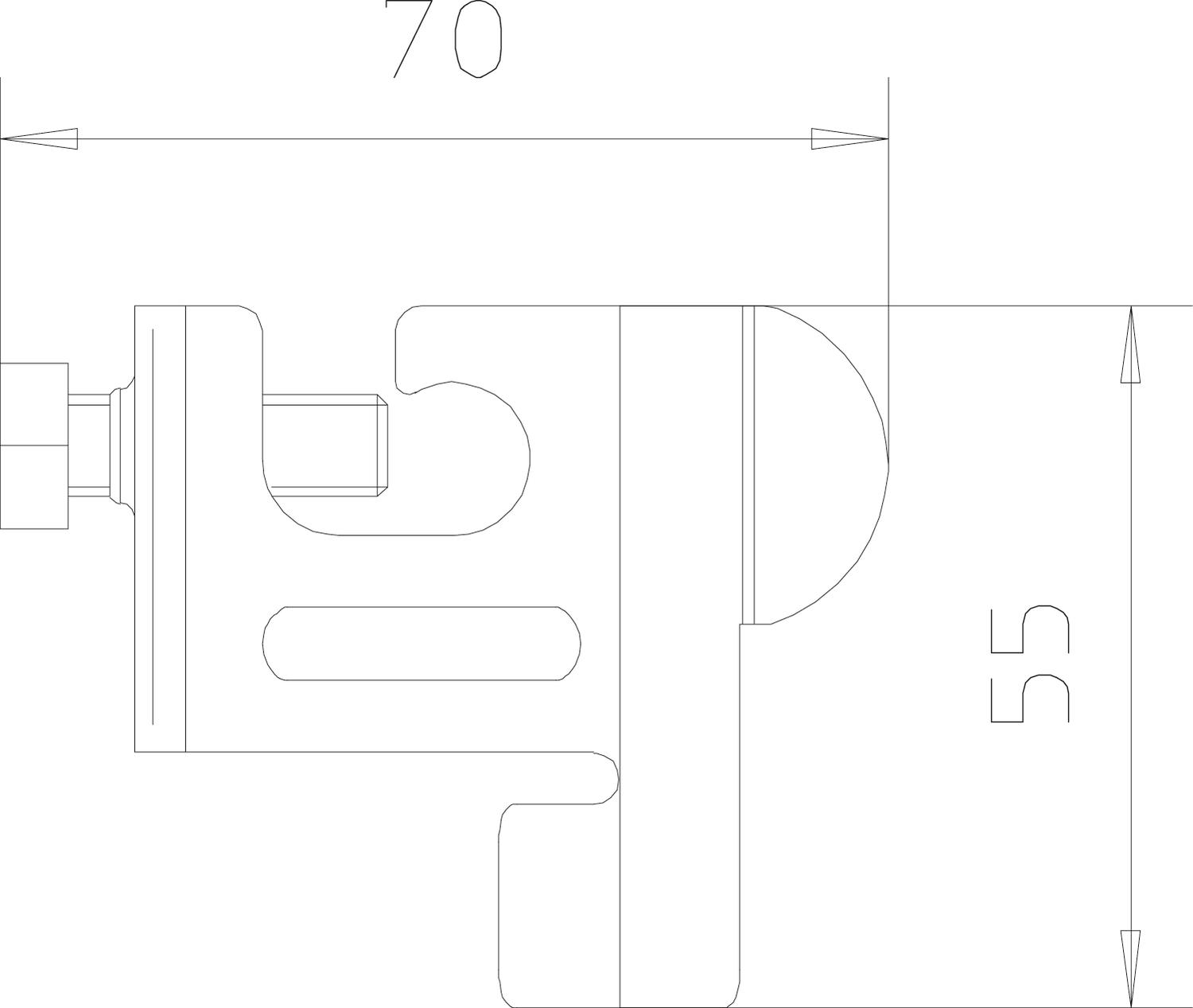

Dimension RD8
Fit Rd 8 mm
Height 55 mm
Length 55 mm
Material Stainless steel
Width 70 mm
All types

All types

Types Fit Item no. Quantity SSU
F-FIX-KL Rd 8 mm 5403219
5 piece
Downloads

Download

Download

REACH Declaration of conformity F-FIX-KL / 5403219 , 0.12MB , pdf
RoHS Declaration of conformity F-FIX-KL / 5403219 , 0.13MB , pdf
