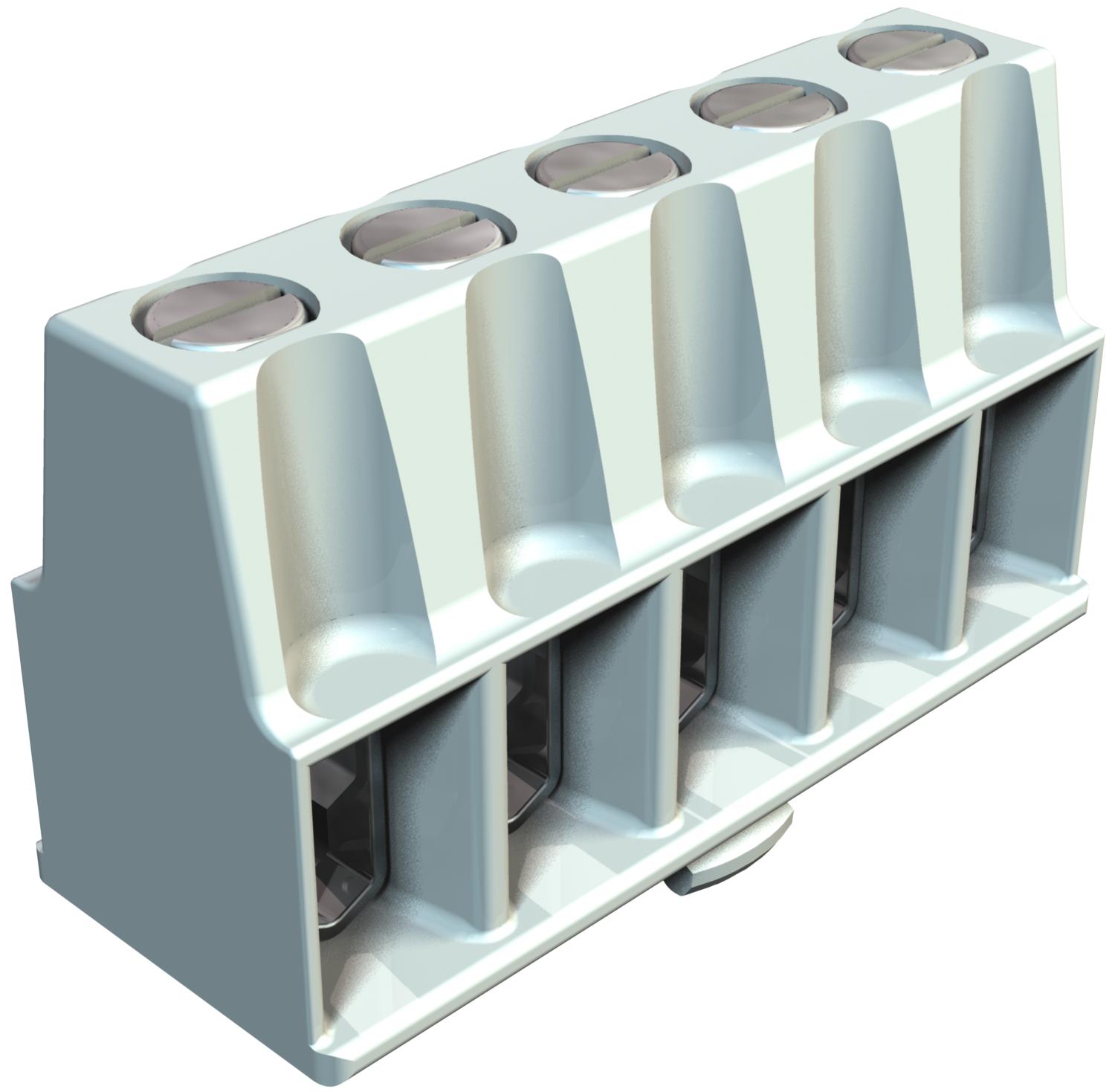

Terminal strip 1.5–6 mm², junction box, T series

Item no. 2016185 | EAN 4012195942832

2016185 / KL-T 02-06
5
1.5 mm²
6 mm²
400 V
Product description

Product description

Terminals and screws made of steel, galvanised and transparent-chromated, nominal cross-section 1.5 ÷ 6 mm², rated voltage 400 V, five-pole, with socket terminals, max. connectable cross-sections per terminal: 3x6 mm², 4x4 mm² or 6x2.5 mm².
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives

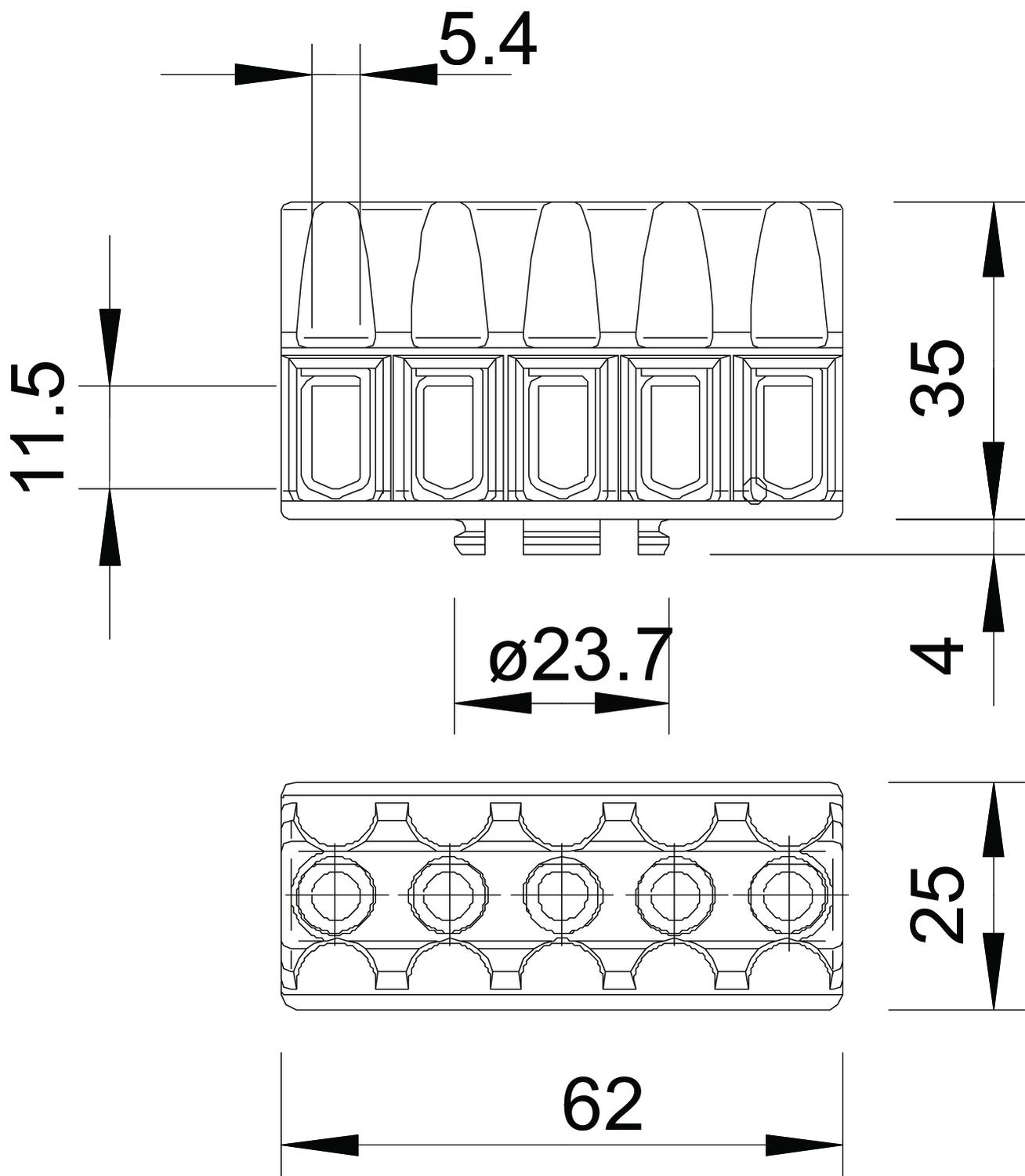

Technical data

Technical data

Closing plate required no
Colour Light grey
Connectable conductor cross-section, single-wire, max. 6 mm²
Connectable conductor cross-section, single-wire, min. 2,5 mm²
Connection position Side
Cross-section Max. connectable cross-sections per terminal: 3 x 6 mm², 4 x 4 mm² or 6 x 2.5 mm² mm²
Dimension 6mm²
Explosion-tested version no
Height 35 mm
Insulation material Thermoplast
Length 62 mm
Material Polyamide
No. of terminals 5
Nominal cross-section, max. 6 mm²
Nominal cross-section, min. 1,5 mm²
Nominal current 41 A
Nominal voltage 400 V
Number of screwless terminals per pole 1
Pole number 5
Transparent no
Version of electrical connection 1 Screw connection
Width 25 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
KL-T 02-06 5 1.5 mm² 6 mm² 400 V 2016185
10 piece
