- Product description
-
Product descriptionBrass terminals, steel screws, electrogalvanised and transparently passivated, nominal cross-section 16 ÷ 35 mm², nominal voltage 400 V, 1-pin, with terminal sockets, max. connectable conductor per terminal 4 x 35 mm², 4 x 25 mm², 8 x 16 mm² or 12 x 10 mm².
- Technical data
-
Technical data

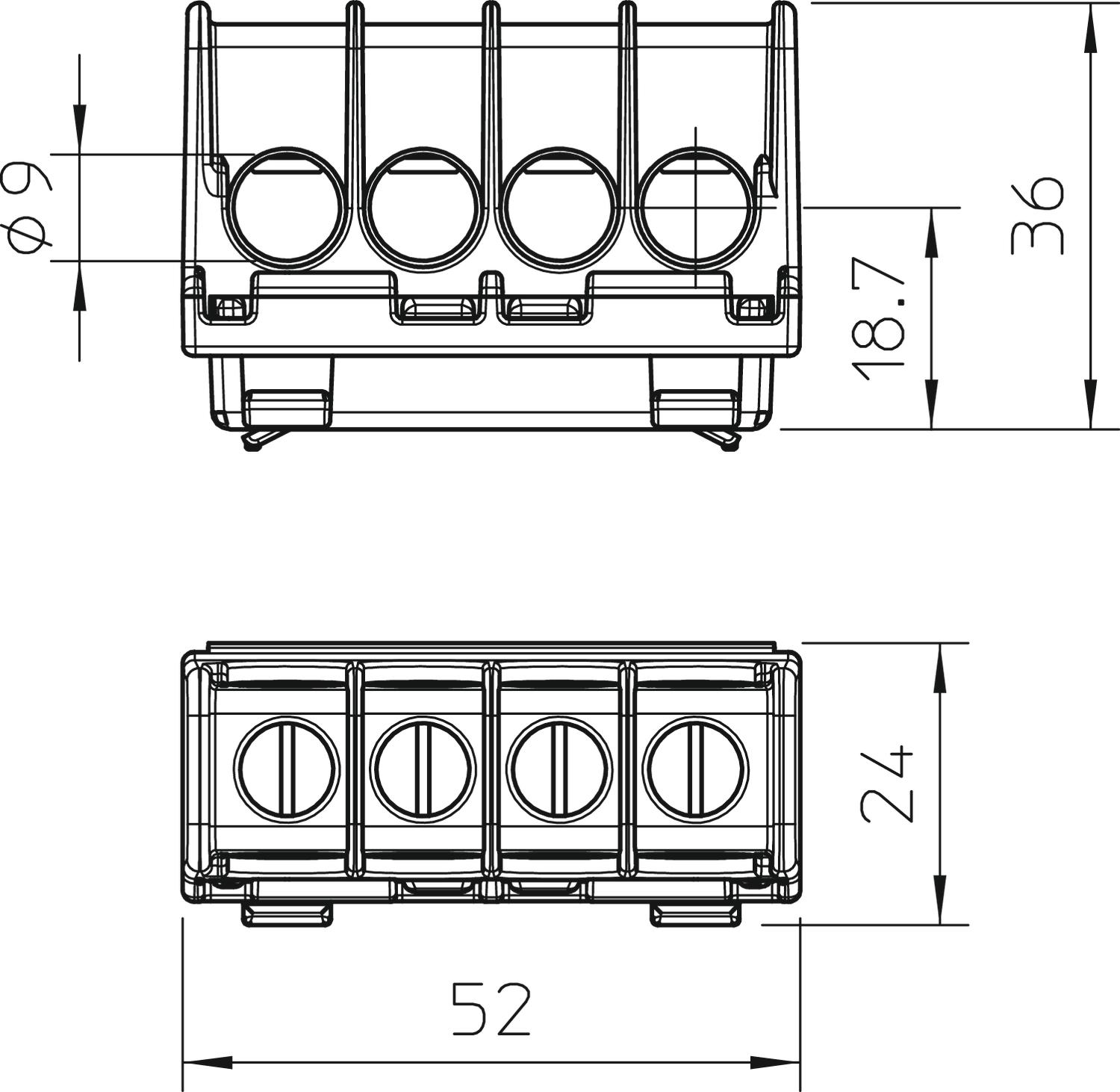

Closing plate required no Colour Light grey Connectable conductor cross-section, single-wire, max. 35 mm² Connectable conductor cross-section, single-wire, min. 10 mm² Connection position Side Cross-section Max. connectable conductors per terminal max. 4 x 35 mm², 4 x 25 mm², 8x16 mm² or 12 x 10 mm² mm² Dimension 35mm² Explosion-tested version no Height 36 mm Insulation material Thermoplast Length 52 mm Material Polyamide No. of terminals 4 Nominal cross-section, max. 35 mm² Nominal cross-section, min. 16 mm² Nominal current 125 A Nominal voltage 400 V Number of screwless terminals per pole 1 Pole number 1 Transparent no Version of electrical connection 1 Screw connection Width 24 mm - All types
- Downloads
-
Data sheet KL-T 16-35 / 2016195 , 0.24MB , pdfEU declaration of conformity KL-T 16-35 / 2016195 , 0.05MB , pdfLabel approval VDE symbol approval, KL-T 2013 , 2.00MB , pdf
