Terminal strip set for X series 182 | 16 | 35 | 450

Terminal strip set for X series

Item no. 2008939 | EAN 4012196614318

Item no. / Types

Length

Nominal cross-section, min.

Nominal cross-section, max.

Nominal voltage	450 V

Product description

Product description

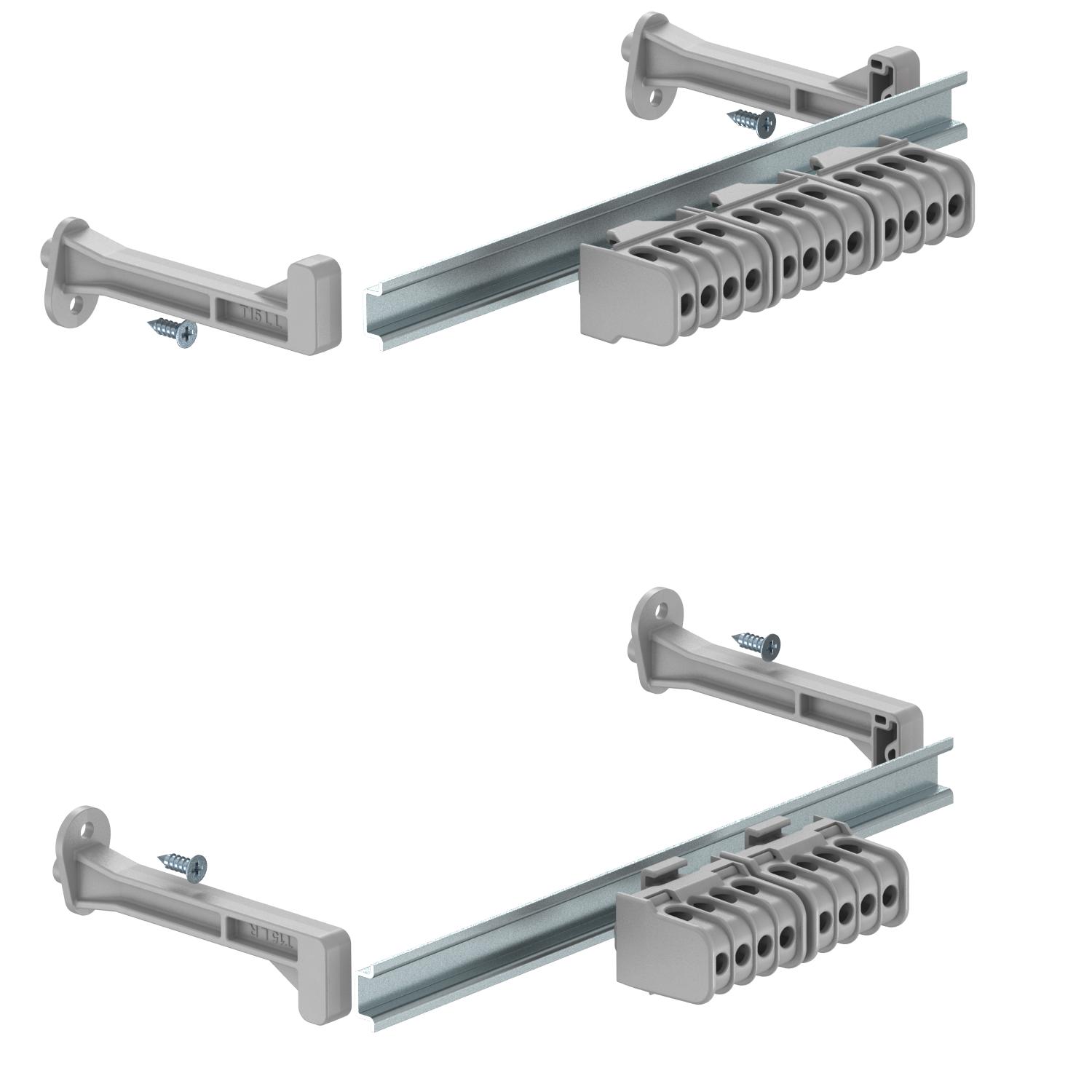

Terminal strip set for the distribution boxes of the SDB series. The sets can be used to expand and equip empty distribution boxes of the SDB series.
Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal

Technical data

Technical data

Dimension	16-35mm²

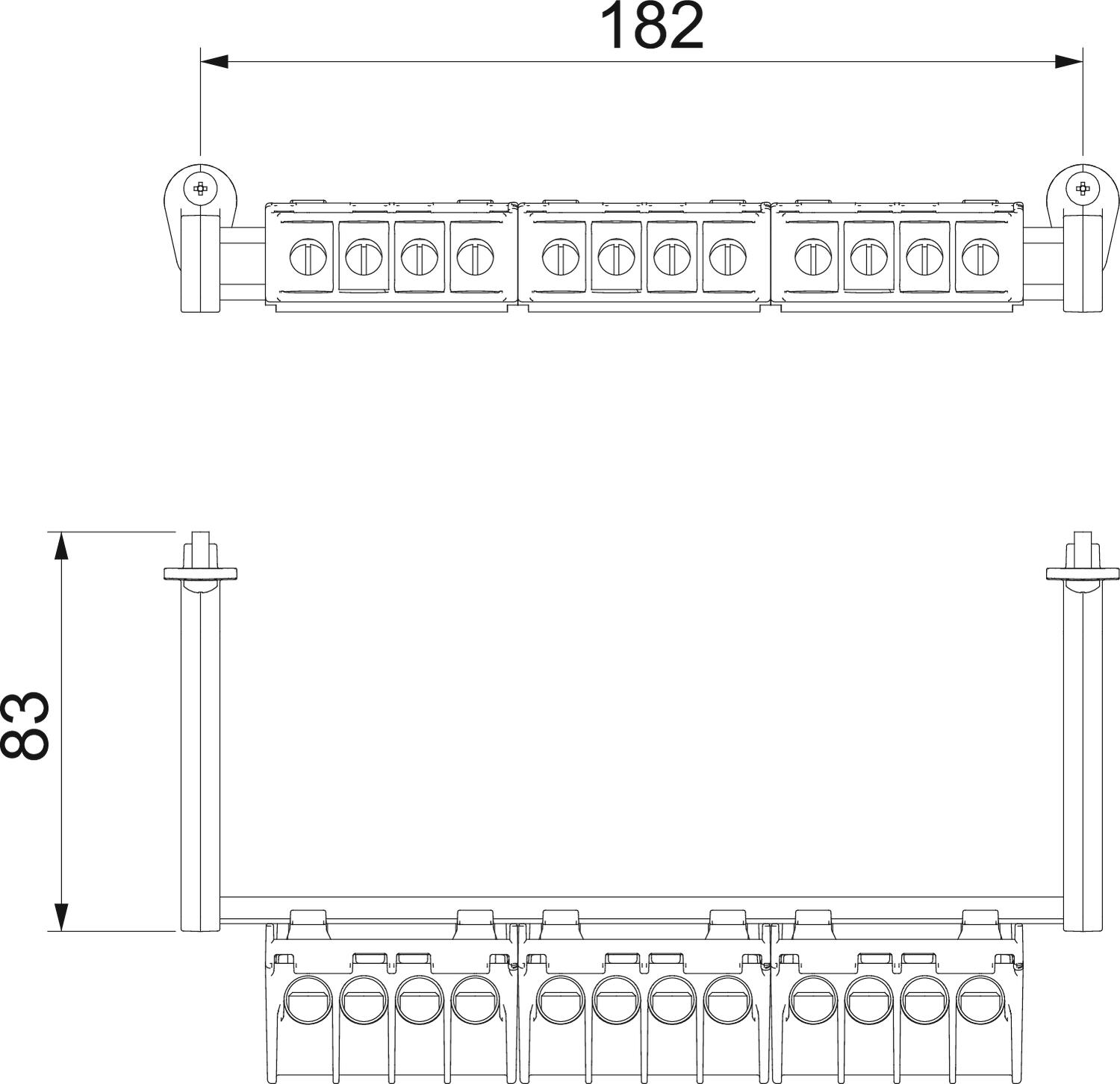

Length	182 mm
Nominal cross-section, max.	35 mm²
Nominal cross-section, min.	16 mm²

Nominal current	100 A
Nominal voltage	450 V
Number of screwless terminals per pole	4
Pole number	5

All types

All types

Types	Length	Nominal cross-section, min.	Nominal cross-section, max.	Nominal voltage	Item no.	Quantity	SSU
KL-X10 06-16	120 mm	6 mm²	16 mm²	450 V	2008931	piece	10 piece
KL-X16 06-16	170 mm	6 mm²	16 mm²	450 V	2008935	piece	10 piece
KL-X25 16-35	182 mm	16 mm²	35 mm²	450 V	2008939	piece	10 piece
