Terminal strip set with screw terminals for SDB 03 122 | 6 | 16 | 450
morepic-1 morepic-2

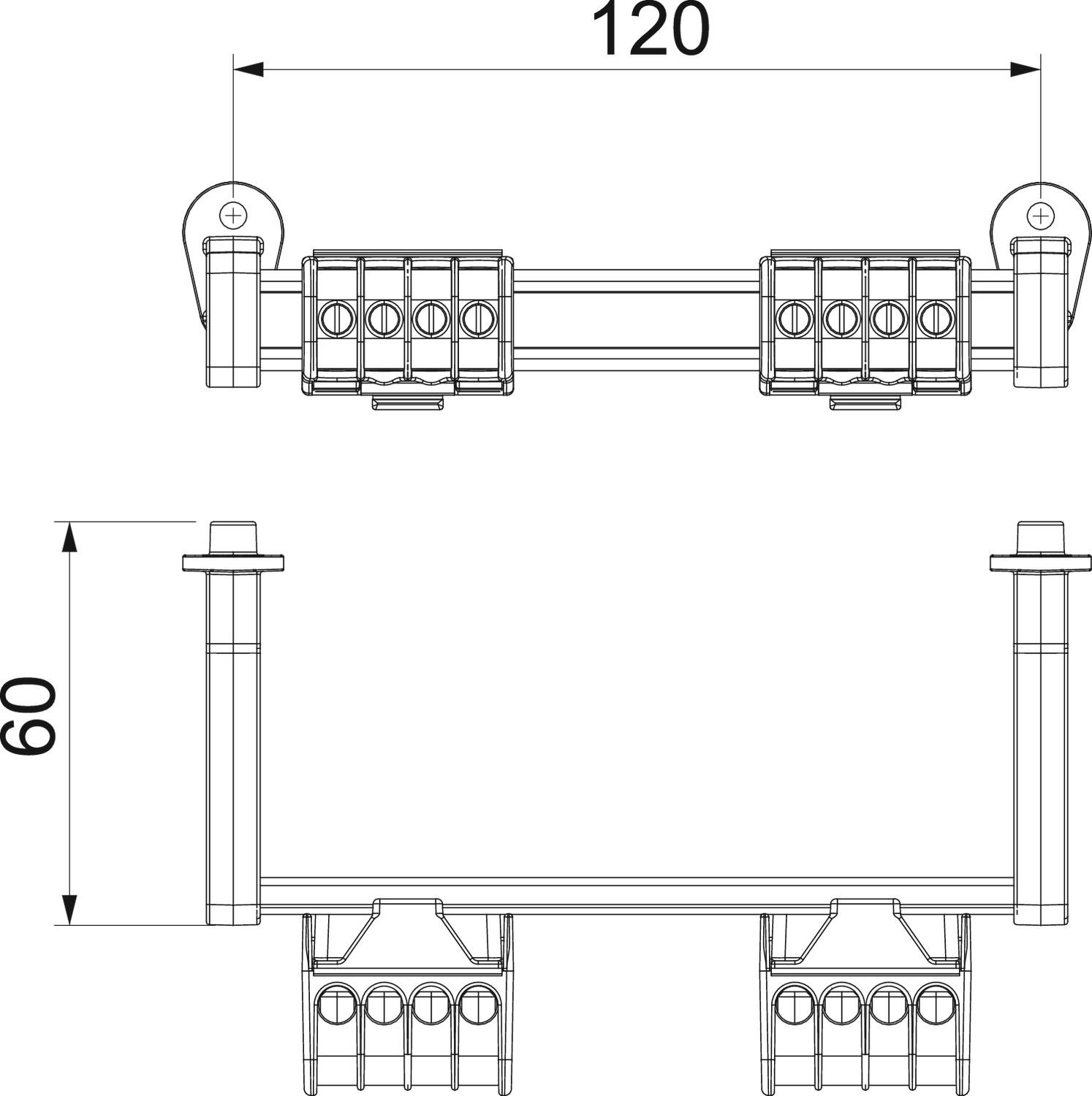

Terminal strip set with screw terminals for SDB 03

Item no. 2008880 | EAN 4012196465828

2008880 / KLS-SDB 03
122 mm
6 mm²
16 mm²
450 V
Product description
Product description
Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 03... type series.

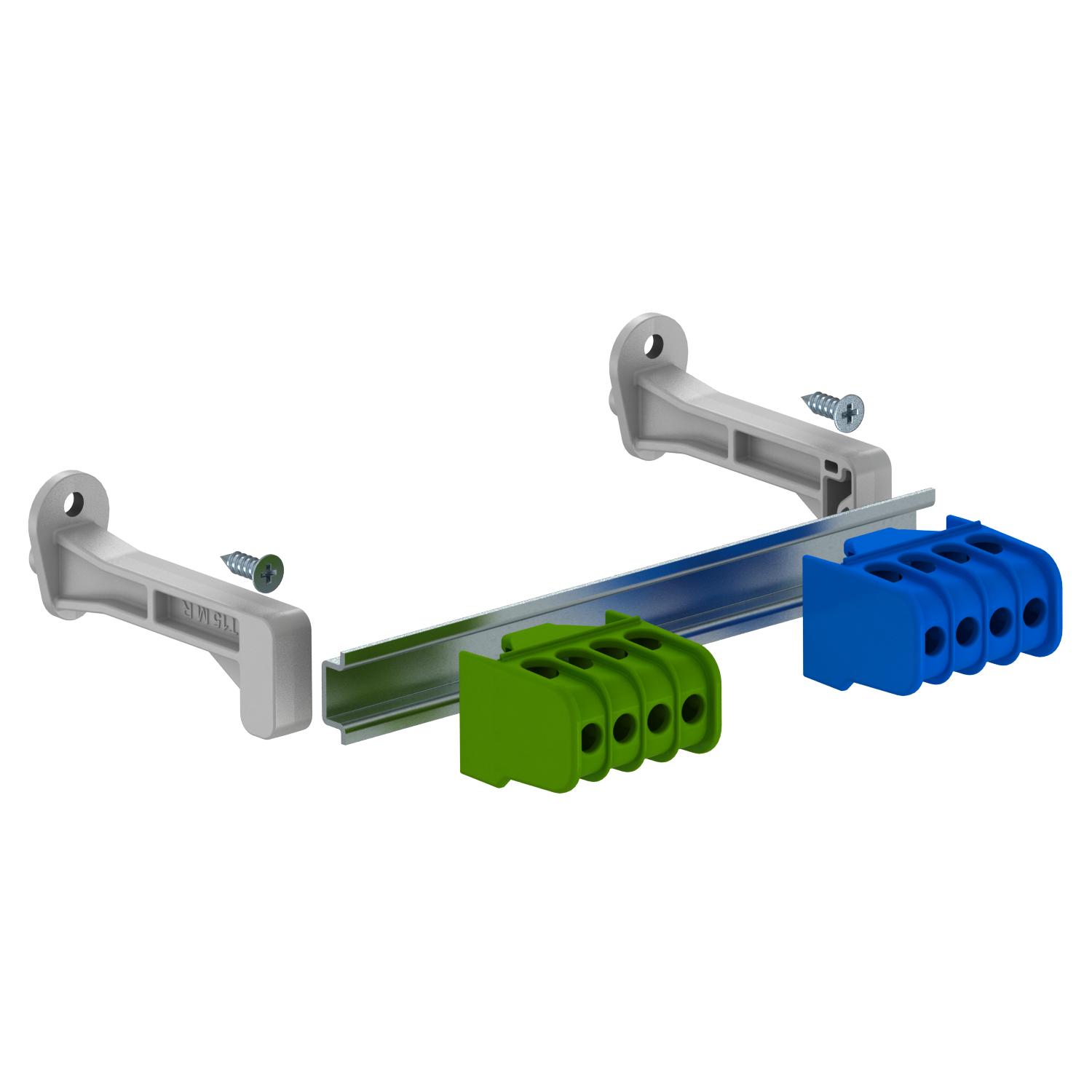

Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 82x15x4
Height 31 mm
Length 122 mm
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 6 mm²
Nominal current 100 A
Nominal voltage 450 V
Number of screwless terminals per pole 4
Width 20,5 mm
All types

All types

Types Length Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
KLS-SDB 03 122 mm 6 mm² 16 mm² 450 V 2008880
2 piece
