Terminal strip set with screw terminals for SDB 12

Item no. 2008892 | EAN 4012196465859

2008892 / KLS-SDB 12
184 mm
6 mm²
16 mm²
450 V
Product description

Product description

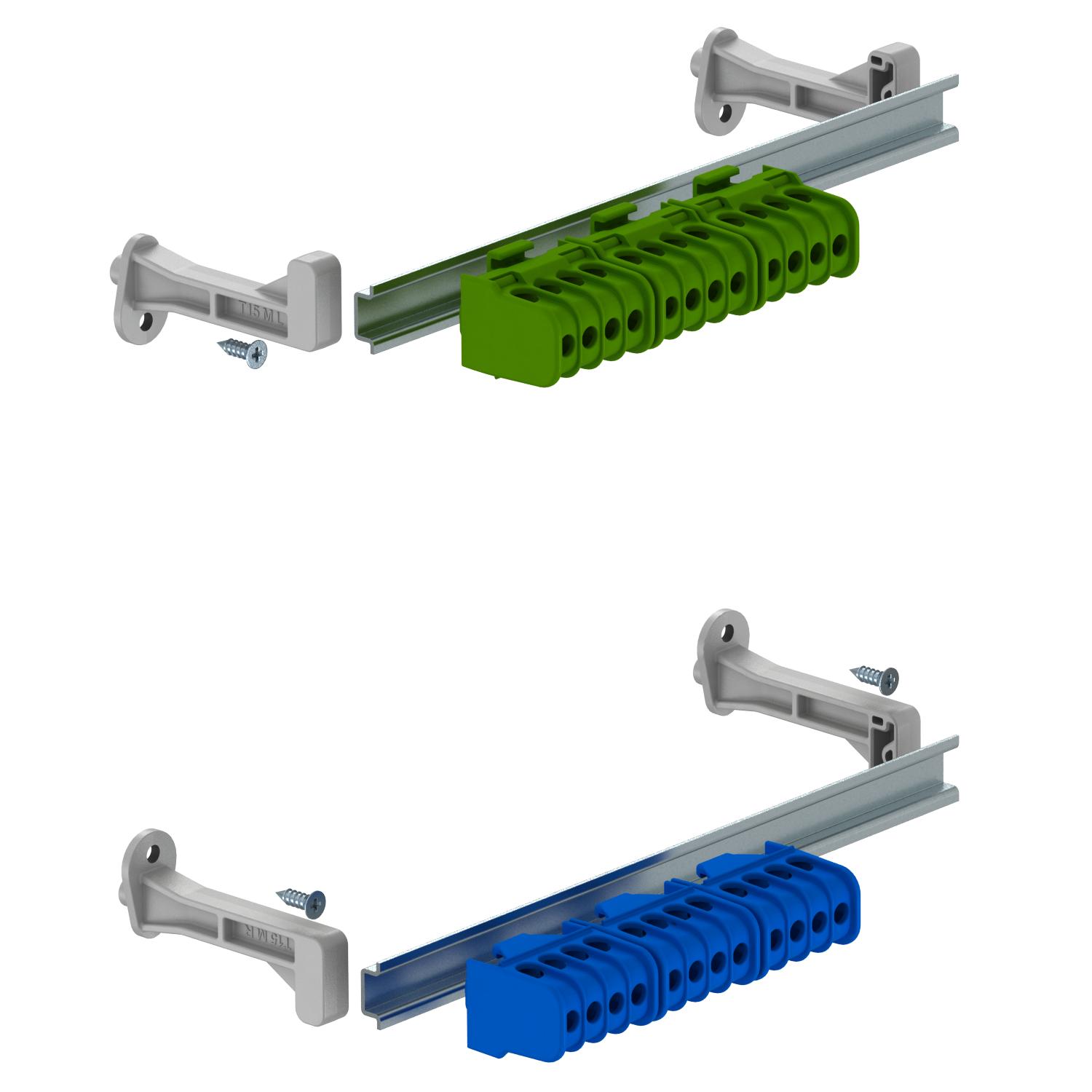

Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 12... type series.
Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

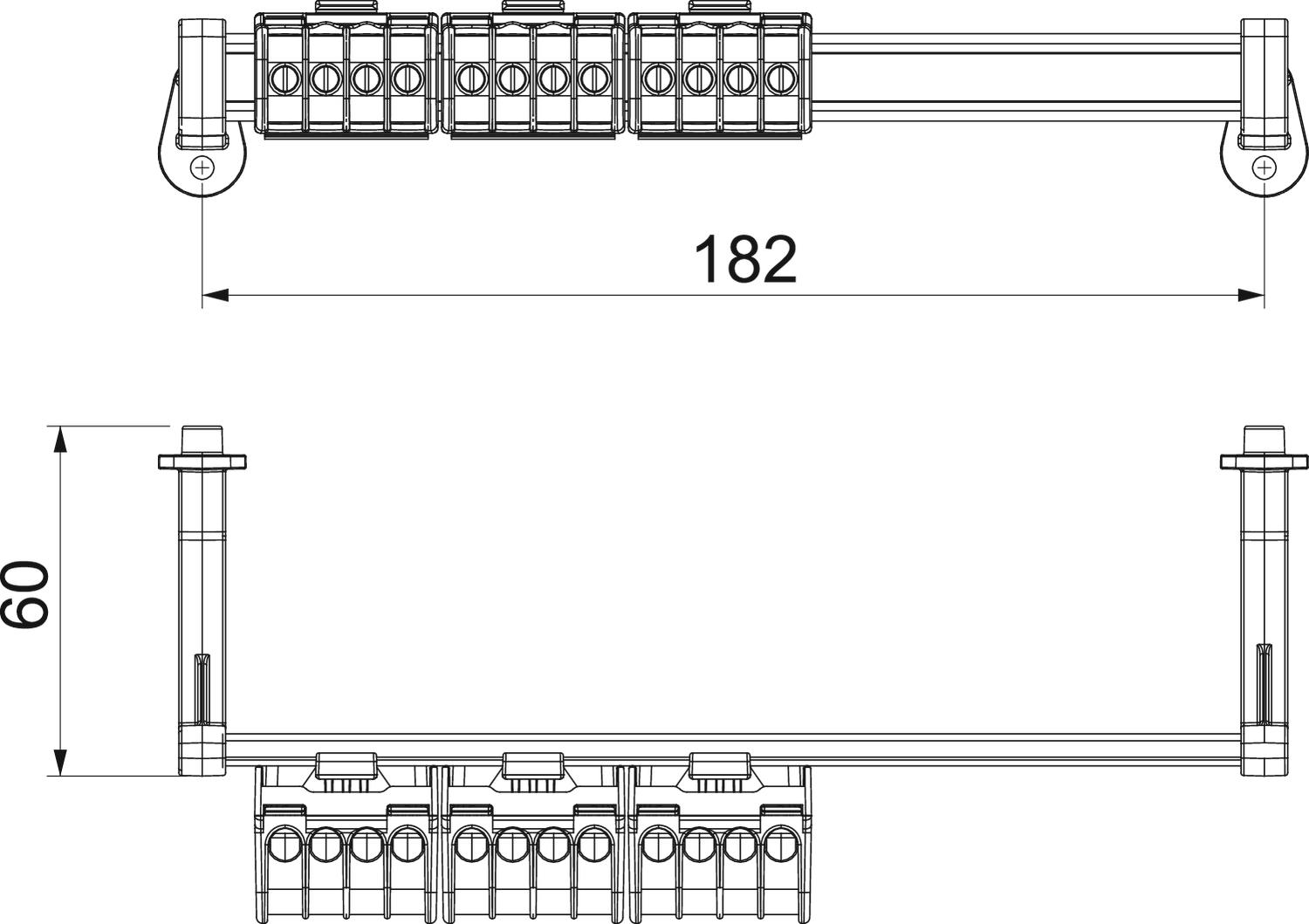

Dimension 184x15x4
Height 31 mm
Length 184 mm
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 6 mm²
Nominal current 100 A
Nominal voltage 450 V
Number of screwless terminals per pole 12
Width 20,5 mm
All types

All types

Types Length Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
KLS-SDB 12 184 mm 6 mm² 16 mm² 450 V 2008892
2 piece
