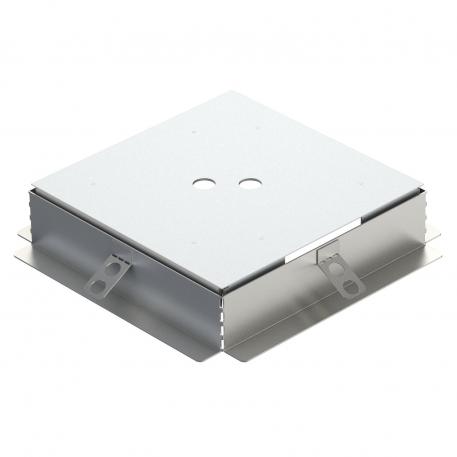

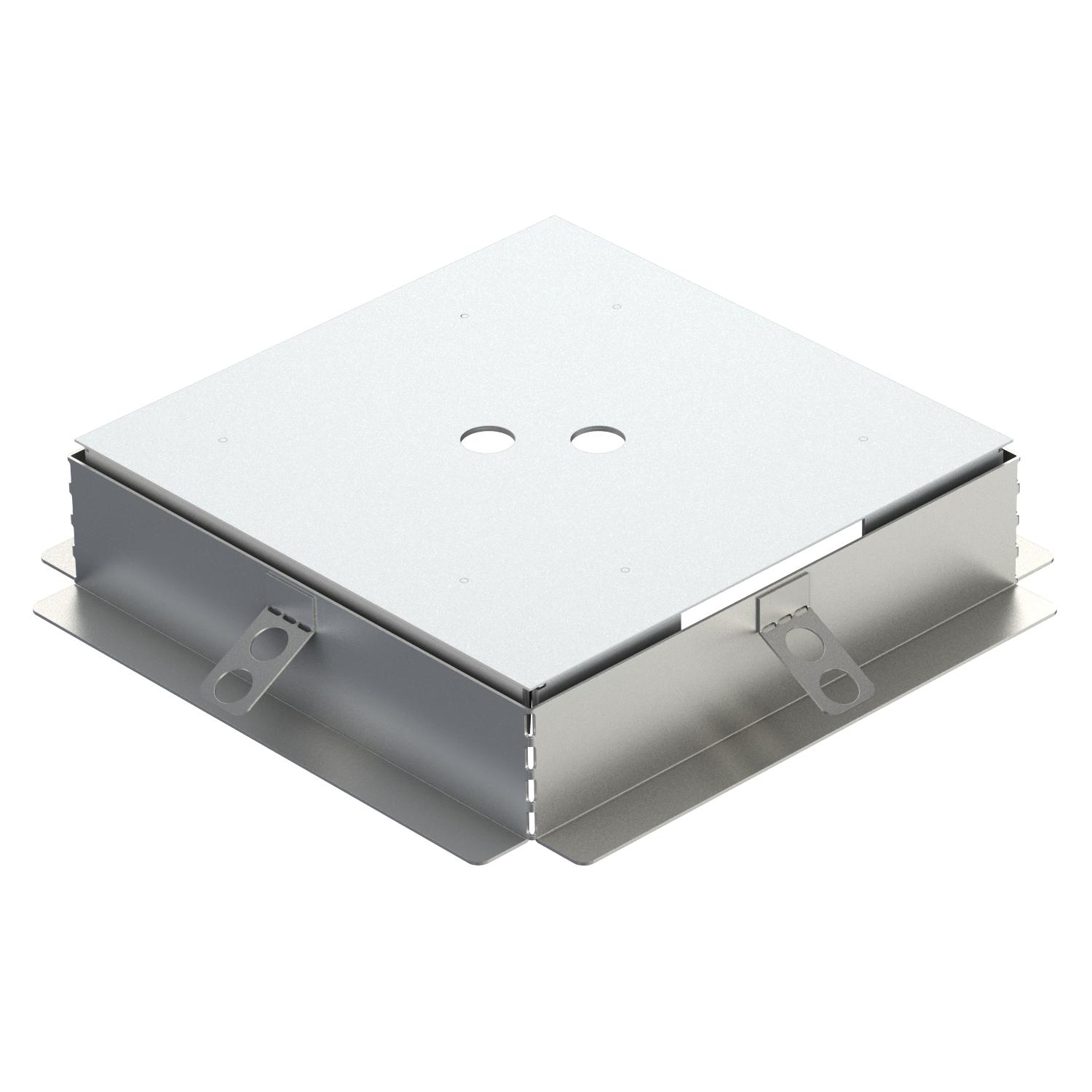

Terrazzo lined body for height-adjustable cassettes, nominal size 9

Item no. 7404372 | EAN 4012196332038

Product description
Product description
Lined body, suitable for polishing, for the direct and jointless installation of height-adjustable cassettes, nominal size 9, into surface-finished screeds/terrazzo floorings.

The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 9, closing the gaps between underfloor box and cassette frame.

The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

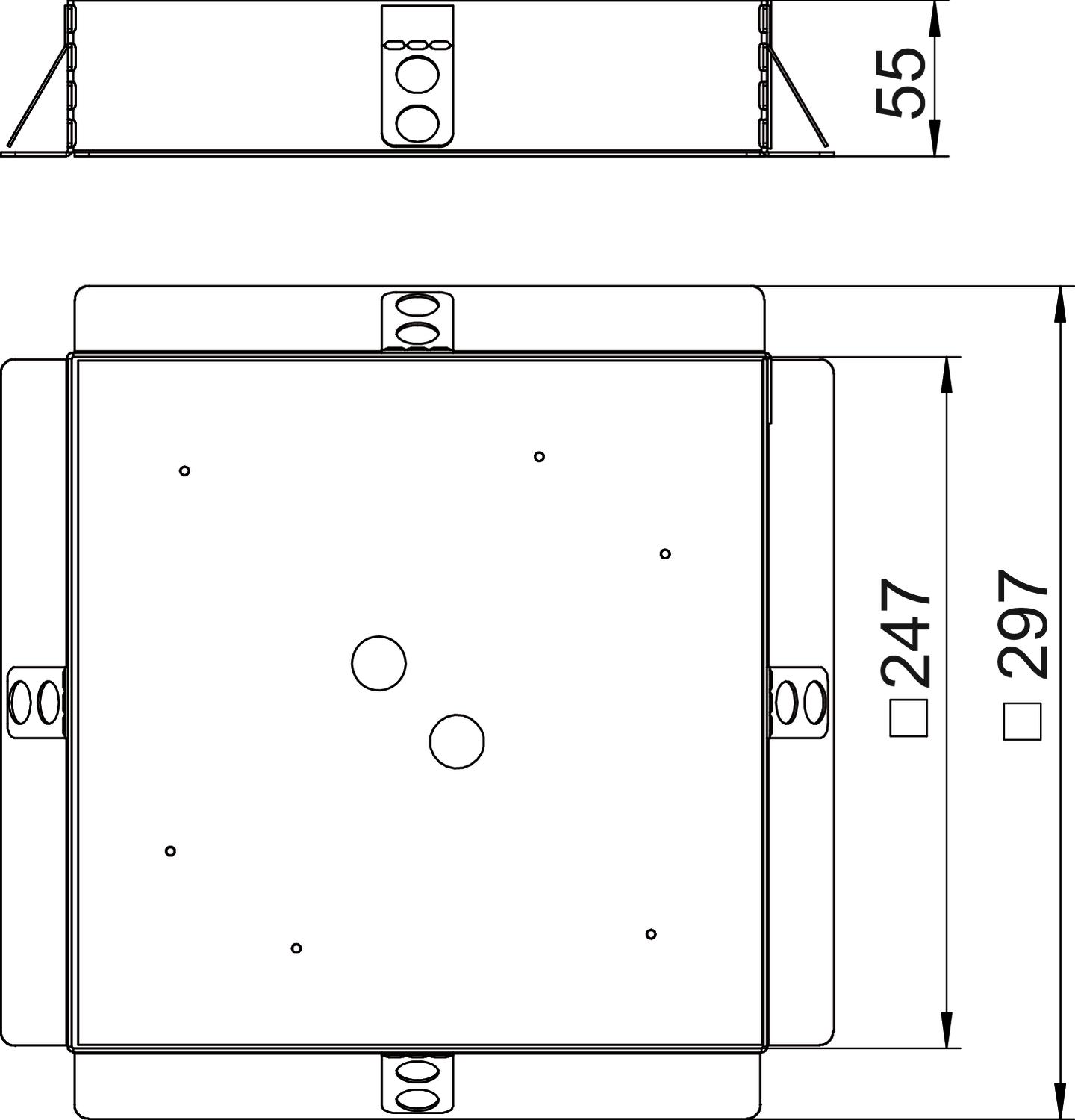

Dimensions

Dimension a 247 mm
Dimension A 297 mm
Dimension h 55 mm
Floor height, max. 200 mm
Floor height, min. 130 mm
Height 55 mm
Length 247 mm
Material Steel
Nominal size for device installation units 9
Surface Strip galvanized
Width 247 mm
All types

All types

Types Item no. Quantity SSU
SK RK9 7404372
2 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
UGD350-3 GES 9 for rectangular installation units, for screed height 70−125 mm UGD350-3 GES 9 for rectangular installation units, for screed height 70−125 mm UGD 350-3 9 7410112
3 piece
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette TUK2 GV 7428140
1 piece
