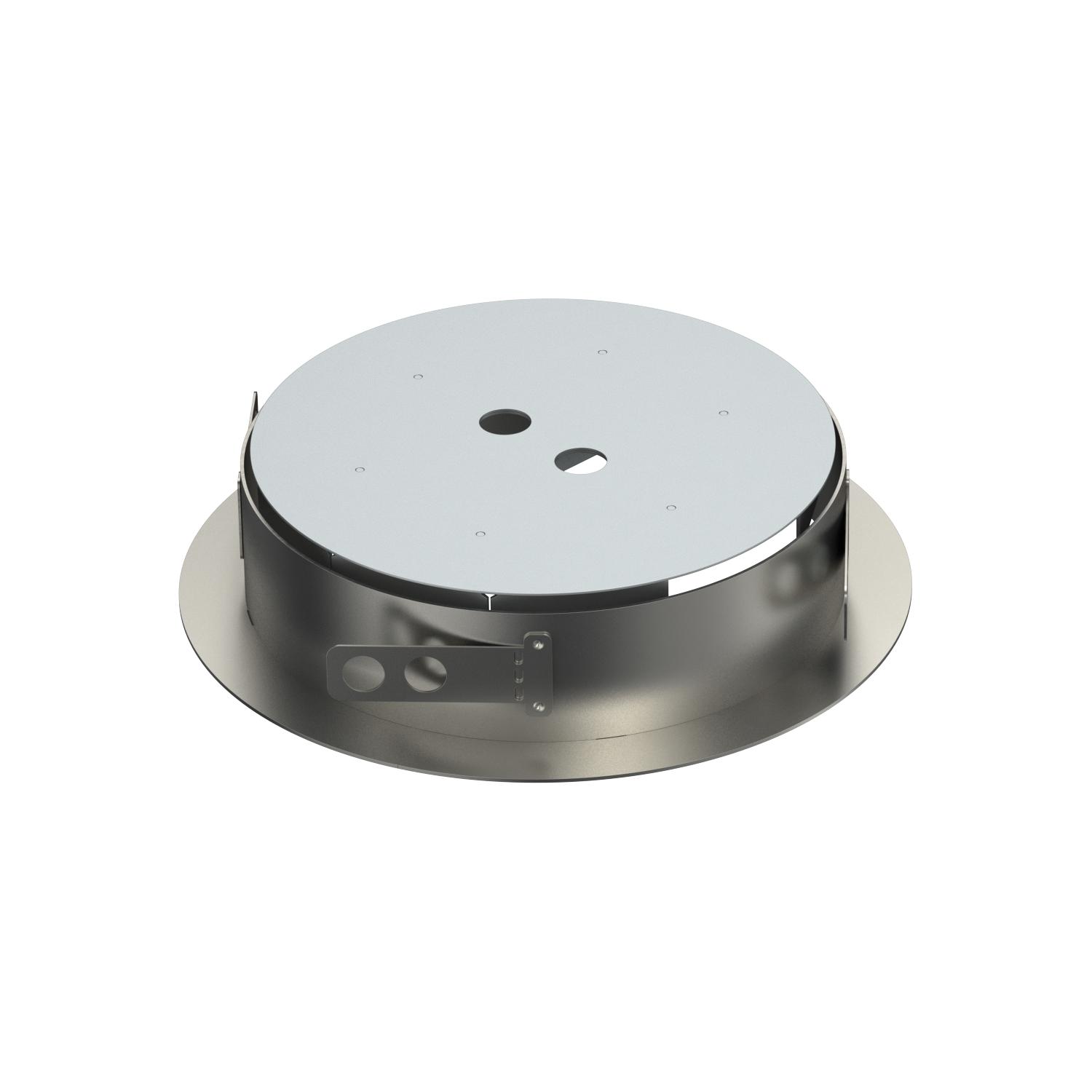

Terrazzo lined body for height-adjustable cassettes, nominal size R4
Item no. 7404382 | EAN 4012196633944
- Product description
-
Product description
Lined body, suitable for polishing, for the direct and jointless installation of round height-adjustable cassettes, nominal size 4, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 4, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
- Technical data
-
Technical data

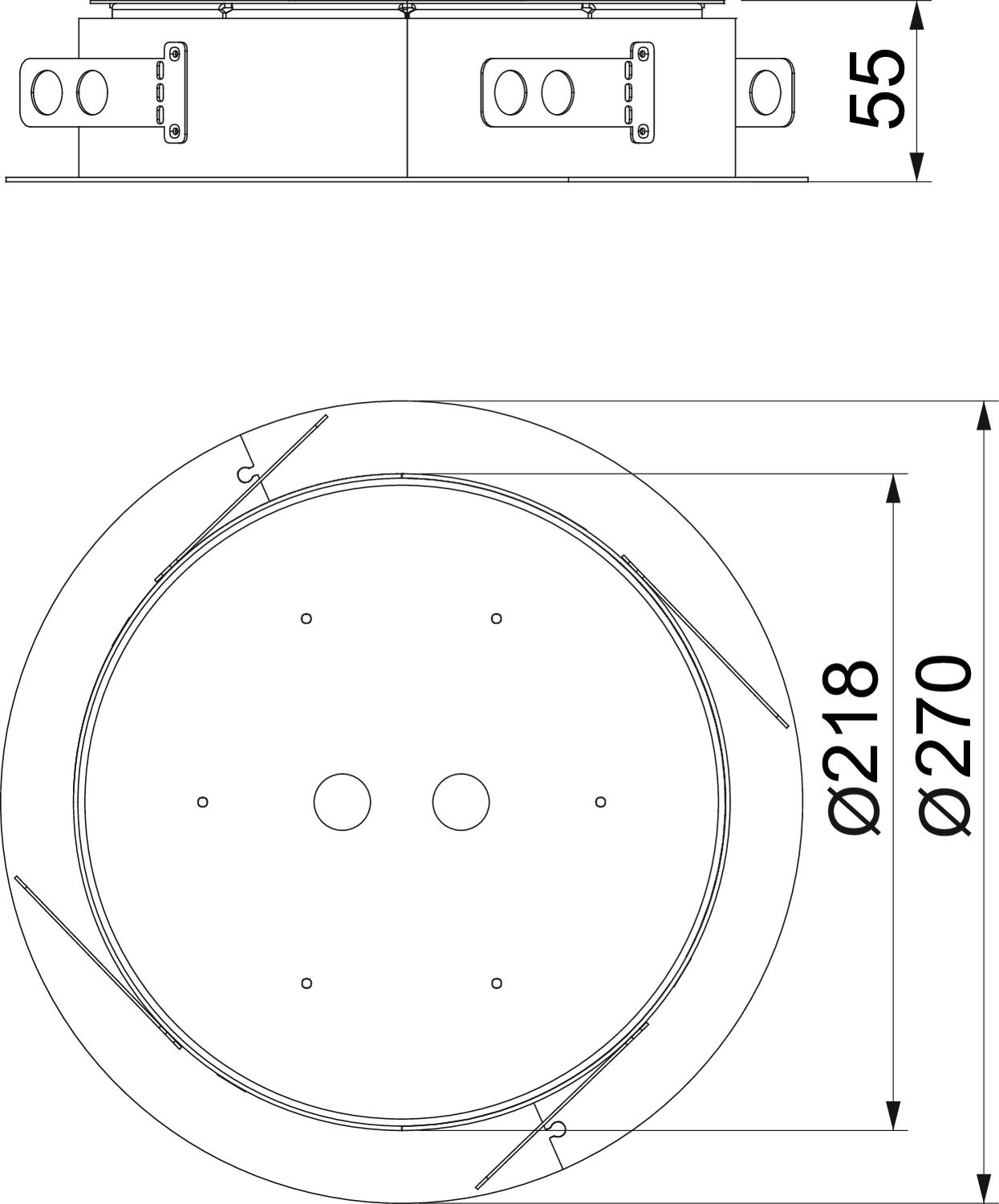

Dimension Ø270x55 Dimension a 218 mm Dimension A 270 mm Dimension h 55 mm Floor height, max. 200 mm Floor height, min. 130 mm Height 55 mm Material Steel Nominal size for device installation units R4 Surface Strip galvanized - All types
- Downloads
-
Data sheet SK RK4R / 7404382 , 0.29MB , pdfMounting instructions Mounting instructions, SK RK, SK RKR , 0.04MB , pdf
