Threaded rod G 1000

Item no. 3141209 | EAN 4012195253396

1000 mm
8.8
Product description

Product description

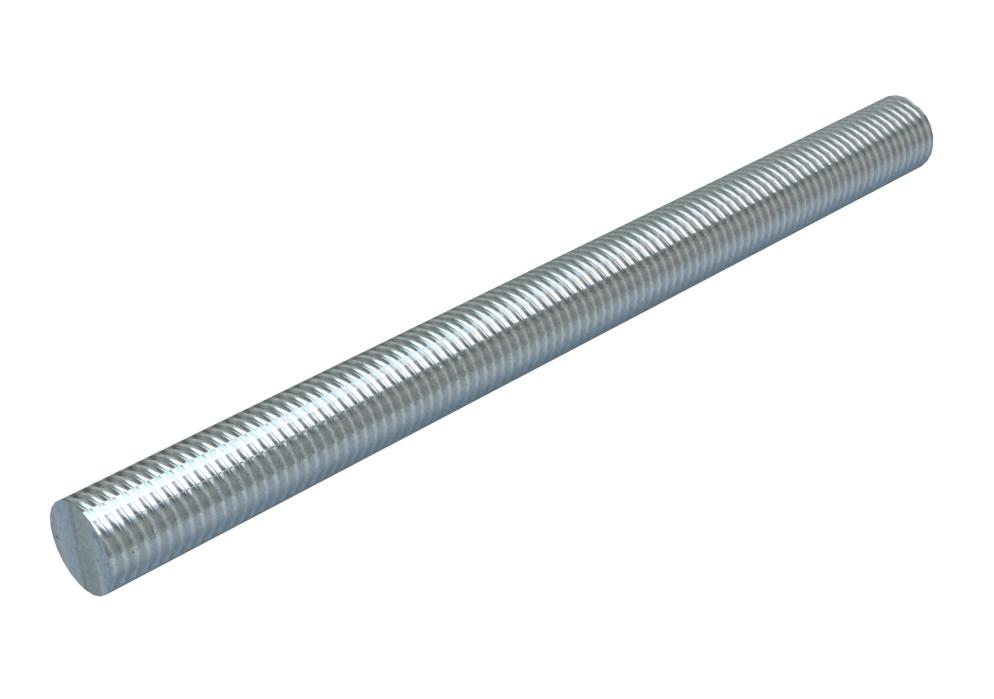

Threaded rod to DIN 976.
Technical data

Technical data

Breaking load 23,2 kN

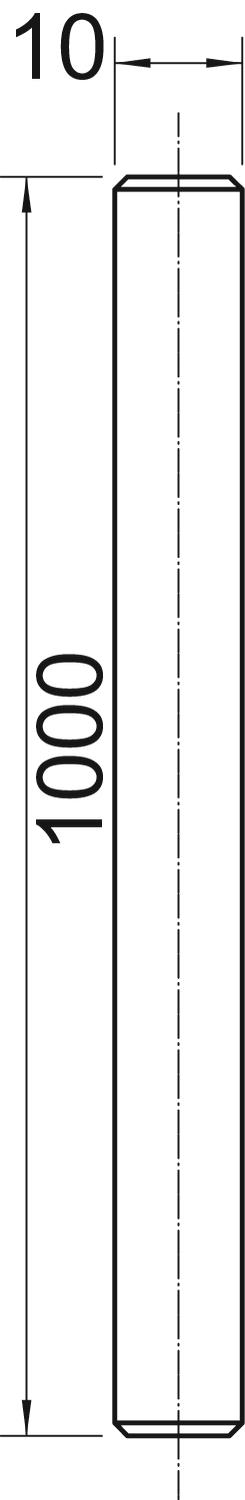

Dimension M10x1000mm
Dimension d 10 mm
Dimension L 1000 mm
Left thread no
Length 1000 mm
Material Steel
Surface Electrogalvanized
Thread M10
Thread metric 10
Threaded rod resistance class 8.8
All types

All types

Types Length Threaded rod resistance class Thread Item no. Quantity SSU
TR M6 1M G 1000 mm 8.8 M6 3141047
10 piece
TR M8 1M G 1000 mm 8.8 M8 3141128
10 piece
TR M10 1M G 1000 mm 8.8 M10 3141209
10 piece
TR M12 1M G 1000 mm 8.8 M12 3141306
10 piece
