- Product description
-

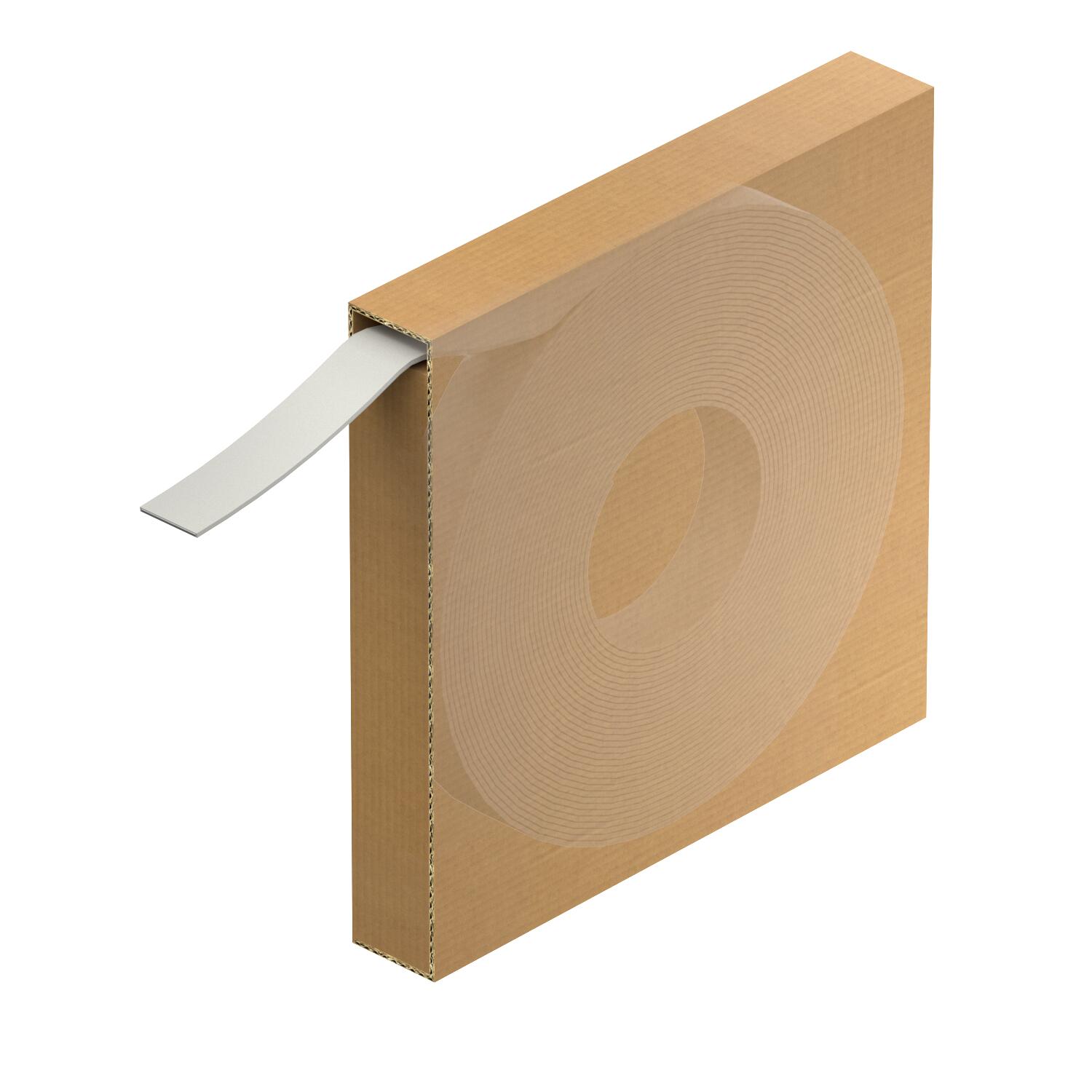

Product descriptionTightening strap made of strip-galvanised steel with plastic jacketing to fasten cables on cable support systems.
- Technical data
-
Technical data

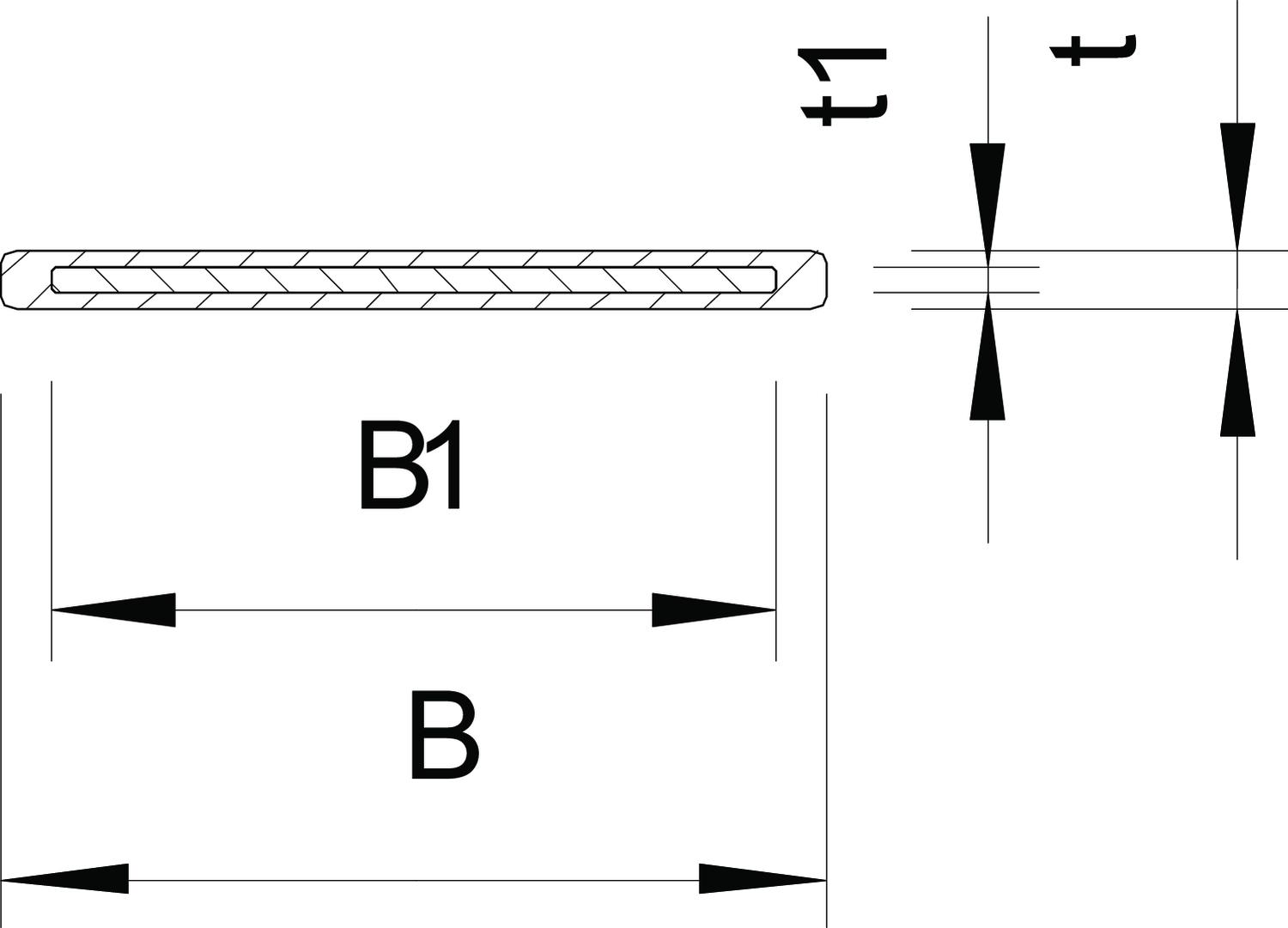

Colour Stone grey; RAL 7030 Dimension 15,0 x 0,5 Dimension 15x0,5 Dimension B 17 mm Dimension B1 15 mm Dimension t 1,2 mm Dimension t1 (mm) 0,5 Material Steel minimum breaking load 2,5 kN Surface Strip galvanized / plastic coated Version for Smooth - All types
- Downloads
-
Data sheet SBR 15 FSK / 6490280 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SBR 15 FSK / 6490280 , 0.10MB , pdfREACH Declaration of conformity SBR 15 FSK / 6490280 , 0.12MB , pdfRoHS Declaration of conformity SBR 15 FSK / 6490280 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
