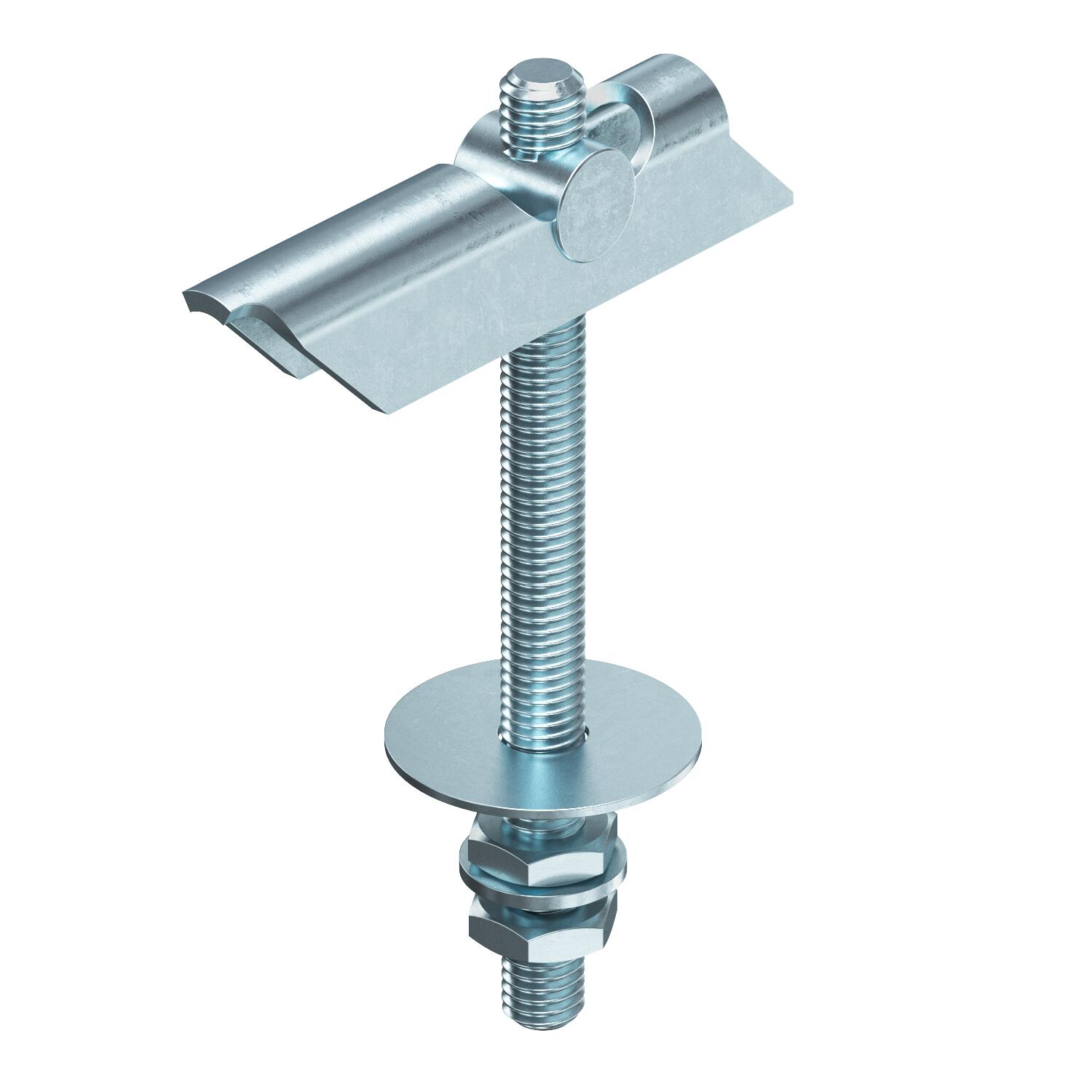

Tilting anchor

Item no. 3482707 | EAN 4012195239475

100 mm
2.4 kN
Product description

Product description

Including nut and large washer.
The universal heavy-duty fastening for stressed concrete, hollow steel profiles, metal sheets and plates.
Use: heating, ventilation and air conditioning technology, cooling systems, sprinkler systems, pipes, cable tracks, etc.
* Dependent on the thickness of the ceiling profile.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 2,4 kN
Dimension M8x100mm
Dimension L 100 mm
Drill hole 22 mm
Drill hole diameter, min. 22 mm
Length 100 mm
Material Steel
Minimum cavity depth 75 mm
Surface Electrogalvanized
Thread M8
Thread type Metric
Version for With threaded shaft
With washer yes
All types

All types

Types Length Drill hole diameter, min. Breaking load Thread Item no. Quantity SSU
KD 8 100 100 mm 22 mm 2.4 kN M8 3482707
25 piece
KD 10 100 100 mm 25 mm 2.4 kN M10 3482758
25 piece
