Tilting anchor 55 | 13 | 0.25 | M4
morepic-1 morepic-2

Tilting anchor

Item no. 3482138 | EAN 4012195310938

Product description

Product description

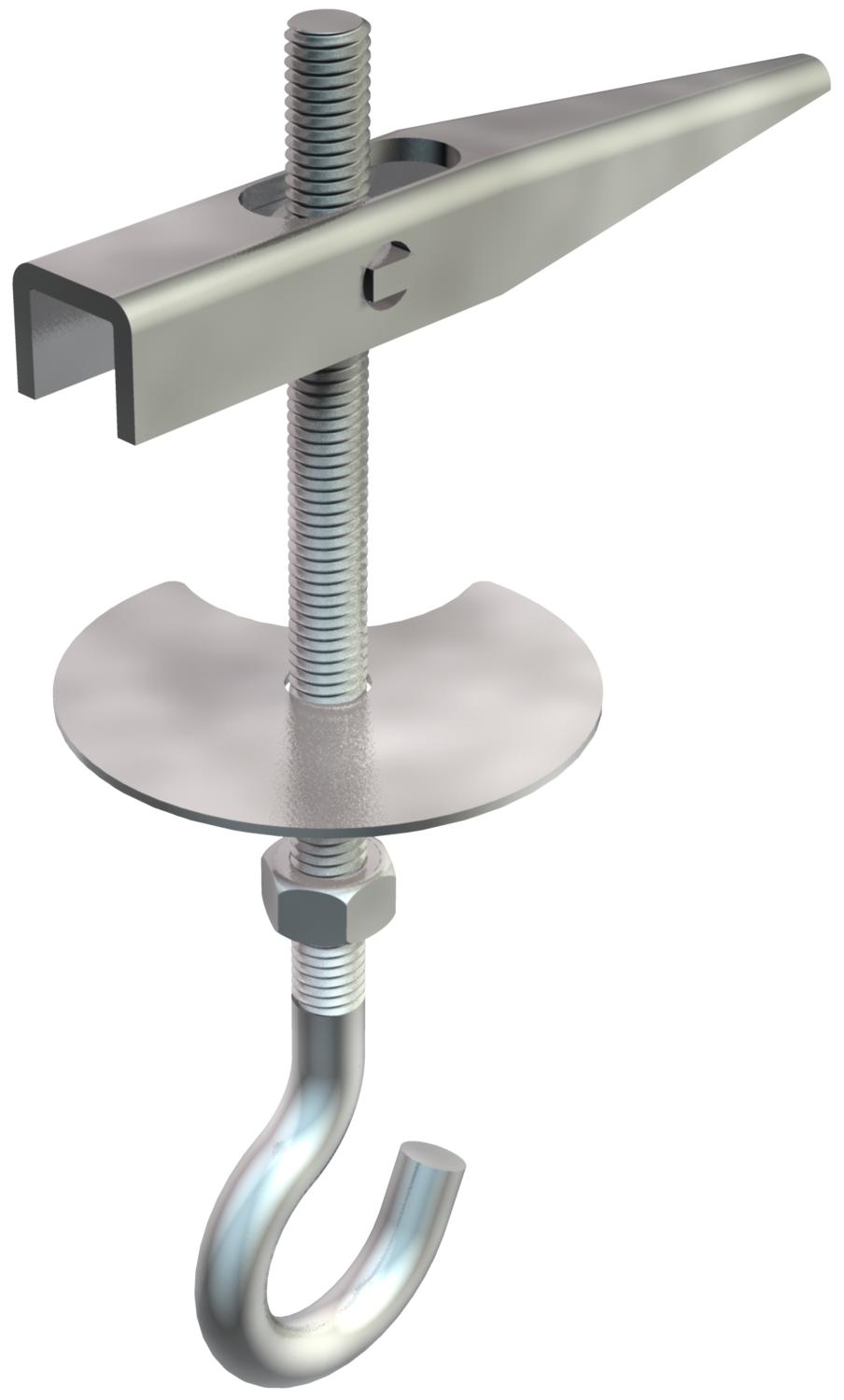

One washer and one hexagonal nut, with ceiling hook.
Note: Reckon with 5x safety for luminaire suspensions.
  • Communautés Européennes, EC declaration of conformity according to EC directives

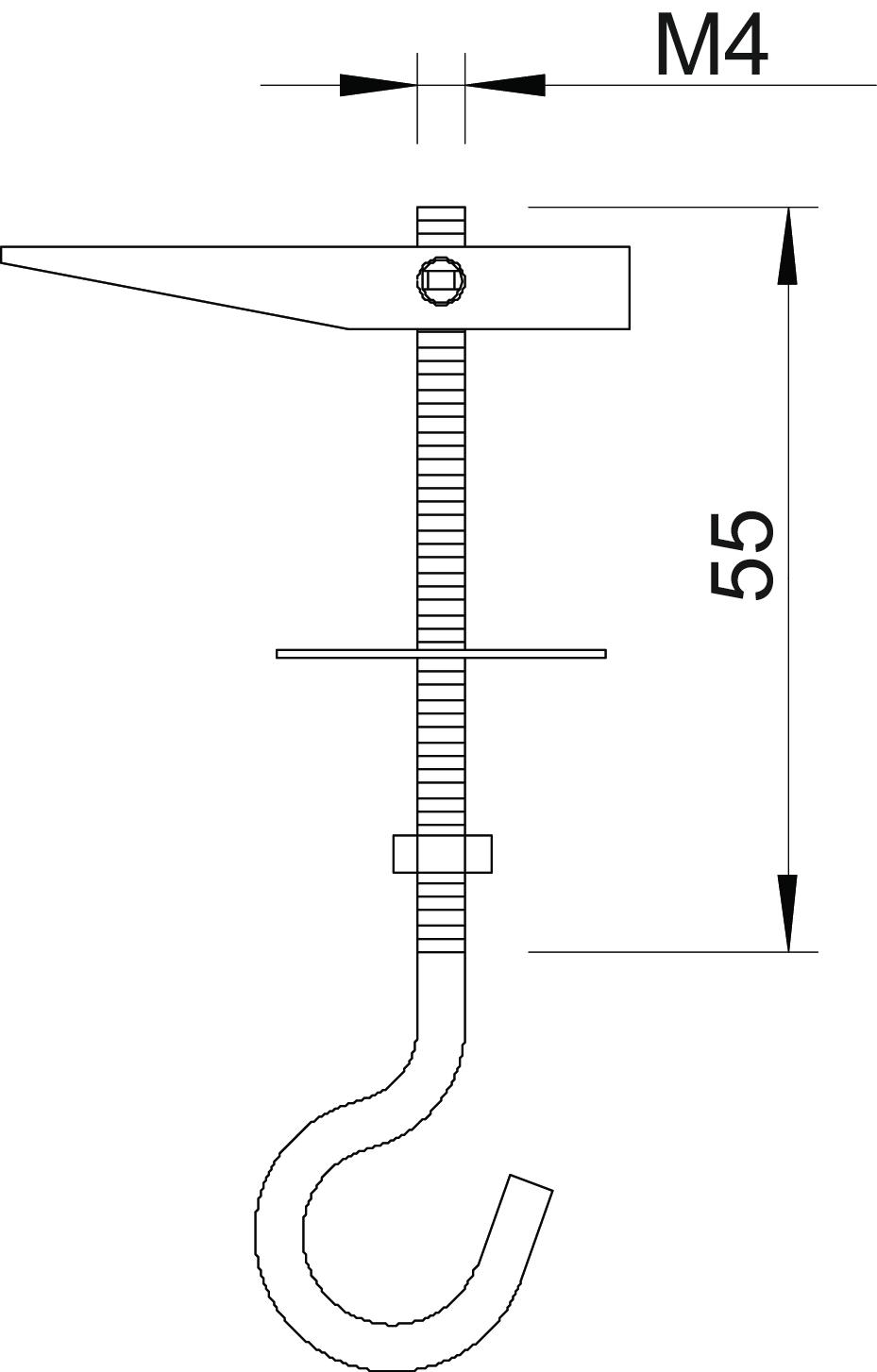

Technical data

Technical data

Breaking load 0,25 kN
Dimension M4x55mm
Drill hole 13 mm
Drill hole diameter, min. 13 mm
hook diameter 14 mm
Material Steel
Surface Electrogalvanized
Thread M4
Thread type Metric
Version for With ceiling hook
With washer yes

Dimensions

Dimension L 55 mm
Length 55 mm
All types

All types

Types Length Drill hole diameter, min. Breaking load Thread Item no. Quantity SSU
454 M6x100 G 100 mm 16 mm 0.7 kN M6 3482030
25 piece
455 M5x65 G 65 mm 13 mm 0.4 kN M5 3482057
50 piece
455 M5x100 G 100 mm 13 mm 0.4 kN M5 3482073
50 piece
457 M4x55 G 55 mm 13 mm 0.25 kN M4 3482138
50 piece
