TP profile A2 3000 | 2
morepic-1 morepic-2

TP profile A2

Item no. 6366094 | EAN 4012197274504

6366094 / TPSG 3000 A2
3000 mm
2 mm
Product description

Product description

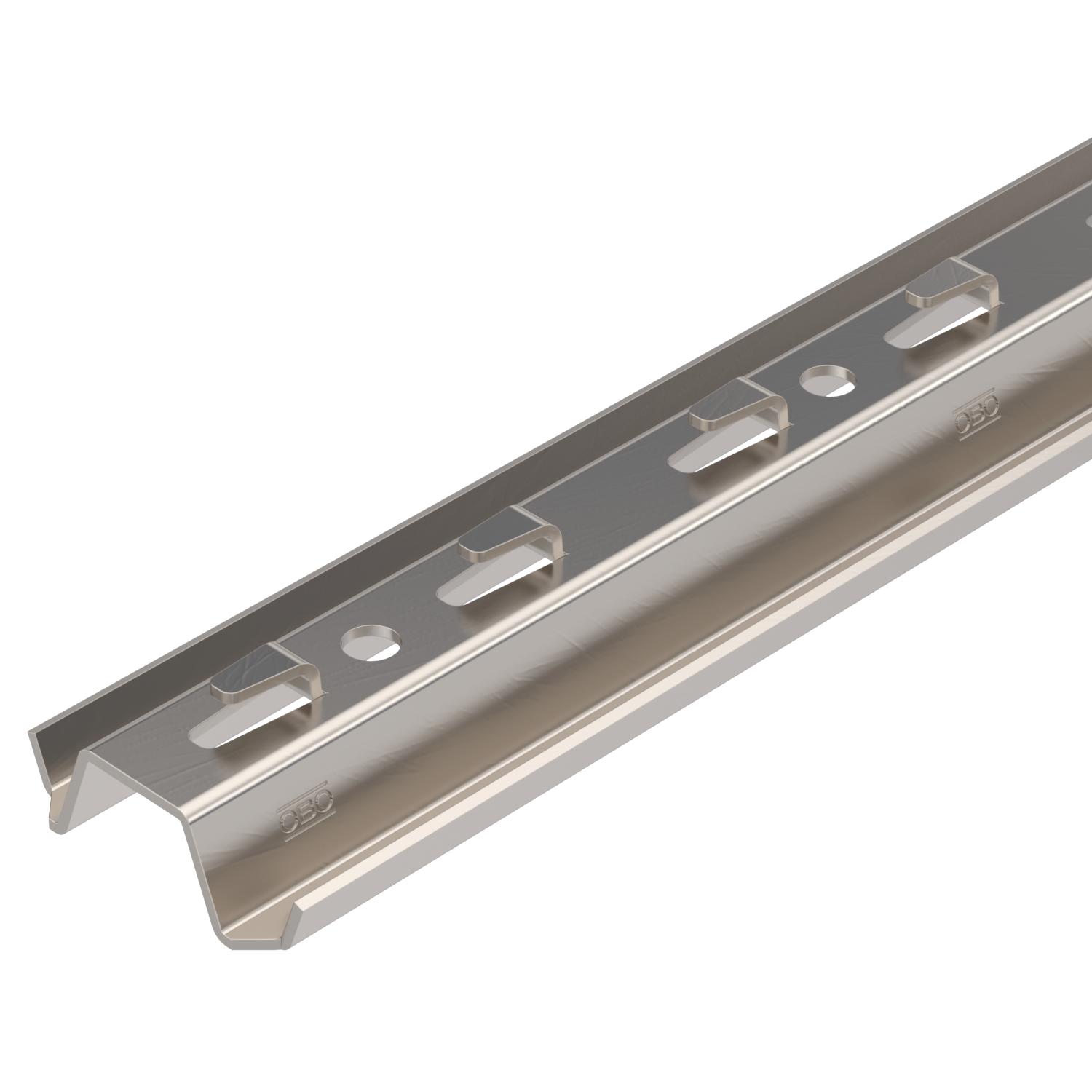

TP profile with clamping lugs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • TP profile and suspended support and bracket
Technical data

Technical data

Breakable no
Dimension 3000mm
Maintain electrical functions no
Material Stainless steel
Plate thickness 2 mm
Profile shape Flat profile
Surface Bright, treated
Type of perforation Without
Version for Single profile
With toothing no

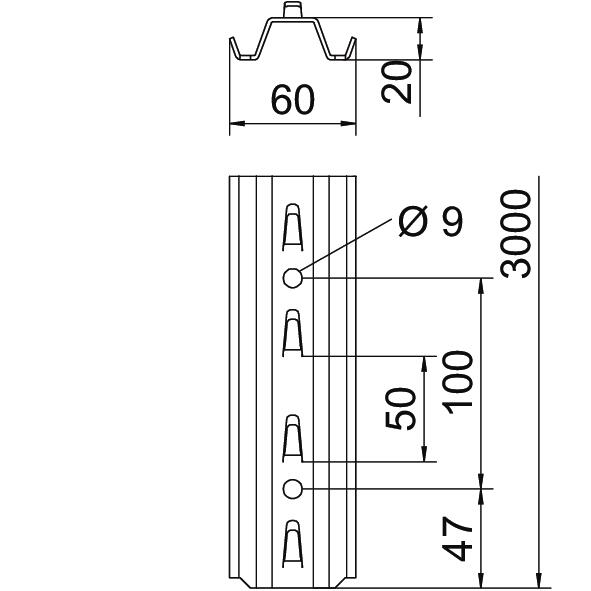

Dimensions

Height 20 mm
Length 3000 mm
Width 60 mm
All types

All types

Types Length Plate thickness Item no. Quantity SSU
TPSG 3000 A2 3000 mm 2 mm 6366094
1 piece
Downloads

Download
Download

Declaration of conformity TPSG 3000 A2 / 6366094 , 0.17MB , pdf
Download
REACH Declaration of conformity TPSG 3000 A2 / 6366094 , 0.12MB , pdf
Download
RoHS Declaration of conformity TPSG 3000 A2 / 6366094 , 0.13MB , pdf
Download

Download

Download

TPSG 3000 A2 / 6366094
