TP profile FS

Item no. / Types

Length

Plate thickness	2 mm

Product description

Product description

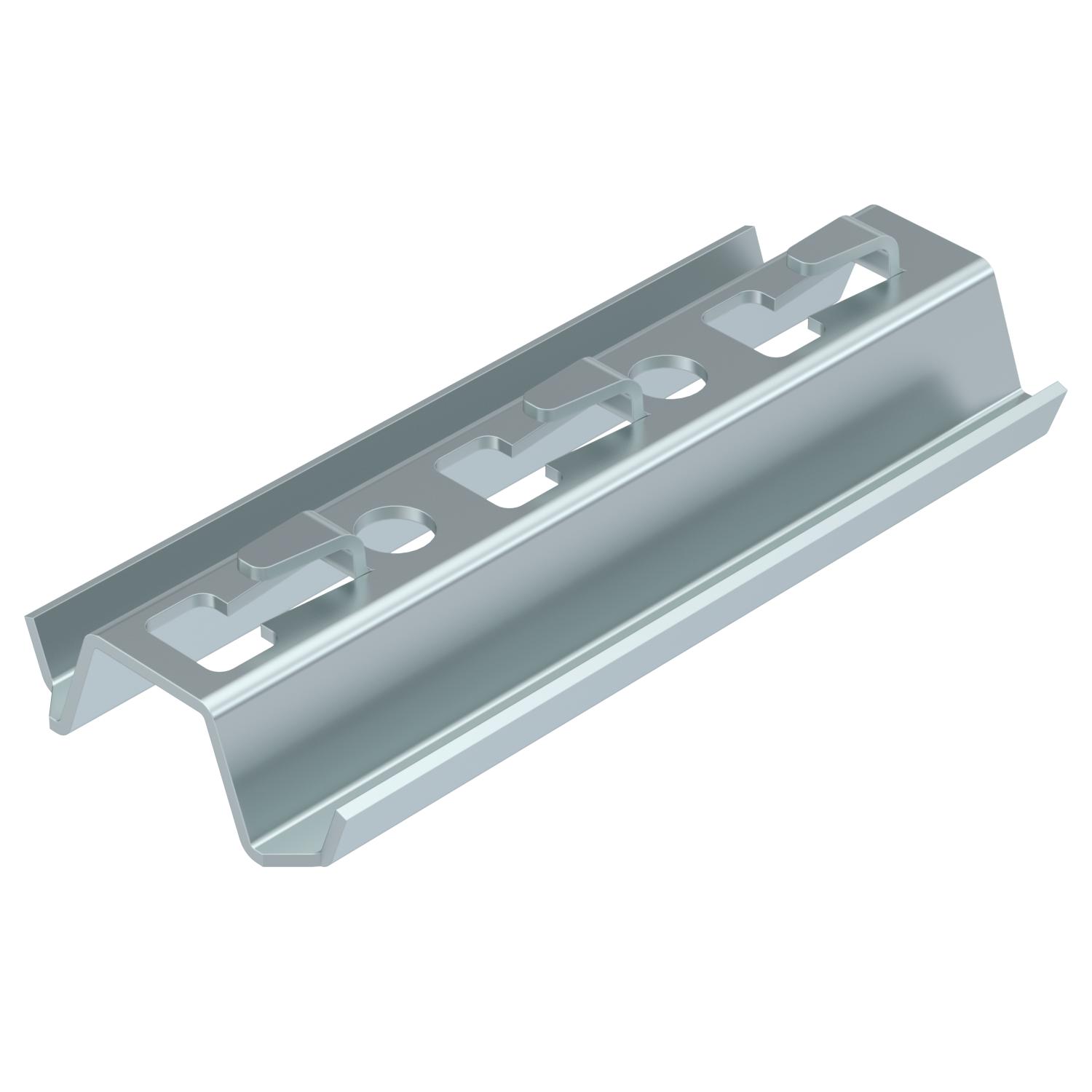

TP profile with clamping lugs.

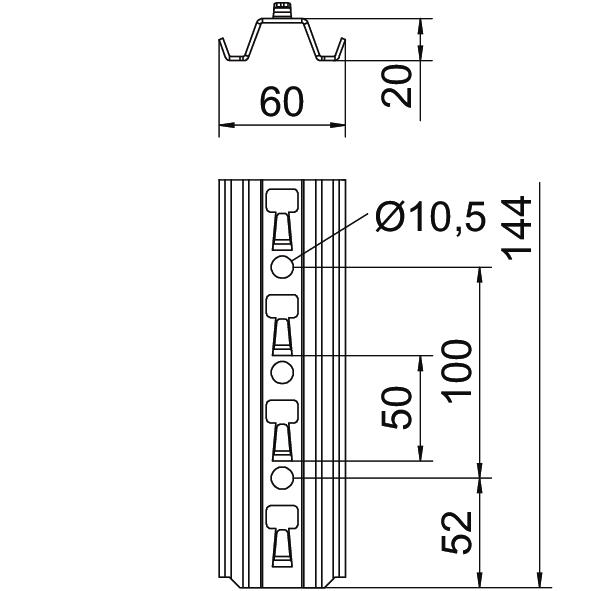

Technical data

Breakable	no
Dimension	150mm
Maintain electrical functions	no
Material	Steel
Plate thickness	2 mm

Height	20 mm
Length	150 mm

Width	60 mm

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
TPSG 3000 FS	3000 mm	2 mm	6366090	piece	1 piece
TPSG 150L FS	150 mm	2 mm	6366533	piece	1 piece
TPSG 200L FS	200 mm	2 mm	6366536	piece	1 piece
TPSG 250L FS	250 mm	2 mm	6366539	piece	1 piece
TPSG 300L FS	300 mm	2 mm	6366542	piece	1 piece
TPSG 400L FS	400 mm	2 mm	6366545	piece	1 piece
TPSG 500L FS	500 mm	2 mm	6366548	piece	1 piece
TPSG 600L FS	600 mm	2 mm	6366551	piece	1 piece
TPSG 700L FS	700 mm	2 mm	6366554	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
End cap	TPS KS OR	6364625	piece	10 piece

Downloads

Data sheet TPSG 150L FS / 6366533 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity TPSG 150L FS / 6366533 , 0.15MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf
