Trapezoidal fastening A2
Item no. 6357524 | EAN 4012196859078
- Product description
-

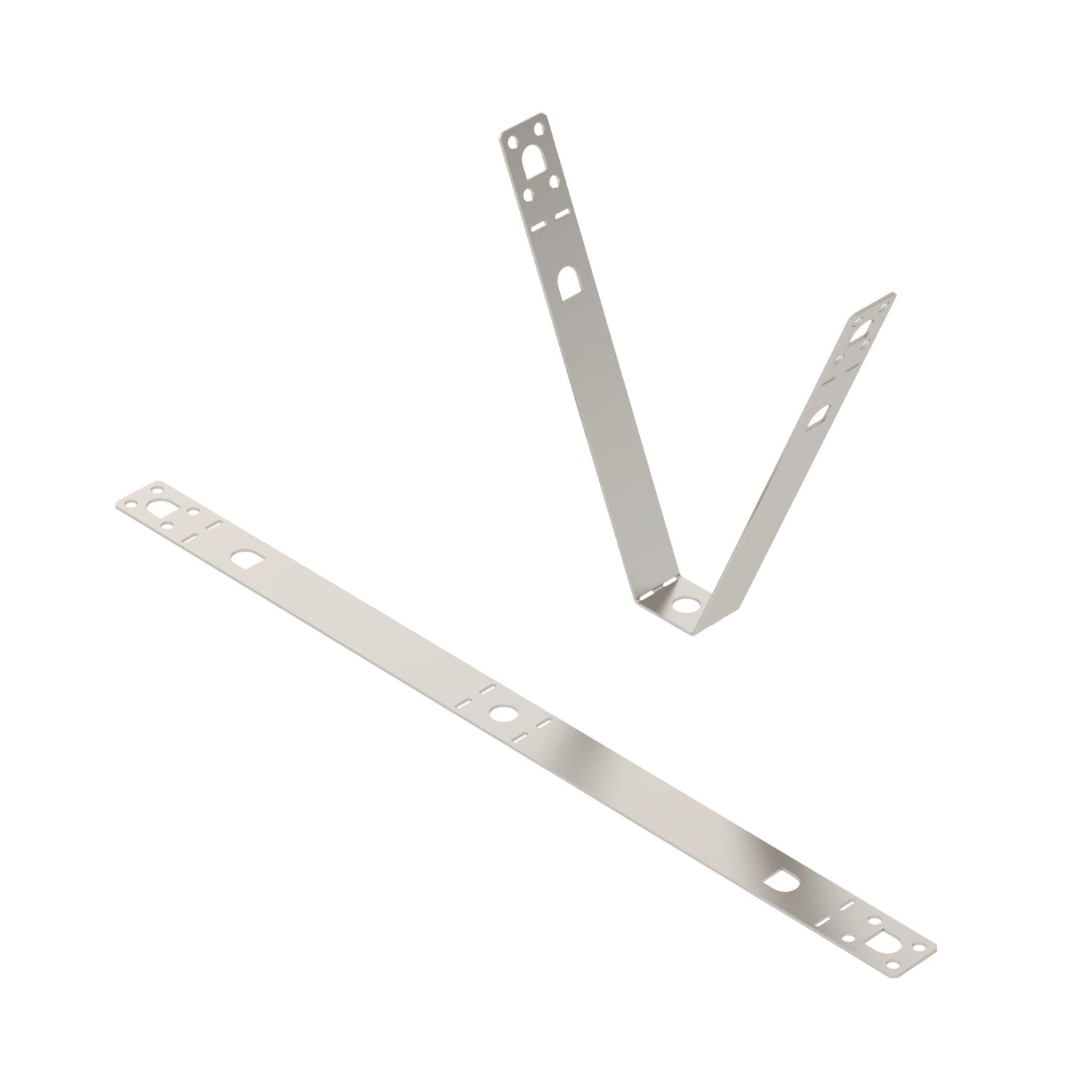

Product descriptionTrapezoidal fastening for suspending cable support systems from standard trapezoidal ceilings. Trapezoidal profile width up to 165 mm. Mounting with bolt, type TPB R, or hexagonal bolt, type SKS 10x110. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

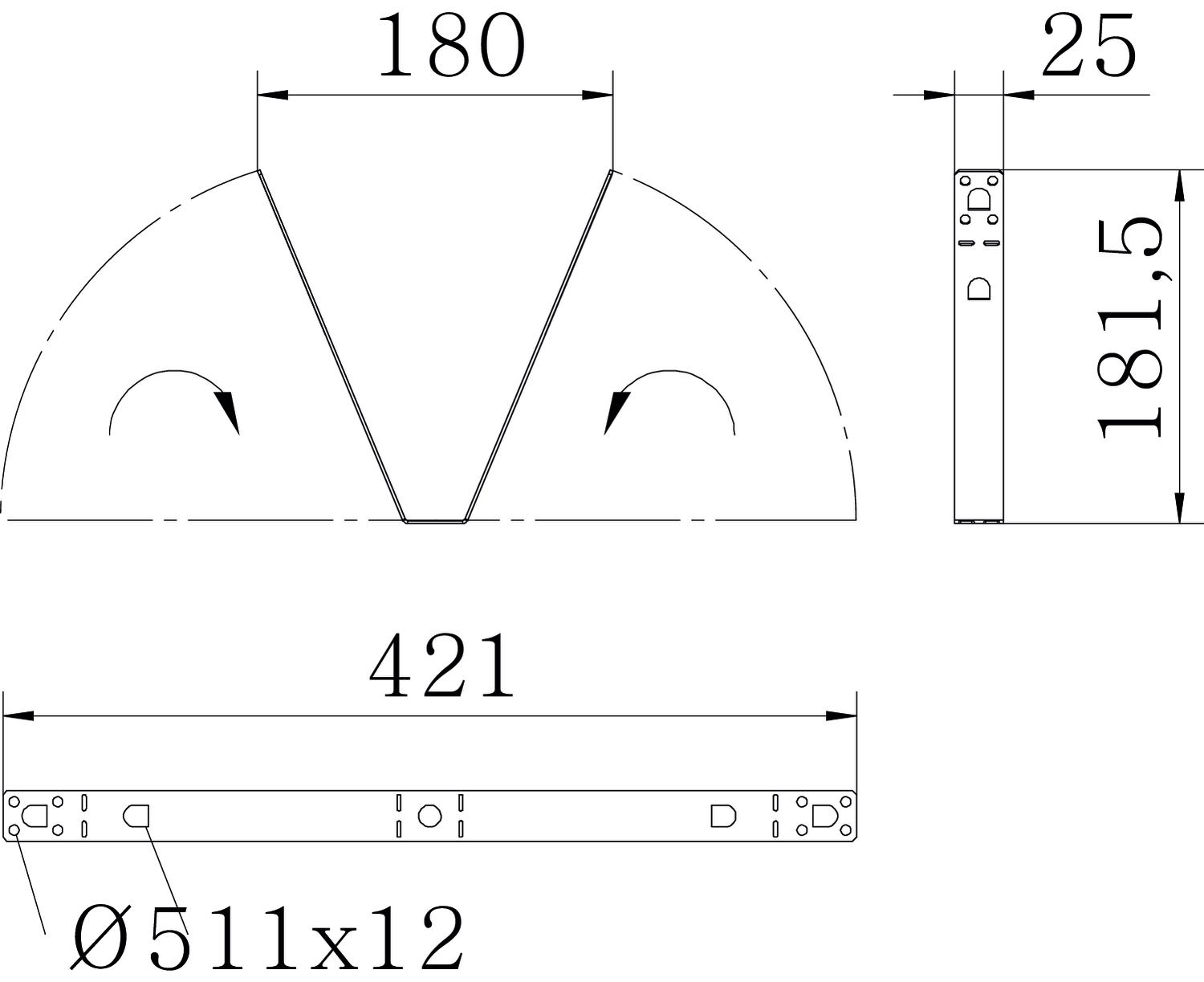

Adjustable yes Colour stainless steel Dimension 180x182 F in kN 0,8 kN Height 182 mm Hinged no Length 25 mm Maintain electrical functions no Material Stainless steel Material thickness 1,5 mm Rustproof steel, pickled yes Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Suitable for metric threaded rod 10 Surface Bright, treated Width 180 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

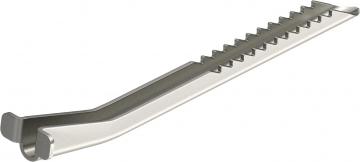

Splint for trapezoidal ceiling bracket A2
TPB R A2 6357538 100 piece - Downloads
-
Data sheet TPB 180 A2 / 6357524 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity TPB 180 A2 / 6357524 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
