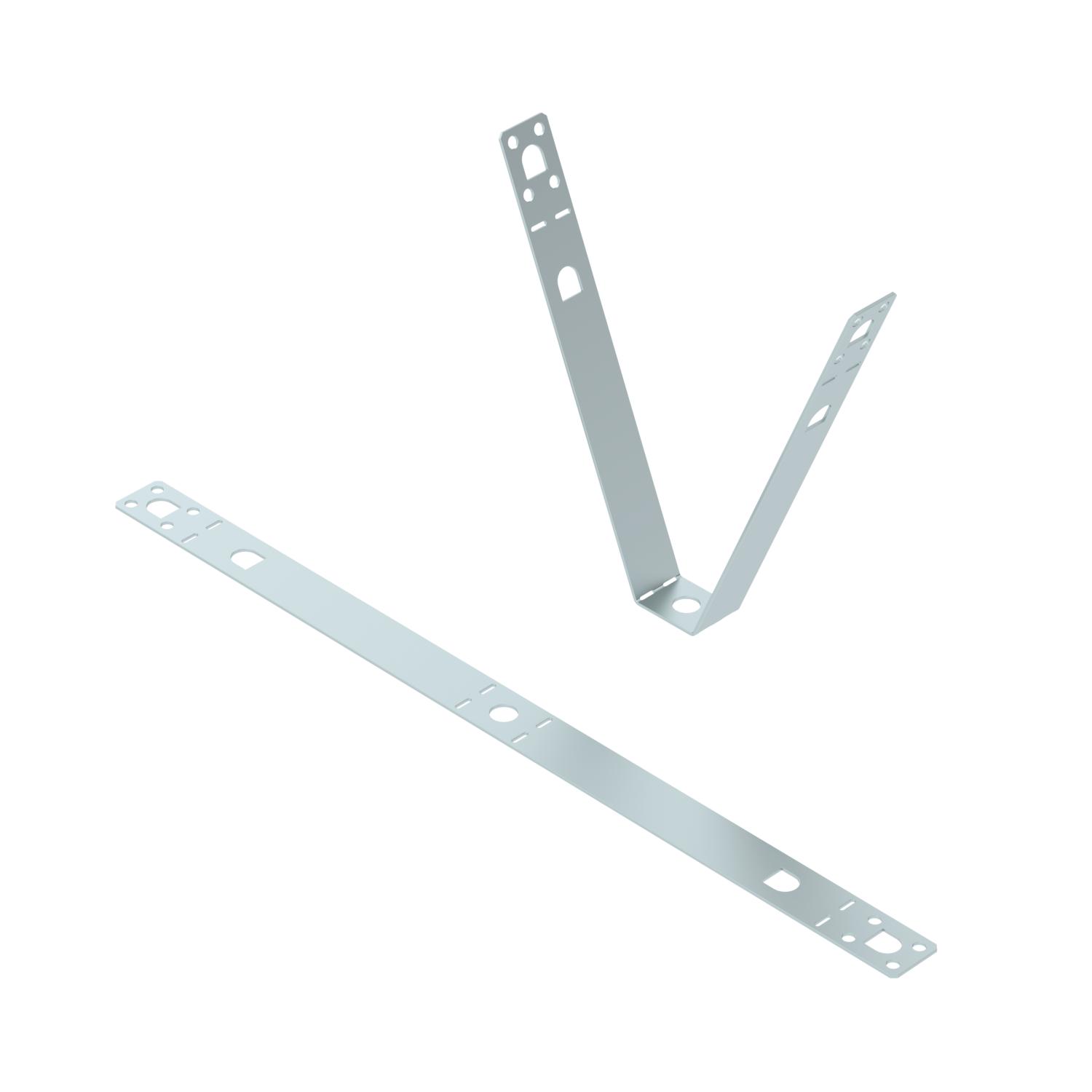

Trapezoidal fastening FS
Item no. 6357522 | EAN 4012196859085
- Product description
-
Product descriptionTrapezoidal fastening for suspending cable support systems from standard trapezoidal ceilings. Trapezoidal profile width up to 165 mm. Mounting with bolt, type TPB R, or hexagonal bolt, type SKS 10x110. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

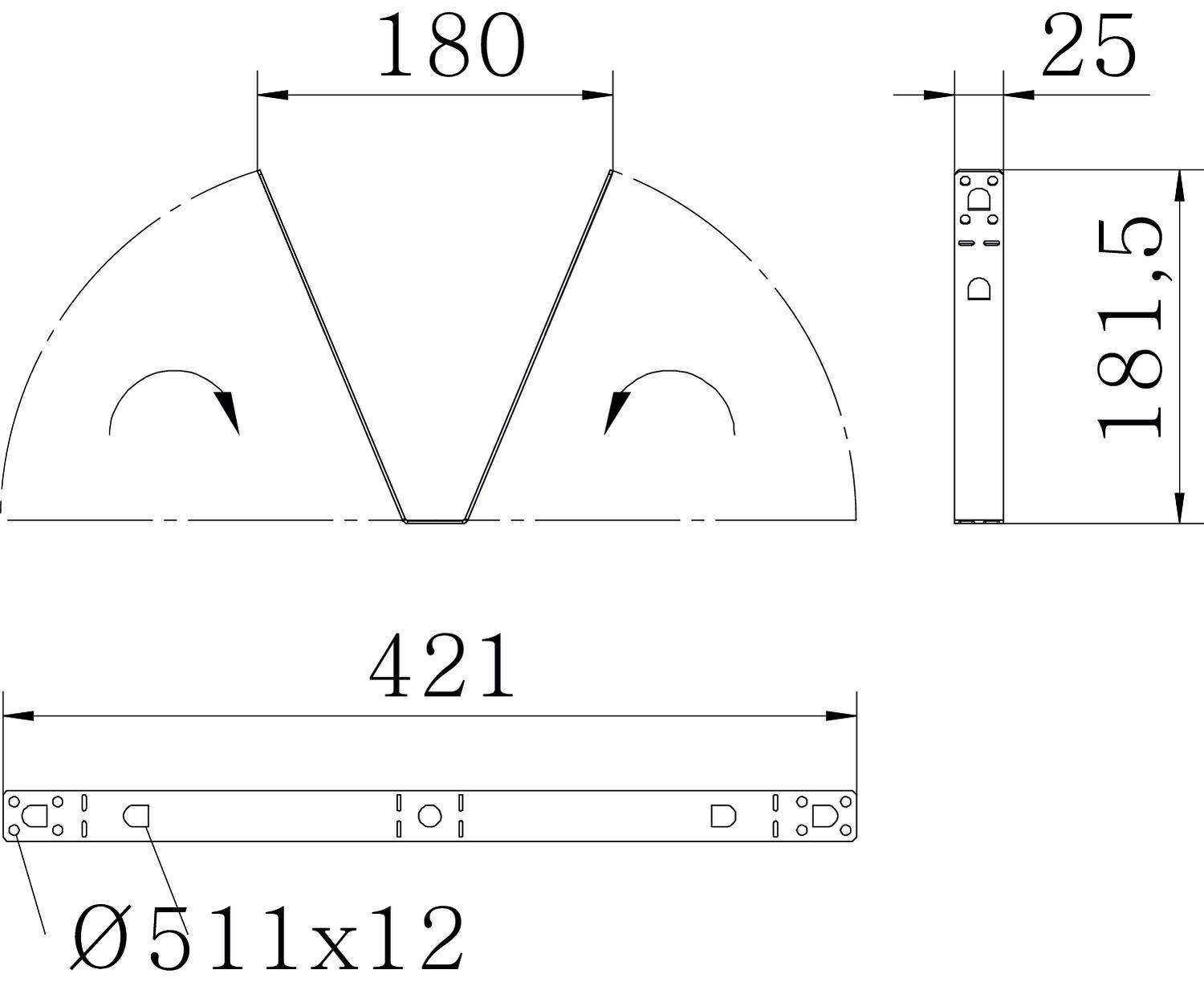

Adjustable yes Colour zinc Dimension 180x182 F in kN 0,8 kN Height 182 mm Hinged no Length 25 mm Maintain electrical functions no Material Steel Material thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Suitable for metric threaded rod 10 Surface Strip galvanized Width 180 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Splint for trapezoidal ceiling bracket FS
TPB R FS 6357536 100 piece - Downloads
-
