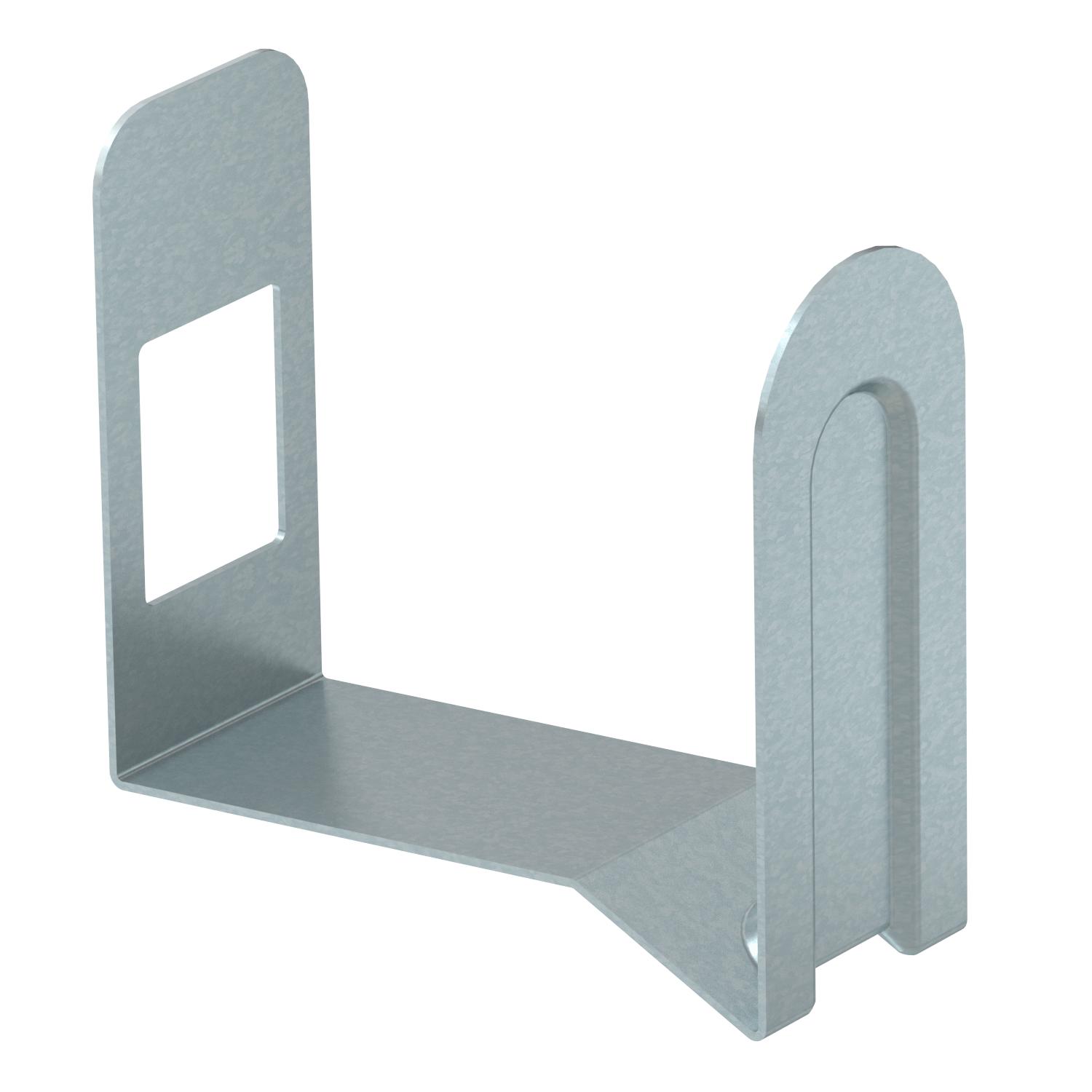

Trunking clamp, LKM, trunking width 80 mm
Item no. 6249882 | EAN 4012195699170
- Product description
-
Product descriptionThe trunking clamp keeps the inserted cables in the trunking, thus simplifying installation on walls and ceilings. The trunking clamps are plugged onto the loop perforation and locked on the side wall. Suitable for trunking width 80 mm.
-
- Technical data
-
Technical data

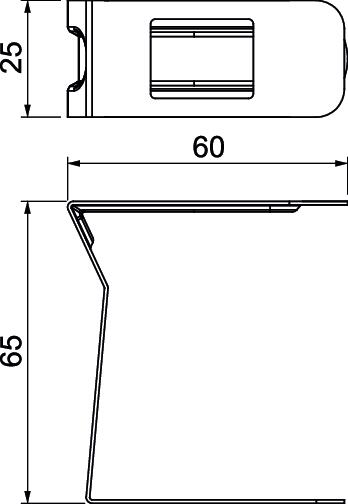

Colour zinc Dimension 65mm Dimension a 25 mm Dimension b 60 mm Dimension c 65 mm Fastening type Lockable for duct dimension 80 x 80 Halogen-free yes Height 65 mm Length 25 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Surface galvanised, blue passivated Width 60 mm With equipotential bonding no - All types
- Downloads
-
Data sheet LKM K65 / 6249882 , 0.18MB , pdfEU declaration of conformity LKM K65 / 6249882 , 0.10MB , pdfUK Declaration of Conformity LKM K65 / 6249882 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
