Trunking connector and joint cover
Item no. 6113020 | EAN 4012196419111
- Product description
-

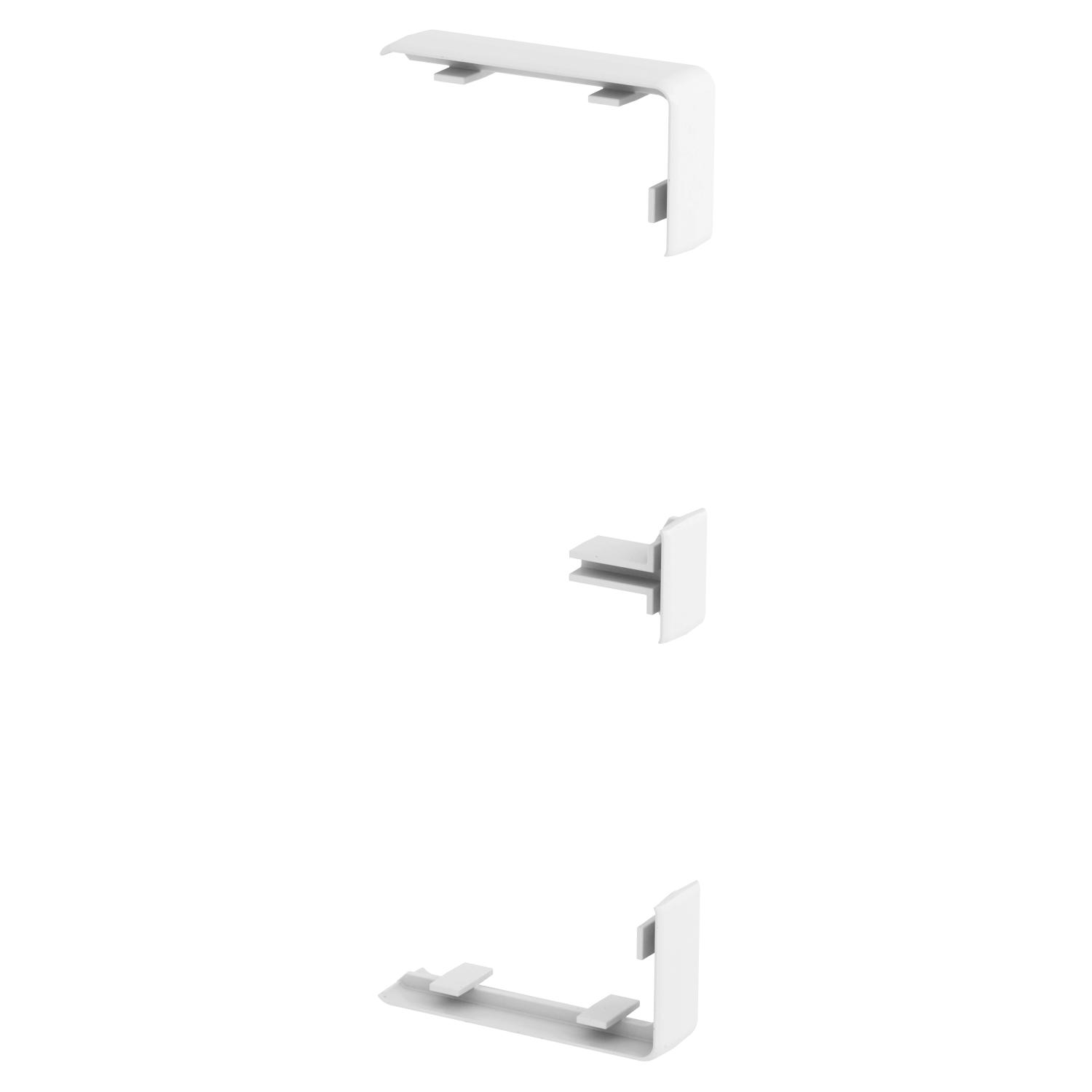

Product descriptionJoint cover for the bases of the Rapid 45-2 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 100 mm and 165 mm.
-
- Technical data
-
Technical data

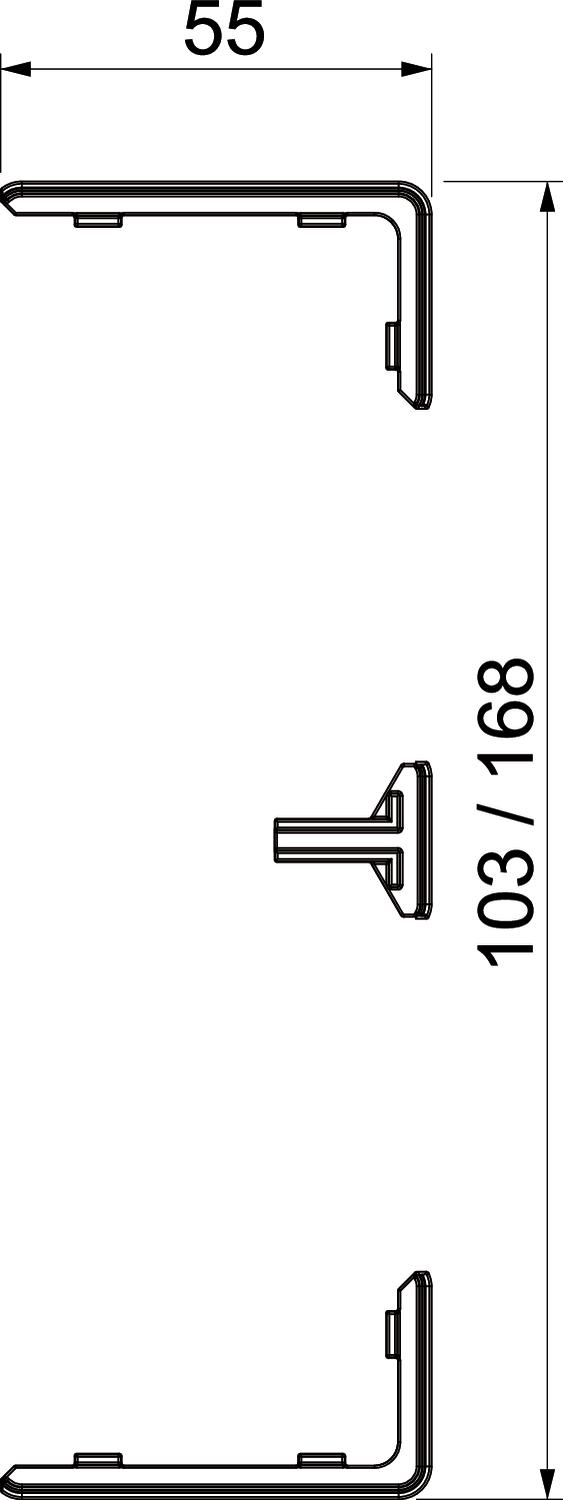

Colour Pure white; RAL 9010 Cover width 45 mm Dimension 168x55x15 Fastening type Slide (before mounting) for duct width 100,17 mm for trunking height 53 mm Halogen-free yes Height 27 mm Length 15 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Shape Symmetrical Version for Trunking cut cover Width 55 mm - All types
- Downloads
-
Data sheet GK-KS45-1RW / 6113020 , 0.21MB , pdfEU declaration of conformity GK-KS45-1RW / 6113020 , 0.13MB , pdfREACH Declaration of conformity GK-KS45-1RW / 6113020 , 0.12MB , pdfRoHS Declaration of conformity GK-KS45-1RW / 6113020 , 0.12MB , pdfLabel approval VDE-Zeichengenehmigung Rapid45-2 GKH , 0.31MB , pdfNo invitation to tender text is available for this product.
