Trunking connector and joint cover
Item no. 6113210 | EAN 4012196419418
- Product description
-

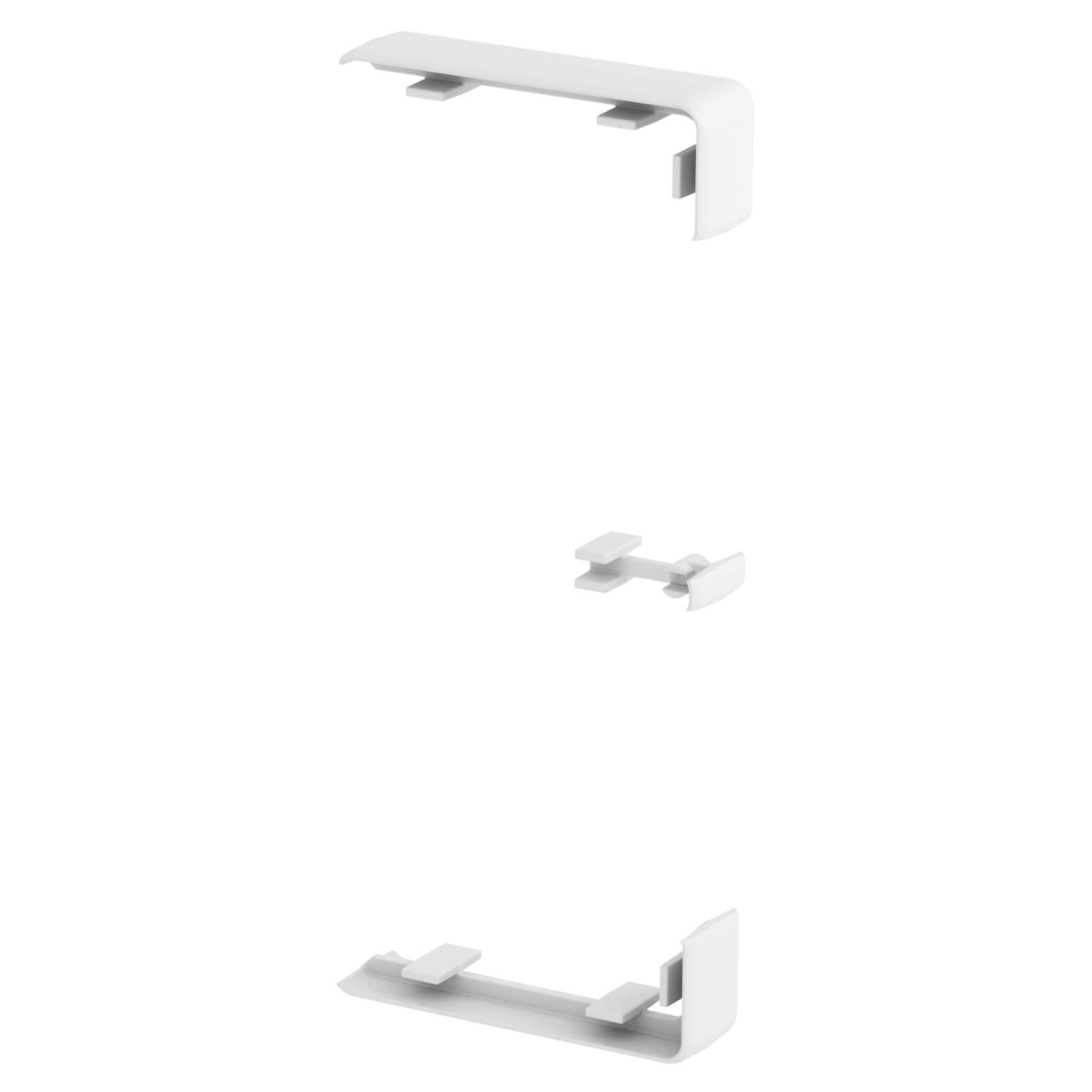

Product descriptionJoint cover for the bases of the Rapid 45 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 130 mm.
-
- Technical data
-
Technical data

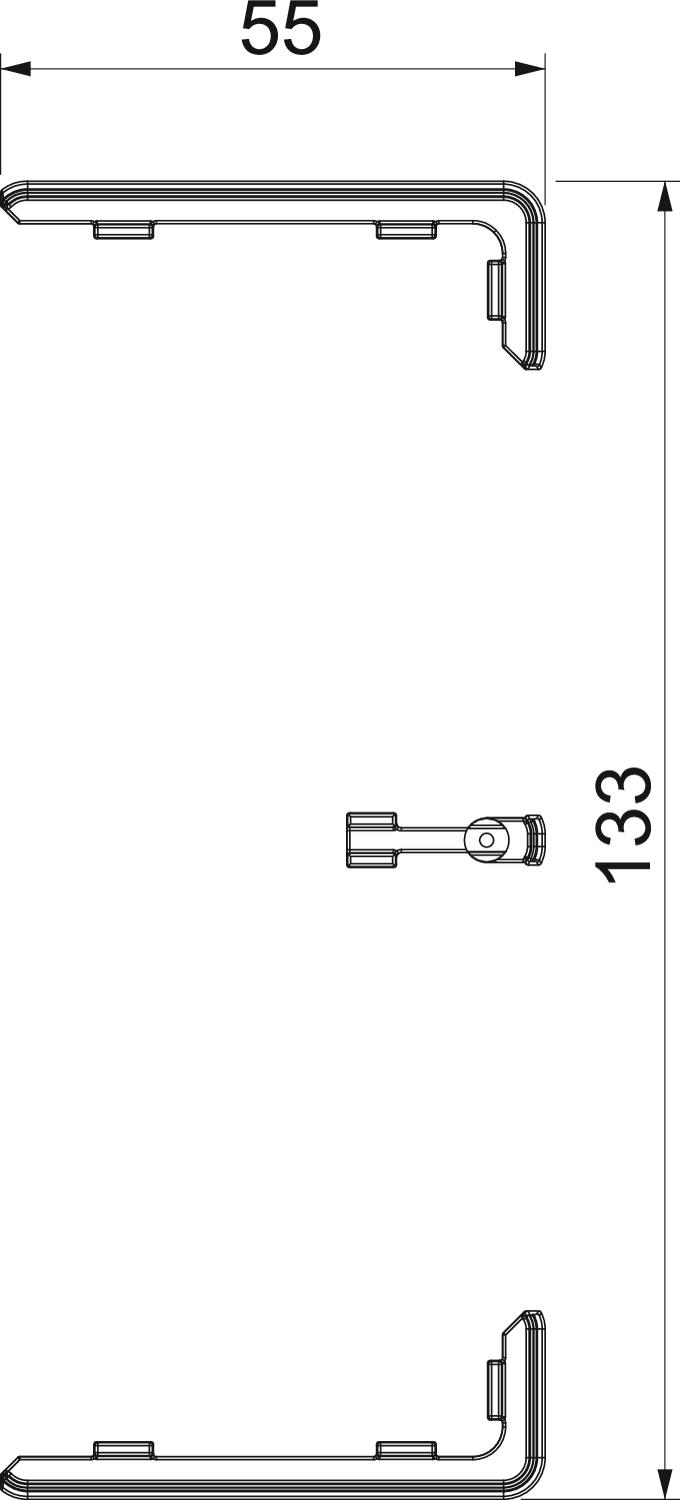

Colour Pure white; RAL 9010 Cover width 45 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,049 kg CO₂e / 1 Piece Dimension 133x55x15 Fastening type Slide (before mounting) for duct width 130 mm for trunking height 53 mm Halogen-free yes Height 17 mm Length 15 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Shape Symmetrical Version for Trunking cut cover Width 55 mm - All types
- Downloads
-
Data sheet GK-KS45-2RW / 6113210 , 0.20MB , pdfEU declaration of conformity GK-KS45-2RW / 6113210 , 0.13MB , pdfREACH Declaration of conformity GK-KS45-2RW / 6113210 , 0.12MB , pdfRoHS Declaration of conformity GK-KS45-2RW / 6113210 , 0.12MB , pdfNo invitation to tender text is available for this product.
