Trunking coupling Signa Base KUP 111

morepic-1

morepic-2

Trunking coupling Signa Base KUP

Item no. 6132798 | EAN 4012196722723

Item no. / Types	6132798 / BRK KUP gr

Length	111 mm

Product description

Product description

Trunking coupling to connect the Signa Base device installation trunking.

Technical data

Technical data

Halogen-free	yes
Material	Polypropylene
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40

Protection rating IK code	IK07.
Type	coupling
Version for	Symmetrical
With equipotential bonding	no

Dimensions

Height	9,6 mm
Length	111 mm

Width	51,7 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
BRK KUP gr	111 mm	6132798	piece	10 piece

Downloads

Data sheet BRK KUP gr / 6132798 , 0.25MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

Declaration of conformity BRK KUP gr / 6132798 , 0.17MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

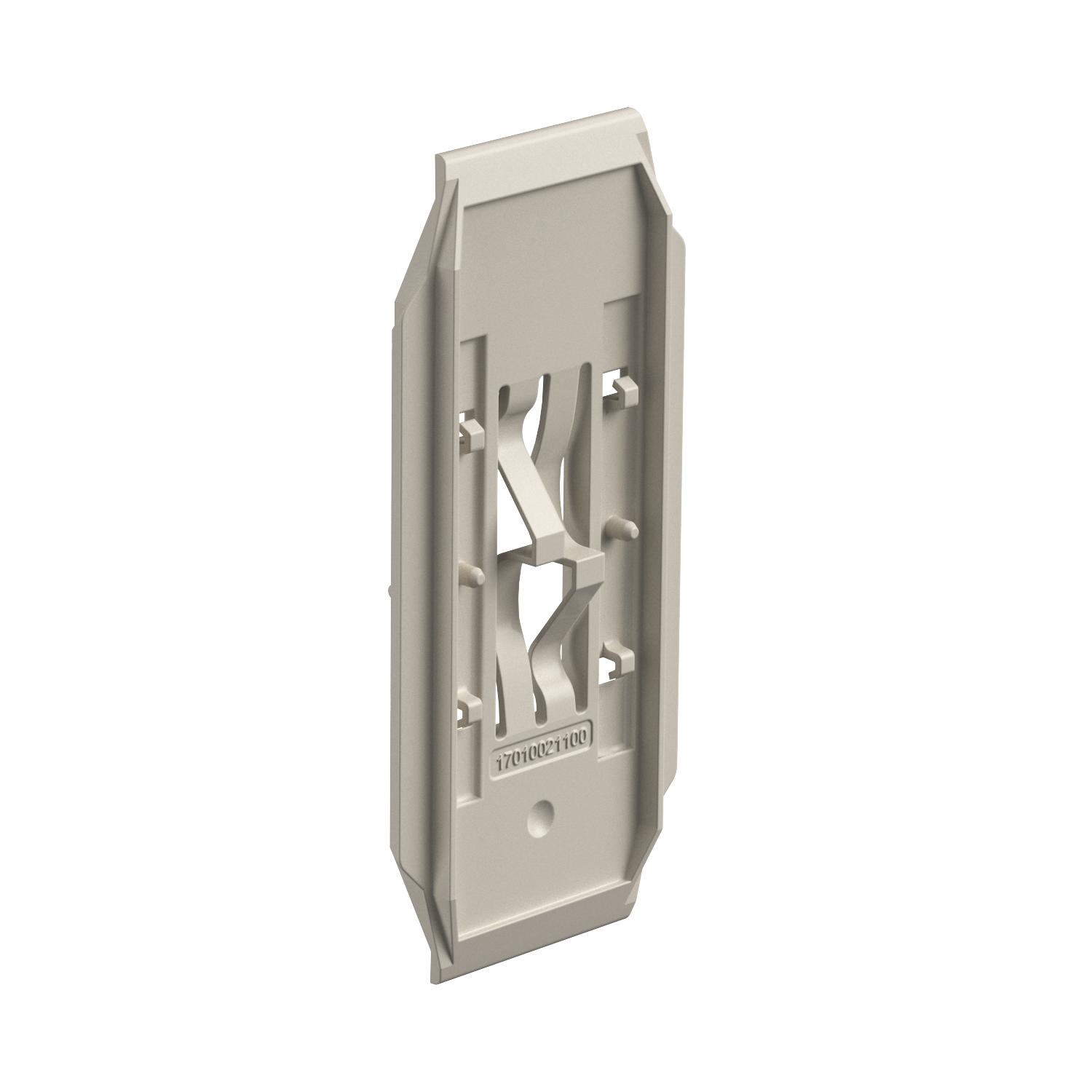

Product graphic BRK KUP gr / 6132798, 53.71 kB, jpg

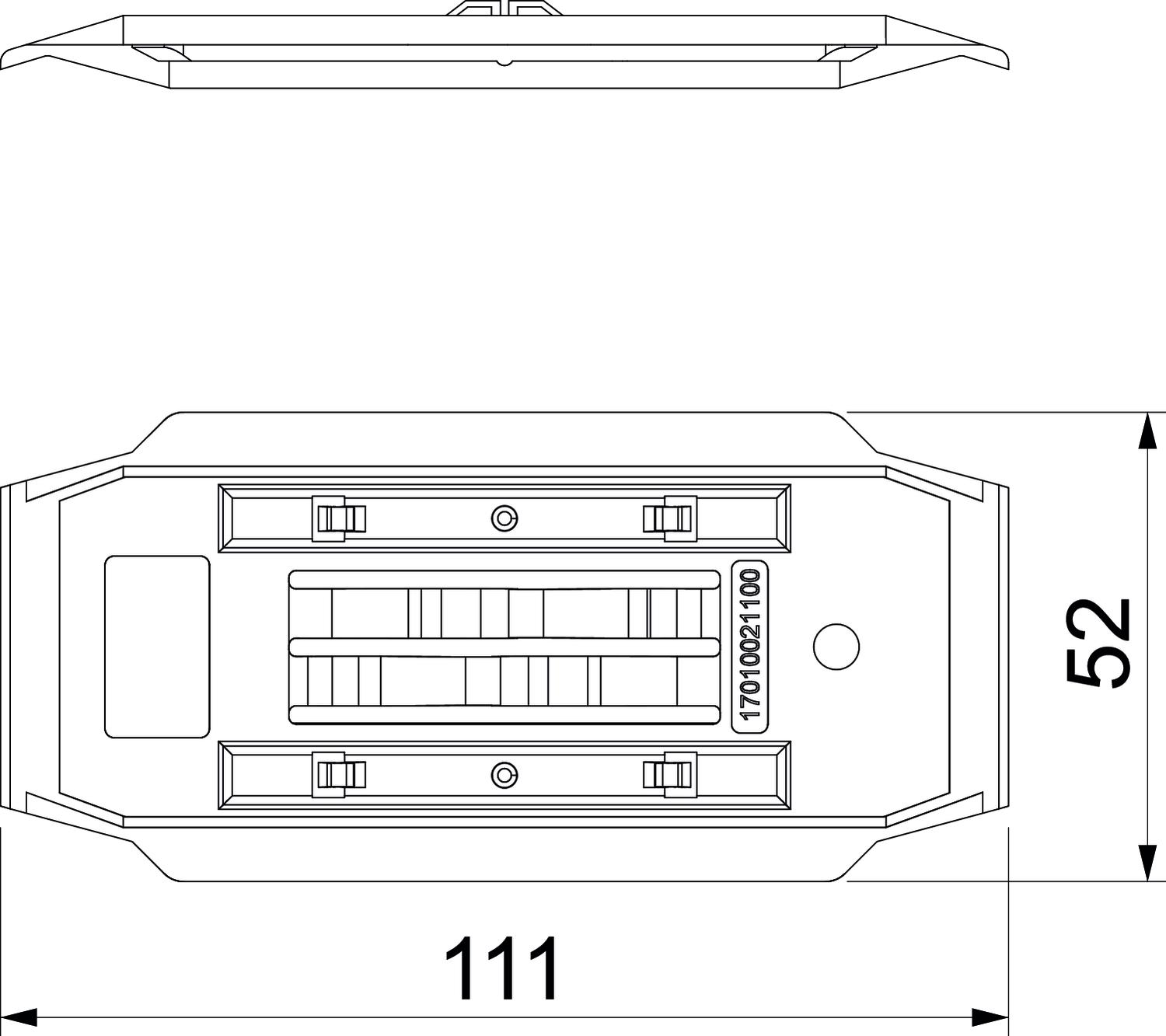

Scale drawing BRK KUP gr / 6132798, 95.07 kB, jpg

No invitation to tender text is available for this product.
