Trunking cover, aluminium, 100 mm 100 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

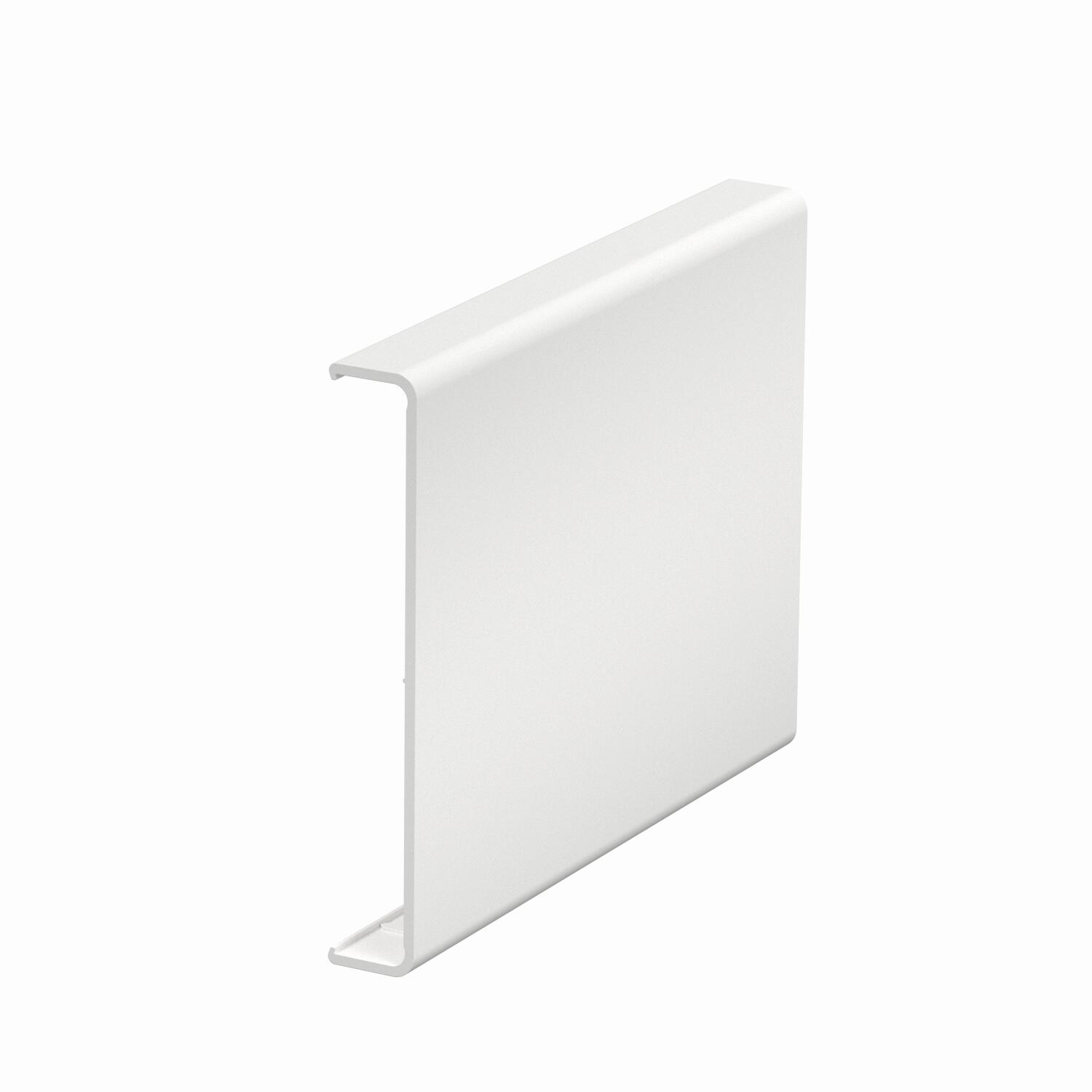

Trunking cover, aluminium, 100 mm

Item no. 6279715 | EAN 4012197261528

100 mm
Product description
Product description
Aluminium cover, for closing Rapid GA device installation trunking and ISS service poles with a 76.5 mm system opening. The firm position of the cover and electrical contact to the lower part of the trunking and service pole is guaranteed thanks to type RKV3V locking brackets. There are 2 pre-mounted locking brackets included per delivery length (100 mm).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cover mounting type Internal

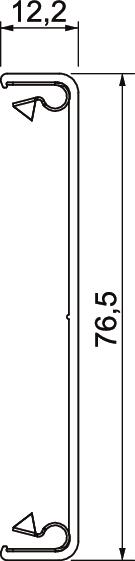

Dimension 12x76,5x100
Halogen-free yes
Height 12 mm
Length 100 mm
Material Aluminium
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Version for Smooth
Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GA-OTRW 100 100 mm Pure white; RAL 9010 6279715
1 piece
GA-OTEL 100 100 mm - 6279733
1 piece
Downloads

Download

Download

EU declaration of conformity GA-OTRW 100 / 6279715 , 0.10MB , pdf
Download
UK Declaration of Conformity GA-OTRW 100 / 6279715 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
