Trunking cover, smooth 2000 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

Trunking cover, smooth

Item no. 6114210 | EAN 4012196450831

6114210 / GKH-OTGRW
2000 mm
Pure white; RAL 9010
Product description

Product description

Smooth trunking cover made of halogen-free PC/ABS, for closing device installation trunking with 80 mm system opening.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cover mounting type Internal
Dimension 70x2000
Halogen-free yes
Height 12 mm
Length 2000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Version for Smooth

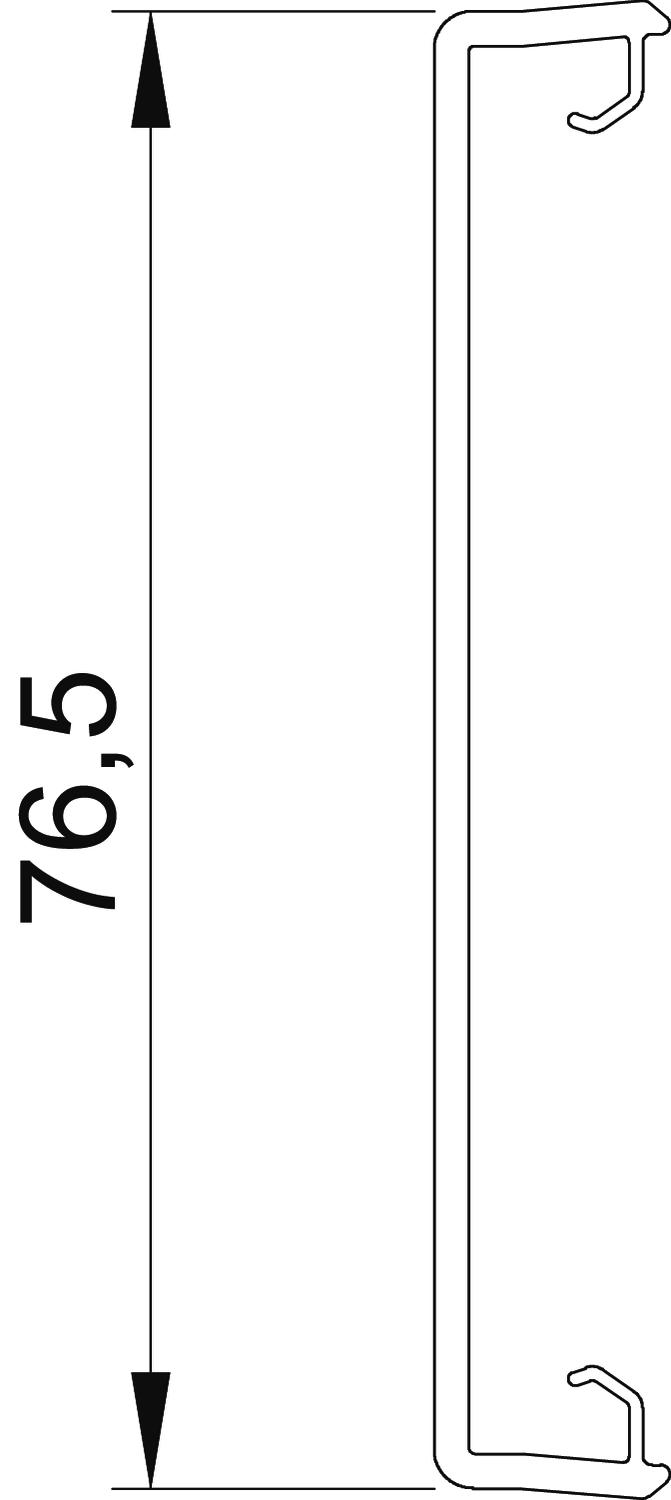

Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GKH-OTGRW 2000 mm Pure white; RAL 9010 6114210
16 m
Downloads

Download

Download

Declaration of conformity GKH-OTGRW / 6114210 , 0.13MB , pdf
Download
UK Declaration of Conformity GKH-OTGRW / 6114210 , 0.14MB , pdf
Download
REACH Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdf
Download
RoHS Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
