- Product description
-
Product description

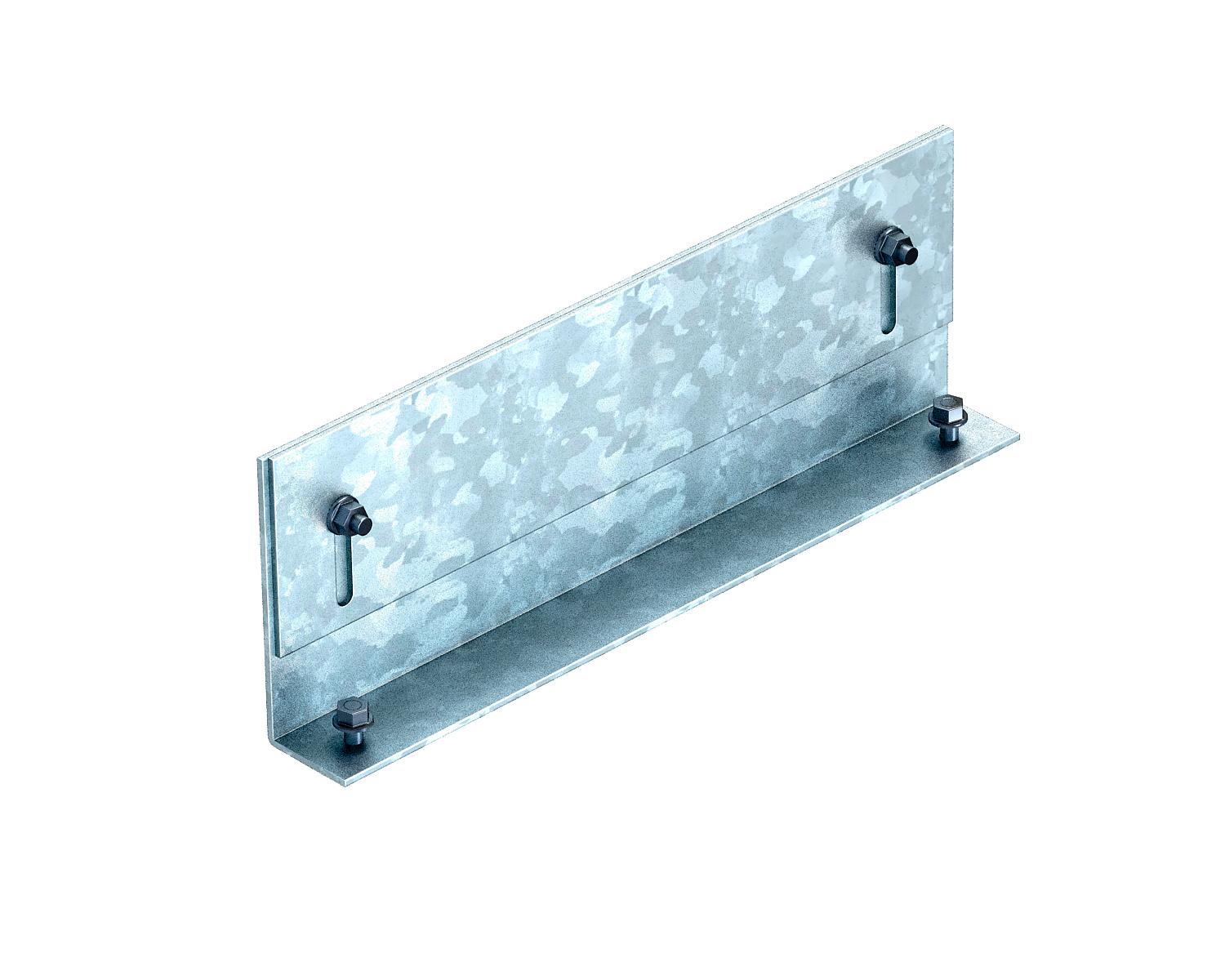

Ready-to-mount trunking end connection, consisting of a side wall and a height-adjustable side profile for universal installation on left or right.
- Technical data
-
Technical data
Cover fastening, locking no Decouplable yes Duct height, min. 85 mm Floor care Dry Floor plate yes Installation opening for on-floor tank no Material Steel Minimum screed height 85 Mounting opening Without Mounting opening cover no Removable cover yes Seal installation option no Separating retainer fastening Plug Suitable for expansion joint no Suitable for flushfloor, open underfloor trunking yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking height, max. 125 mm With connection opening no With equipotential bonding no With overhang yes With separating retainer no Dimensions

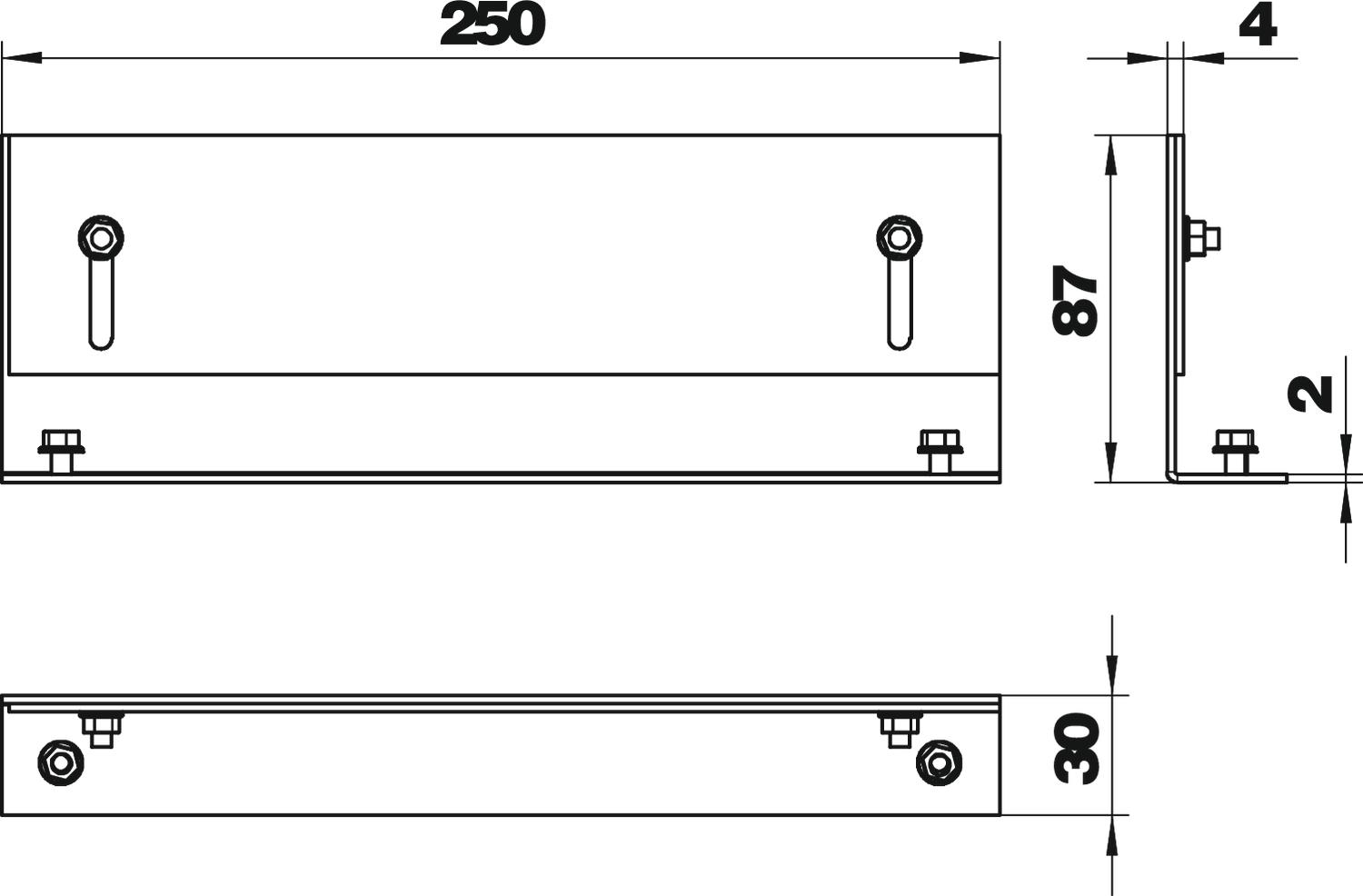

Dimension h 85 mm Height 93 mm Width 250 mm - All types
- Downloads
-
Data sheet OKB ES 25085 / 7403820 , 0.22MB , pdfMounting instructions Mounting instructions OKB-U and OKB-E , 1.30MB , pdf
