Product description
Ready-to-mount trunking end piece, consisting of a flexible apron with side and floor covering guide profiles. The scope of delivery contains trunking connection brackets and a height-adjustable fixing bracket.
- Technical data
-

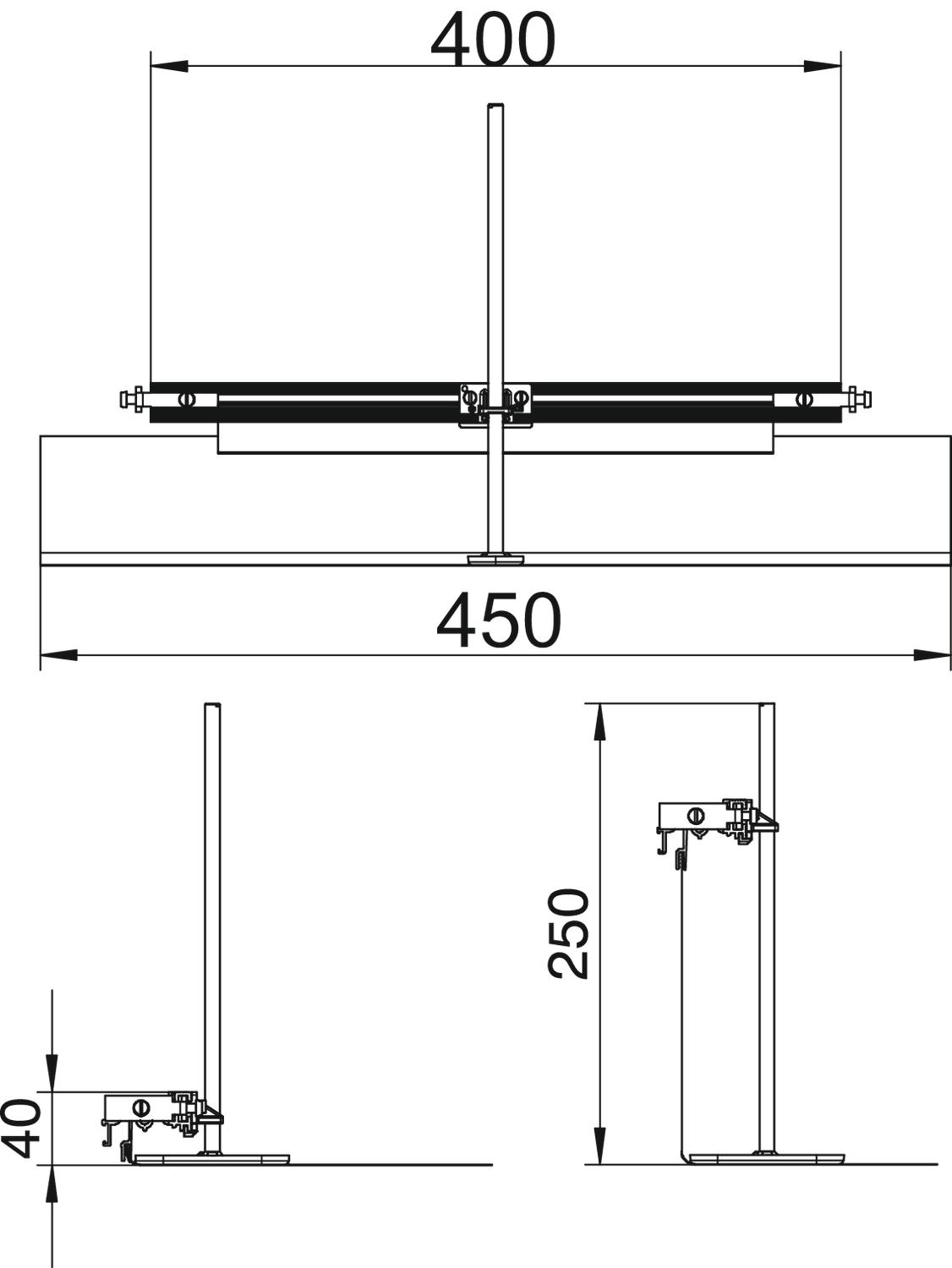

Dimensions
Dimension h 40 mm Duct height, min. 40 mm Height-adjustment range, max. 200 mm Length 460 mm Material Steel Suitable for flushfloor, open underfloor trunking yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking height, max. 240 mm Width 400 mm - All types
