Trunking RFT 225 unit with cable outlet M25 2400 | 225 | 40
morepic-1 morepic-2

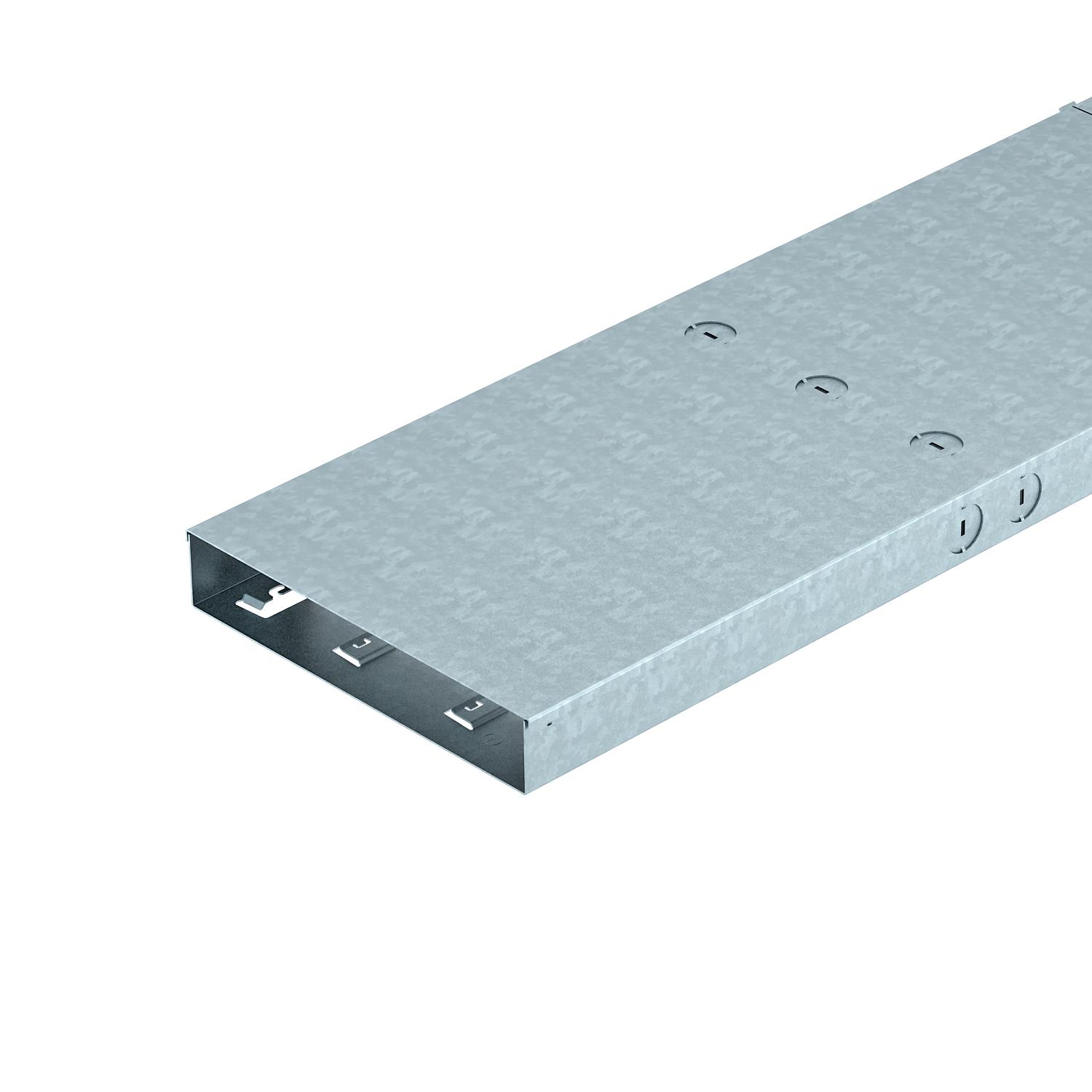

Trunking RFT 225 unit with cable outlet M25

Item no. 7428193 | EAN 4012196434367

7428193 / RFT 225 40
2400 mm
225 mm
40 mm
Product description
Product description
The raised floor trunking can be used for routing cables underneath raised floor panels. Retaining straps permit the self-contacting mounting of separating retainers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking yes
CO₂ Footprint (GWP) Cradle-to-Gate 25,139 kg CO₂e / 1 Piece
Decouplable no

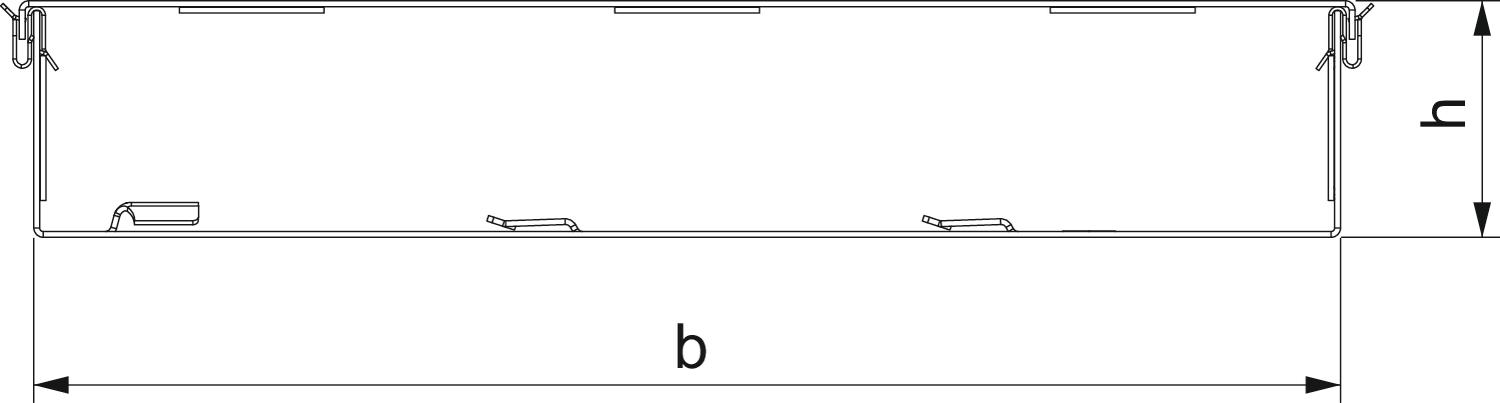

Dimension 2400x225x40
Dimension b 225 mm
Dimension h 40 mm
Floor plate yes
For pipe connection yes
Heavy-duty version no
Height 40 mm
Installation opening for on-floor tank no
Length 2400 mm
Material Steel
Number of compartments 3 St.
Plate thickness 1 mm
Removable cover yes
Seal installation option no
Separating retainer fastening Lock
Suitable for expansion joint no
Suitable for flushfloor, open underfloor trunking no
Suitable for screed-covered underfloor ducts no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Width 225 mm
With connection opening yes
With equipotential bonding yes
With overhang no
With screening no
With separating retainer no
All types

All types

Types Length Width Height Item no. Quantity SSU
RFT 225 40 2400 mm 225 mm 40 mm 7428193
1 piece
