Trunking socket BRK, triple
Item no. 6121032 | EAN 4012196734467
- Product description
-
Product description

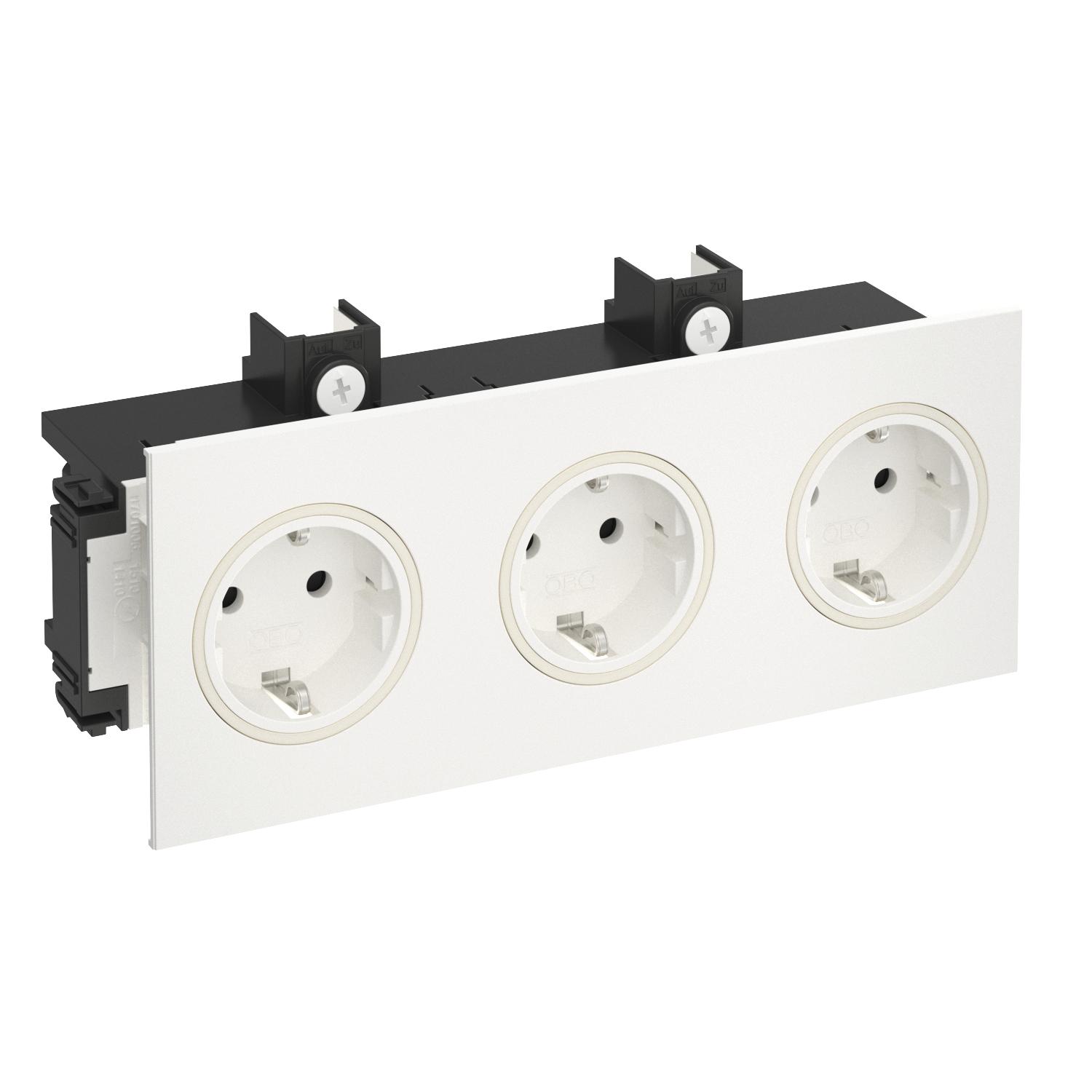

Triple Signa In trunking socket with increased touch protection, incl. panel (a maximum of 3 Signa In units can be connected through plug combinations) 16 A/250 V~.
- Technical data
-
Technical data
Closable no Coding no Colour Pure white; RAL 9010 Connection type Screwless terminal Cover Complete housing Dimension 206x82x71 Ejection mechanism no Error current protection no Fastening type Miscellaneous For more difficult conditions (according to VDE) no Halogen-free yes Hinged cover no Insulated installation yes Labelling panel no Mounting type Device installation duct Nominal current 16 A Nominal voltage 250 V Number of modules (for modular construction) 3 Number of units 3 Printed label/coding Without printing Protection rating IP20 Rotated central insert no Socket angle 0° Special power supply Without special power supply Surface version Matt Surge protection no Transparent no With fine-wire fuse no With functional lighting no With on/off switch no With orientation lighting no Dimensions

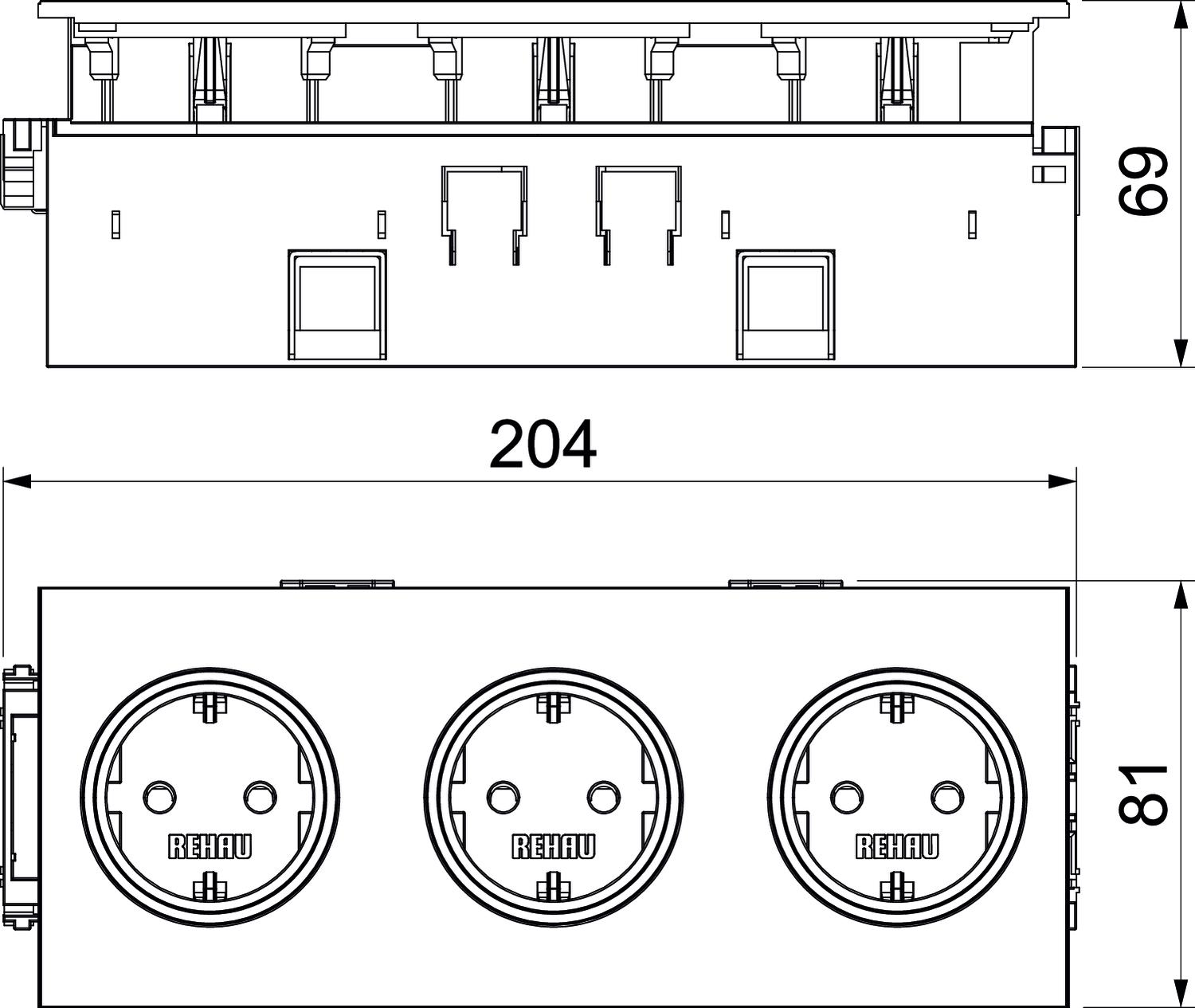

Height 82 mm Width 206 mm - All types
- Downloads
-
Data sheet BRK 3STD rws / 6121032 , 0.19MB , pdfDeclaration of conformity BRK 3STD rws / 6121032 , 0.13MB , pdfMounting instructions Kanalsteckdose Signa In , 9.41MB , pdfNo invitation to tender text is available for this product.
