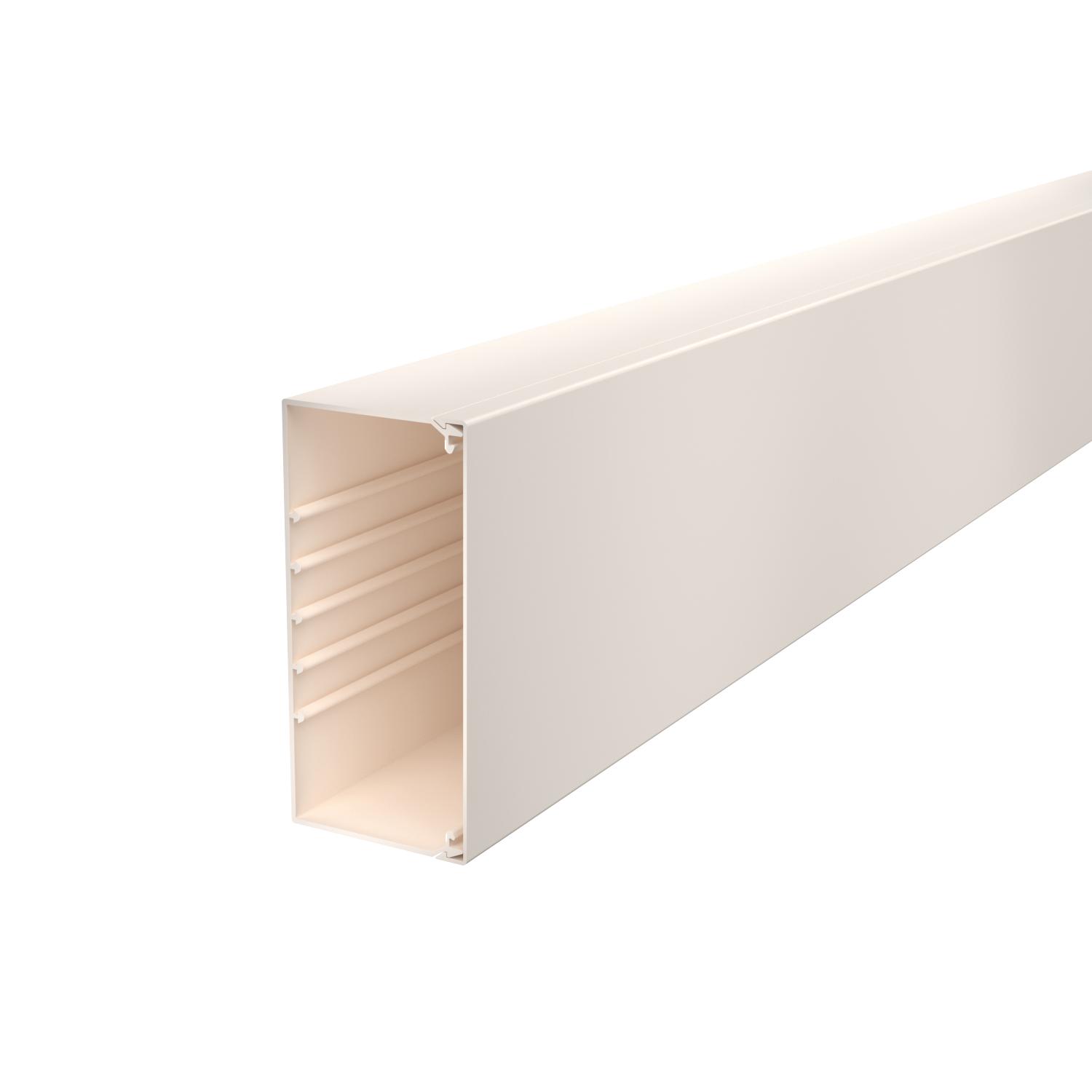

Trunking, type WDK 80170 2000 | 170 | 80 | Cream; RAL 9001

Trunking, type WDK 80170

Item no. 6026176 | EAN 4012196029778

Item no. / Types

Length	2000 mm

Width	170 mm

Height	80 mm

Colour

Product description

Product description

Wall installation trunking as trunking base with base perforation and matching trunking cover.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	4,441 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Delivery on a roll	no

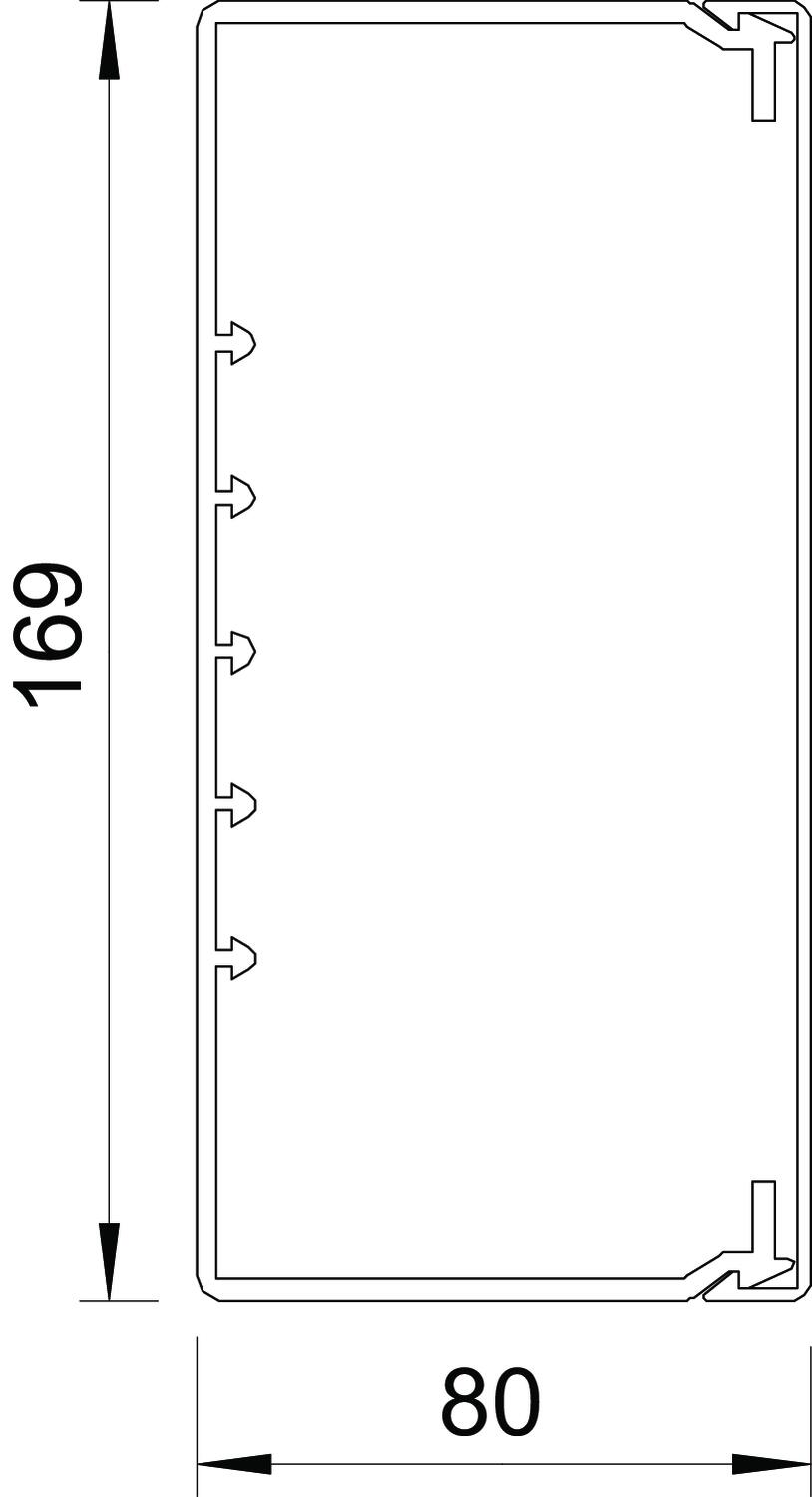

Dimension	80x170x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	80 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	64
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	53
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	49
Number of insertable partitions	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	11108 mm²
Version, cable trunking cover	Loose
Width	170 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK80170RW	2000 mm	170 mm	80 mm	Pure white; RAL 9010	6191304	m	8 m
WDK80170CW	2000 mm	170 mm	80 mm	Cream; RAL 9001	6026176	m	8 m
WDK80170GR	2000 mm	170 mm	80 mm	Stone grey; RAL 7030	6026184	m	8 m
WDK80170LGR	2000 mm	170 mm	80 mm	Light grey; RAL 7035	6027229	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

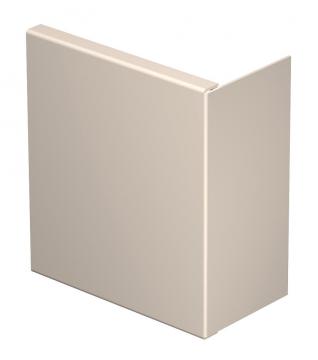

End piece, trunking type WDK 80170	WDK HE80170CW	6163009	piece	10 piece

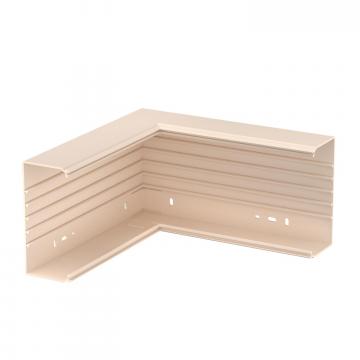

Internal corner cover, trunking type WDK 80170	WDK I80170CW	6193078	piece	1 piece

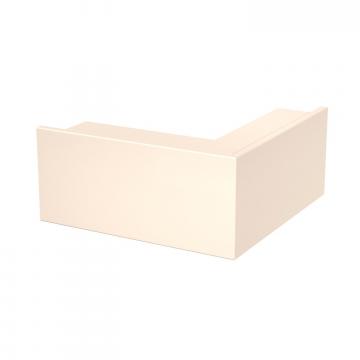

External corner, trunking type WDK 80170	WDK A80170CW	6024654	piece	1 piece

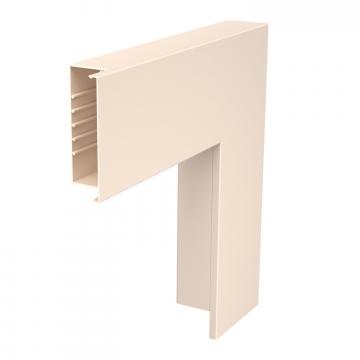

Flat angle, trunking type WDK 80170	WDK F80170CW	6182748	piece	1 piece
Partition for WDK trunking, trunking height 80 mm	2371 80	6026982	m	2 m
Cover clip for WDK trunking, trunking width 170 mm	2370 170	6023541	piece	20 piece
