Trunking unit, blank, height 40−140 mm 2400 | 600 | 40 | 140 | 3

Trunking unit, blank, height 40−140 mm

Item no. 7424008 | EAN 4012195242994

Item no. / Types

Length	2400 mm

Width

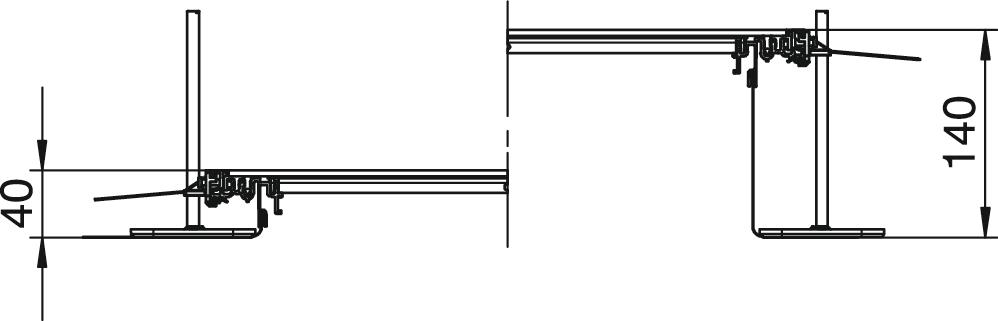

Duct height, min.	40 mm

Trunking height, max.	140 mm

Covers	3

Product description

Product description

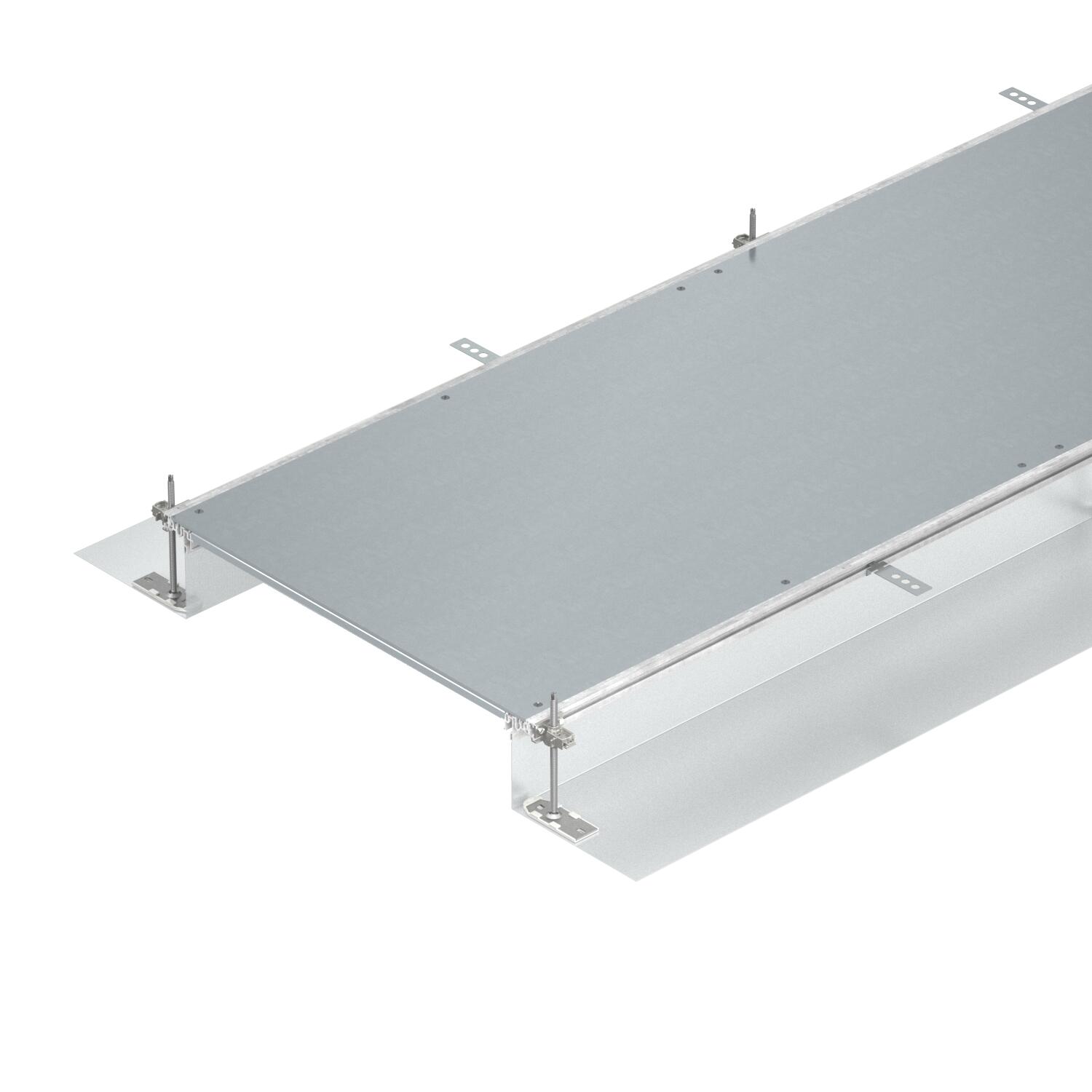

Ready-to-mount trunking unit for cable routing consisting of 3 blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of supply contains six height-adjustable fastening brackets, six screed anchors and three lid butt seals for nominal trunking widths 200, 300 and 400mor six lid butt supports for trunking widths 500 and 600. The essential levelling units (observe height adjustment) for the 400, 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. On delivery, the trunking lids are screwed on.

Technical data

Technical data

Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	yes
Dimension	2400x600x140
Duct height, min.	40 mm
Floor plate	no
Height-adjustment range, max.	140 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	40

Mounting opening	Without
Mounting opening cover	no
Removable cover	yes
Seal installation option	yes
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	140 mm
Width	600 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-G20040140	2400 mm	200 mm	40 mm	140 mm	3	7424000	m	2,4 m
OKA-G30040140	2400 mm	300 mm	40 mm	140 mm	3	7424002	m	2,4 m
OKA-G40040140	2400 mm	400 mm	40 mm	140 mm	3	7424004	m	2,4 m
OKA-G50040140	2400 mm	500 mm	40 mm	140 mm	3	7424006	m	2,4 m
OKA-G60040140	2400 mm	600 mm	40 mm	140 mm	3	7424008	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−150 mm	OKA-G60040150FBL	7423958	piece	1 piece
Construction set for 90° angle to right, height 40−150 mm	OKA-G60040150FBR	7423978	piece	1 piece
Trunking end piece, height 40−150 mm	OKA-G60040150ES	7424288	piece	1 piece
Extension unit for GES4, height 40−140 mm	OKA-G A 40140 4	7424320	piece	1 piece
Extension unit for GES6, height 40−140 mm	OKA-G A 40140 6	7424322	piece	1 piece
Extension unit for GES9, height 40−140 mm	OKA-G A 40140 9	7424324	piece	1 piece
Extension unit for GESR9, height 40−140 mm	OKA-G A 40140R9	7424326	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	30 piece
Height adjustment unit for lid butt support, trunking height 40-70 mm	NE DSU2 4030	7424840	piece	75 piece
Height adjustment unit for lid butt support, trunking height 60-110 mm	NE DSU2 6050	7424842	piece	75 piece
Height adjustment unit for lid butt support, trunking height 100-175 mm	NE DSU2 10075	7424844	piece	75 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
Separating retainer 135 FS	TSG 135 FS	6062132	m	3 m
Suction lifter, 300 N	WZ 1029	7408634	piece	1 piece
