Trunking unit, blank, height 60−110 mm 2400 | 300 | 60 | 110 | 3
morepic-1 morepic-2

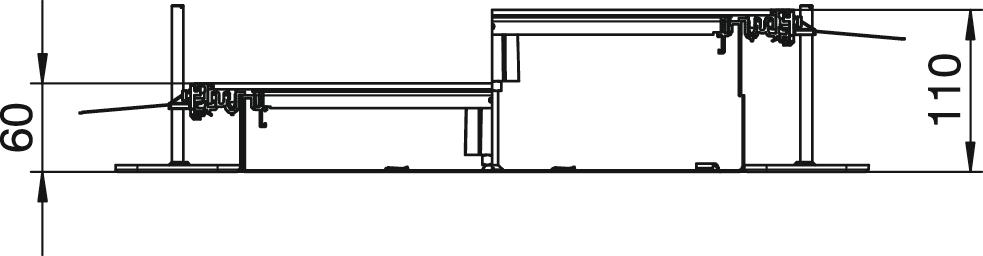

Trunking unit, blank, height 60−110 mm

Item no. 7424422 | EAN 4012195244202

2400 mm
60 mm
110 mm
3
Product description

Product description

Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Cover material thickness 4
Covers 3
Decouplable no
Dimension 2400x300x60
Duct height, min. 60 mm
Floor plate yes
Height-adjustment range, max. 110 mm
Height-adjustment range, min. 60 mm
Installation opening for on-floor tank no
Length 2400 mm
Material Steel
Minimum screed height 60
Mounting opening Without
Mounting opening cover no
Number of compartments 3 St.
Number of insertable partitions 2
Number of planned flush-mount units 3
Removable cover yes
Seal installation option yes
Separating retainer fastening Lock
Suitable for expansion joint no
Surface Strip galvanized
Trunking height, max. 110 mm
Usable cross-section 8100 mm²
Width 300 mm
With connection opening no
With equipotential bonding no
With overhang yes
With separating retainer no
All types

All types

Types Length Width Duct height, min. Trunking height, max. Covers Item no. Quantity SSU
OKA-W2006050 2400 mm 200 mm 60 mm 110 mm 3 7424420
2,4 m
OKA-W3006050 2400 mm 300 mm 60 mm 110 mm 3 7424422
2,4 m
OKA-W4006050 2400 mm 400 mm 60 mm 110 mm 3 7424424
2,4 m
OKA-W5006050 2400 mm 500 mm 60 mm 110 mm 3 7424426
2,4 m
OKA-W6006050 2400 mm 600 mm 60 mm 110 mm 3 7424428
2,4 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Construction set for 90° angle to left, height 40−150 mm Construction set for 90° angle to left, height 40−150 mm OKA-G30040150FBL 7423952
1 piece
Construction set for 90° angle to right, height 40−150 mm Construction set for 90° angle to right, height 40−150 mm OKA-G30040150FBR 7423972
1 piece
Trunking end piece, height 40−150 mm Trunking end piece, height 40−150 mm OKA-G30040150ES 7424282
1 piece
Construction set for trunking T branch and intersection Construction set for trunking T branch and intersection OKA FB2 TX 7424821
30 piece
Extension unit for GES4, height 60−110 mm Extension unit for GES4, height 60−110 mm OKA-W A 6050 4 7424900
1 piece
Extension unit for GES6, height 60−110 mm Extension unit for GES6, height 60−110 mm OKA-W A 6050 6 7424902
1 piece
Extension unit for GES9, height 60−110 mm Extension unit for GES9, height 60−110 mm OKA-W A 6050 9 7424904
1 piece
Protective conductor connection bracket Protective conductor connection bracket 8AWR 6288704
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
Separating retainer, trunking height 40 mm Separating retainer, trunking height 40 mm OKA2 TW 40 7401988
2,4 m
Suction lifter, 300 N Suction lifter, 300 N WZ 1029 7408634
1 piece
Downloads

Download

Download

Declaration of conformity OKA-W3006050 / 7424422 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
