Trunking unit, blank, height 65 mm

Item no. 7402225 | EAN 4012196434435

Product description

Product description

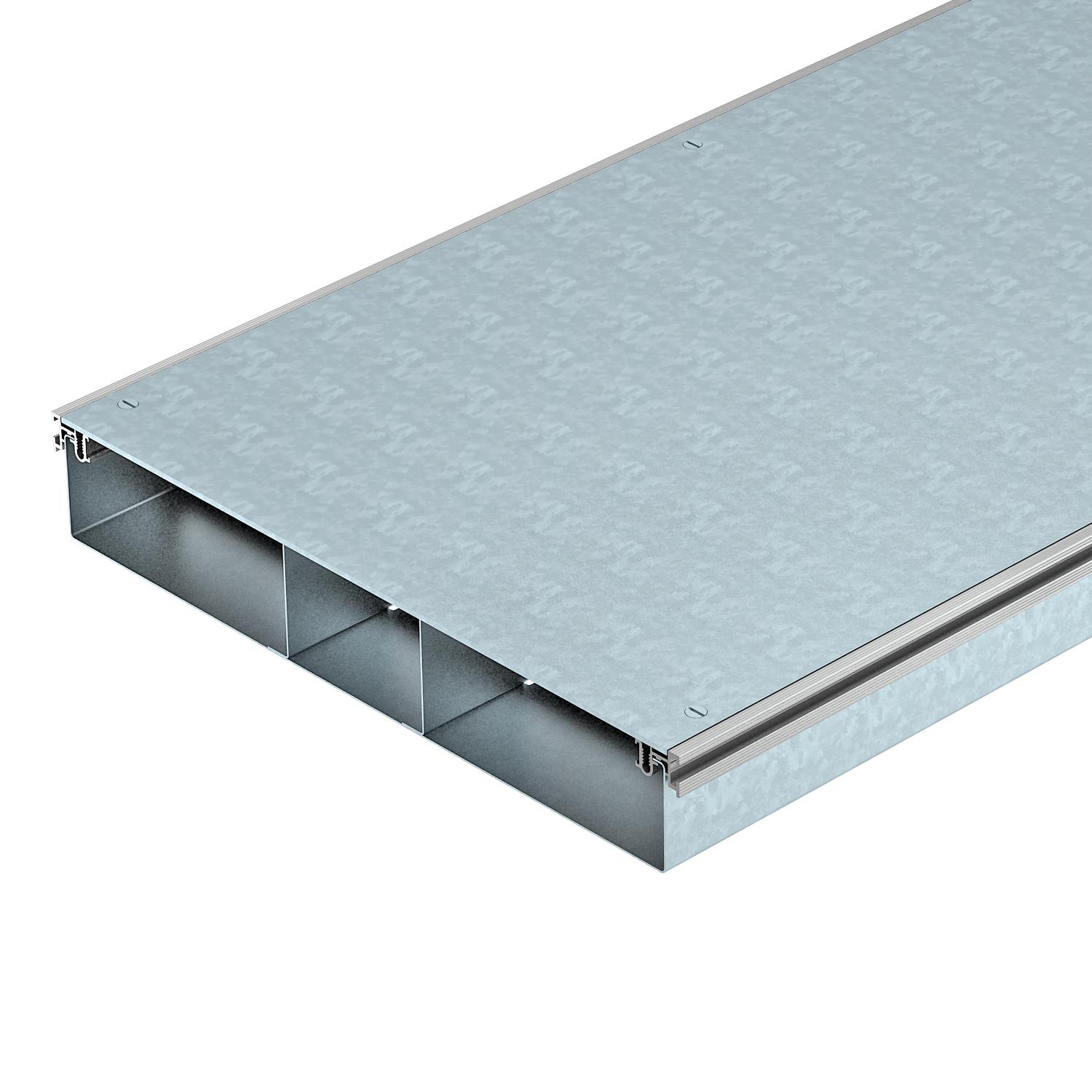

3 compartment flush floor trunking with 3 blind lids. Trunking unit consists of trunking connectors, fixing brackets and separating retainers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Decouplable no

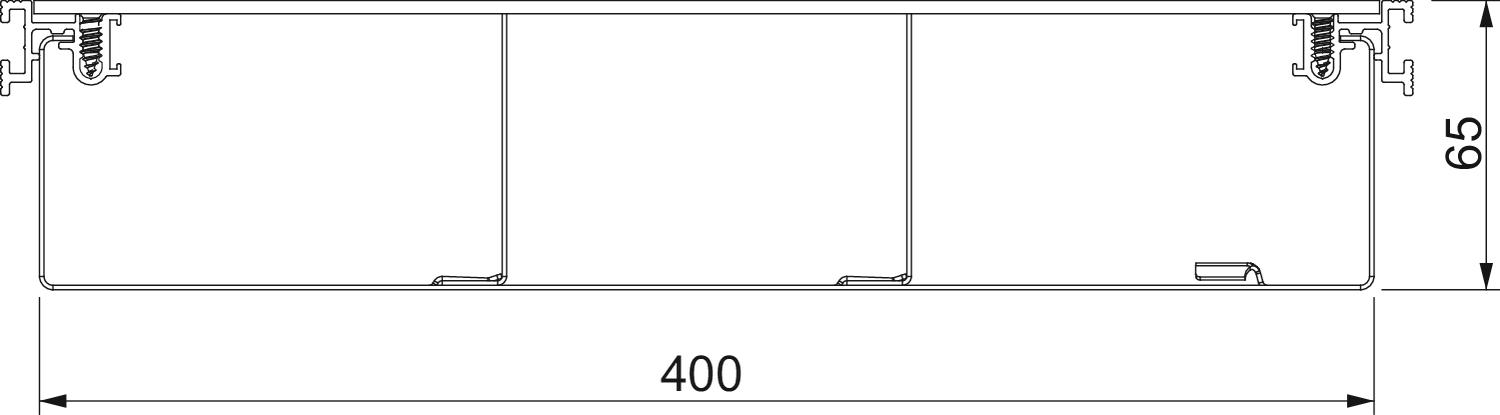

Dimension 2400x400x65
Dimension b 400 mm
Dimension h 65 mm
Expansion option For installation of accessories
Heavy-duty version no
Height 65 mm
Installation opening for on-floor tank no
Length 2400 mm
Material Steel
Mounting opening Without
Number of compartments 3 St.
Removable cover yes
Seal installation option no
Separating retainer fastening Lock
Suitable for expansion joint no
Surface Strip galvanized
Width 400 mm
With separating retainer yes
All types

All types

Types Item no. Quantity SSU
OKA-T 40065 7402225
1 piece
Downloads

Download

OKA-T 40065 / 7402225
Download
