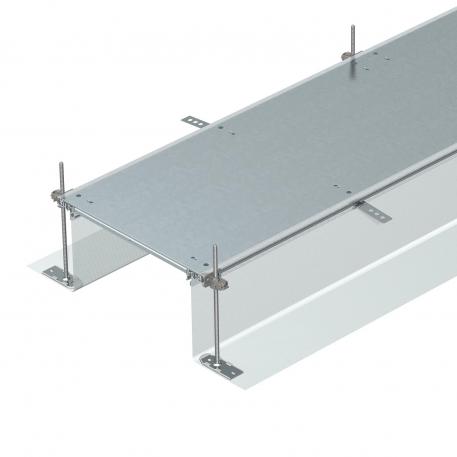

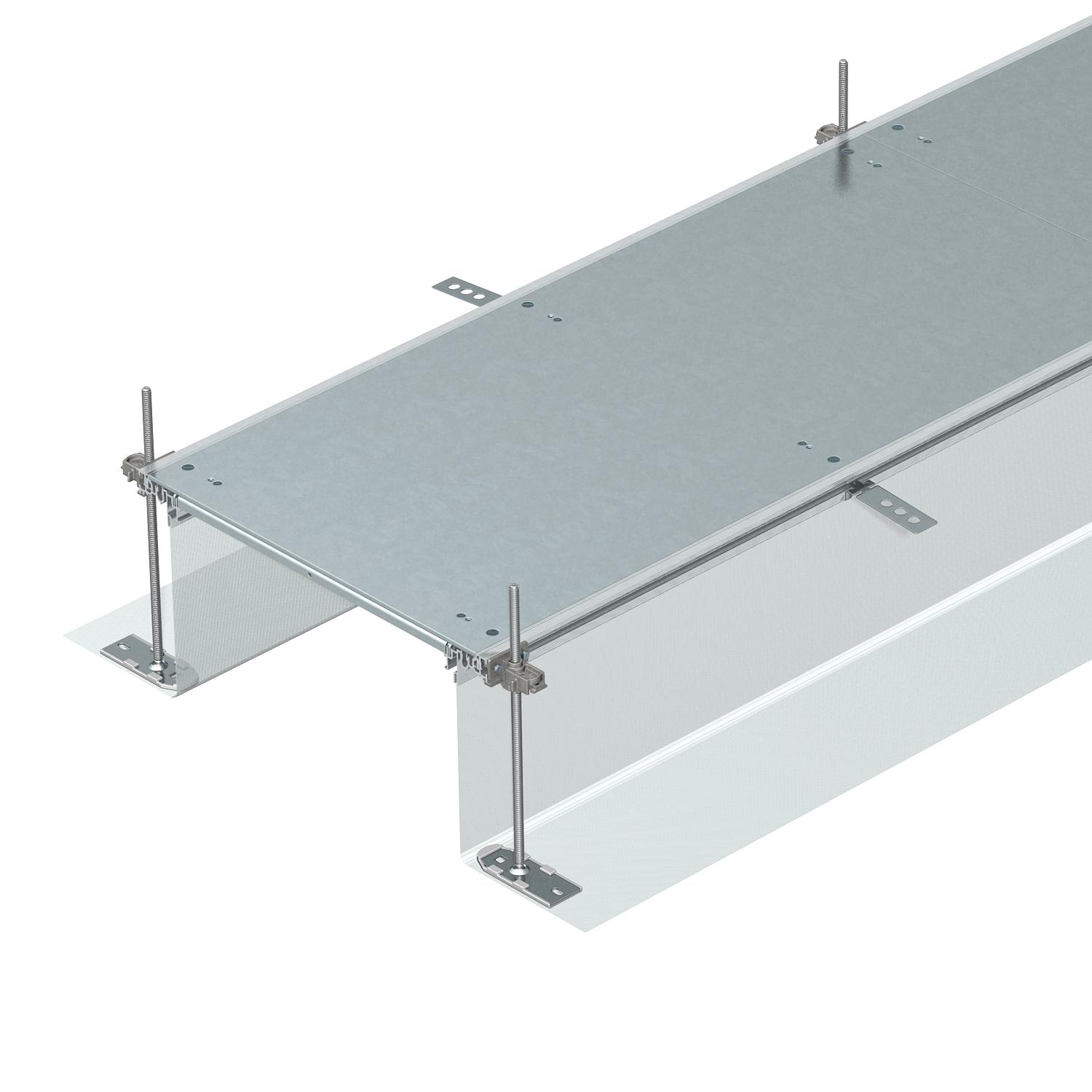

Trunking unit, blank, locking, height 40−240 2400 | 300 | 40 | 240 | 3

Trunking unit, blank, locking, height 40−240

Item no. 7424062 | EAN 4012195243236

Item no. / Types

Length	2400 mm

Width

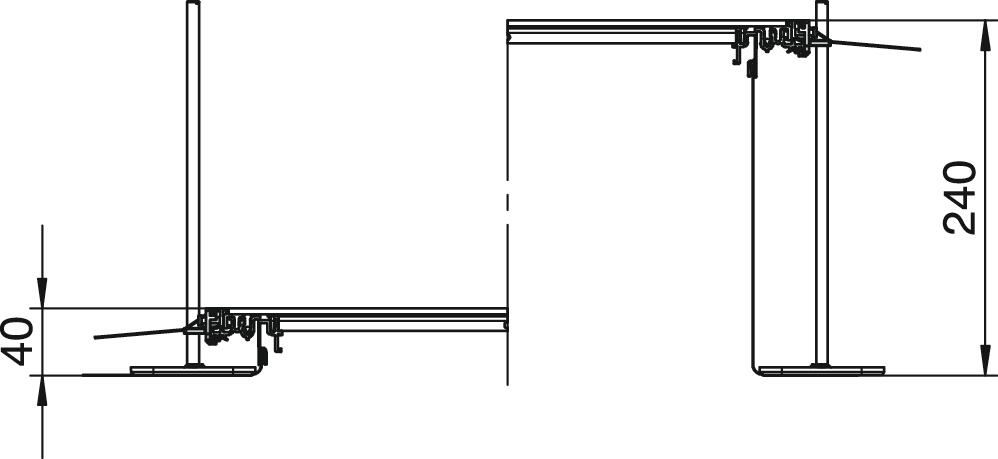

Duct height, min.	40 mm

Trunking height, max.	240 mm

Covers	3

Product description

Product description

Ready-to-mount trunking unit for cable routing consisting of 3 self-locking blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and 3 lid butt seals (for nominal trunking widths 200, 300 and 400) or 6 lid butt supports (for nominal trunking widths 500 and 600). The essential levelling units (observe height adjustment) for the 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. The trunking lids are screwed up to and including the nominal width 400, pre-mounted with locking springs.

Technical data

Technical data

Cover fastening, locking	yes
Cover material thickness	4
Covers	3
Decouplable	yes
Dimension	2400x300x240
Duct height, min.	40 mm
Floor care	Wet
Floor plate	no
Height-adjustment range, max.	240 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel

Minimum screed height	40
Mounting opening	Without
Mounting opening cover	no
Removable cover	yes
Seal installation option	yes
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	240 mm
Width	300 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-G20040240R	2400 mm	200 mm	40 mm	240 mm	3	7424060	m	2,4 m
OKA-G30040240R	2400 mm	300 mm	40 mm	240 mm	3	7424062	m	2,4 m
OKA-G40040240R	2400 mm	400 mm	40 mm	240 mm	3	7424064	m	2,4 m
OKA-G50040240R	2400 mm	500 mm	40 mm	240 mm	3	7424066	m	2,4 m
OKA-G60040240R	2400 mm	600 mm	40 mm	240 mm	3	7424068	m	2,4 m
