Product description

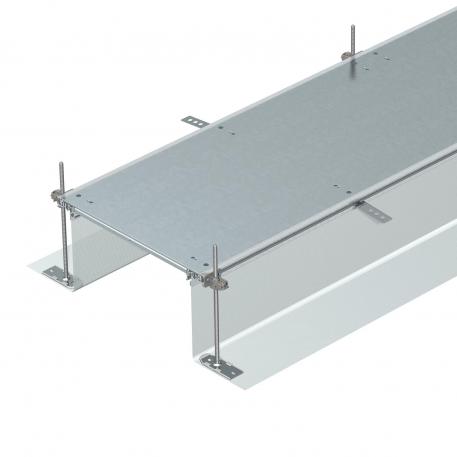

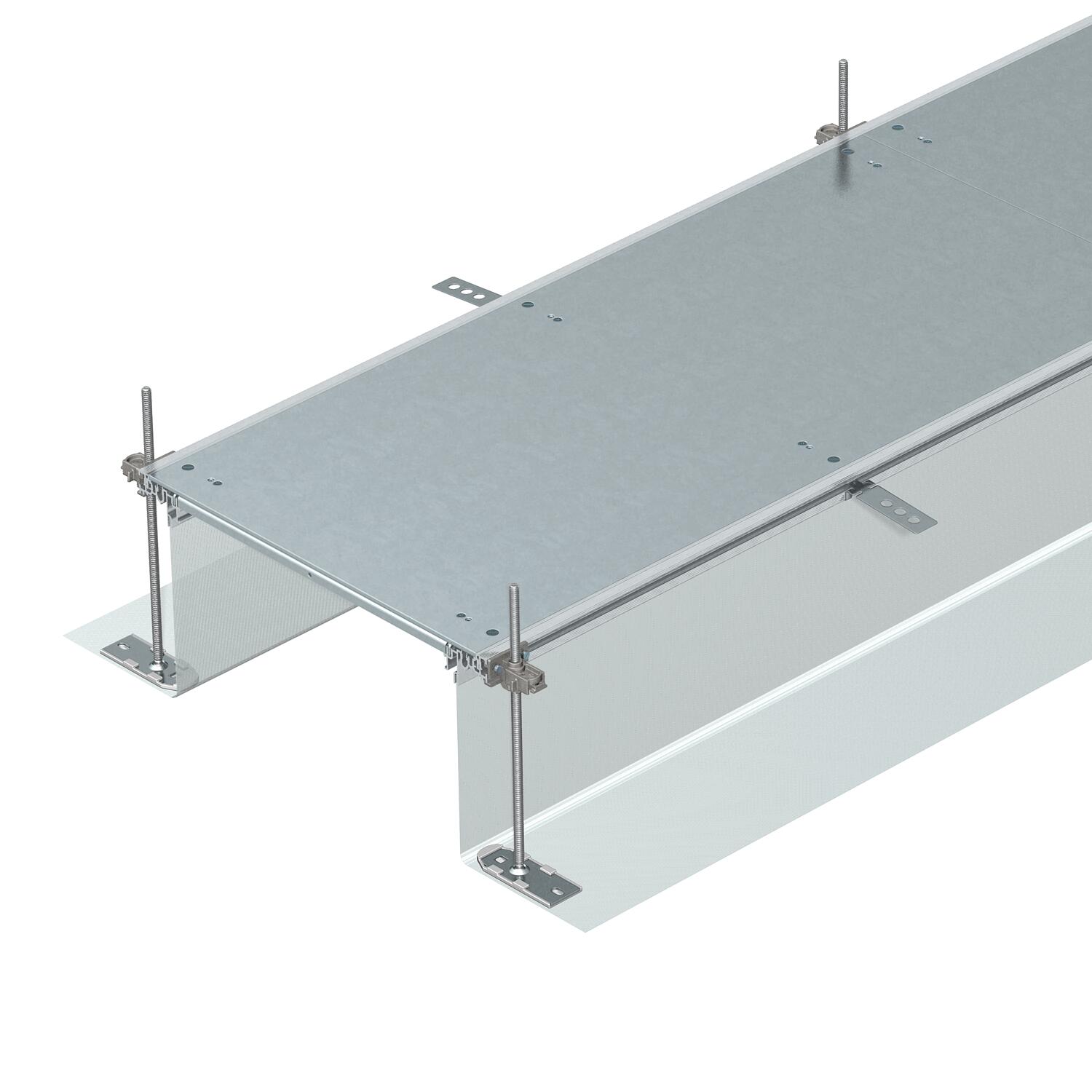

Ready-to-mount trunking unit for cable routing consisting of 3 self-locking blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and 3 lid butt seals (for nominal trunking widths 200, 300 and 400) or 6 lid butt supports (for nominal trunking widths 500 and 600). The essential levelling units (observe height adjustment) for the 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. The trunking lids are screwed up to and including the nominal width 400, pre-mounted with locking springs.
-
- Technical data
-
Technical data

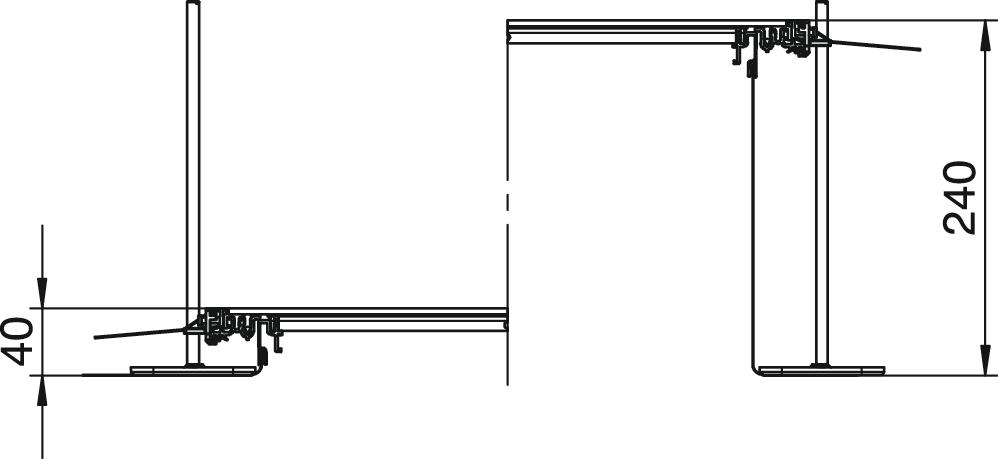

Cover fastening, locking yes Cover material thickness 4 Covers 3 Decouplable yes Dimension 2400x500x240 Duct height, min. 40 mm Floor care Wet Floor plate no Height-adjustment range, max. 240 mm Height-adjustment range, min. 40 mm Installation opening for on-floor tank no Material Steel Minimum screed height 40 Mounting opening Without Mounting opening cover no Removable cover yes Seal installation option yes Suitable for expansion joint no Surface Strip galvanized Trunking height, max. 240 mm With connection opening no With equipotential bonding no With overhang yes With separating retainer no Dimensions
Length 2400 mm Width 500 mm - All types
-
All types
- Downloads
-
Data sheet OKA-G50040240R / 7424066 , 0.16MB , pdfDeclaration of conformity OKA-G50040240R / 7424066 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdf
