Trunking unit, blank, locking, height 40−240 2400 | 600 | 40 | 240 | 3

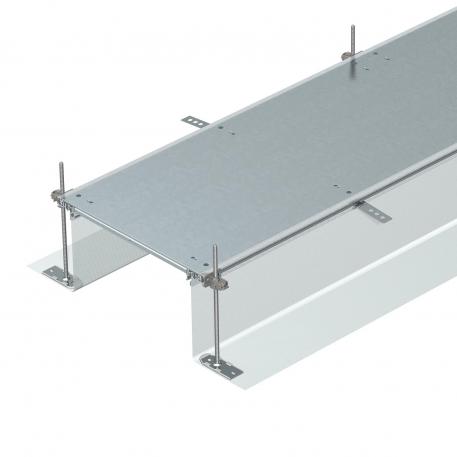

Trunking unit, blank, locking, height 40−240

Item no. 7424068 | EAN 4012195243281

Item no. / Types

Length	2400 mm

Width

Duct height, min.	40 mm

Trunking height, max.	240 mm

Covers	3

Product description

Product description

Ready-to-mount trunking unit for cable routing consisting of 3 self-locking blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and 3 lid butt seals (for nominal trunking widths 200, 300 and 400) or 6 lid butt supports (for nominal trunking widths 500 and 600). The essential levelling units (observe height adjustment) for the 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. The trunking lids are screwed up to and including the nominal width 400, pre-mounted with locking springs.

Technical data

Technical data

Cover fastening, locking	yes
Cover material thickness	4
Covers	3
Decouplable	yes
Dimension	2400x600x240
Duct height, min.	40 mm
Floor care	Wet
Floor plate	no
Height-adjustment range, max.	240 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel

Minimum screed height	40
Mounting opening	Without
Mounting opening cover	no
Removable cover	yes
Seal installation option	yes
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	240 mm
Width	600 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-G20040240R	2400 mm	200 mm	40 mm	240 mm	3	7424060	m	2,4 m
OKA-G30040240R	2400 mm	300 mm	40 mm	240 mm	3	7424062	m	2,4 m
OKA-G40040240R	2400 mm	400 mm	40 mm	240 mm	3	7424064	m	2,4 m
OKA-G50040240R	2400 mm	500 mm	40 mm	240 mm	3	7424066	m	2,4 m
OKA-G60040240R	2400 mm	600 mm	40 mm	240 mm	3	7424068	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−240 mm	OKA-G60040240FBL	7423968	piece	1 piece
Construction set for 90° angle to right, height 40−240 mm	OKA-G60040240FBR	7423988	piece	1 piece
Trunking end piece, height 40−240 mm	OKA-G60040240ES	7424308	piece	1 piece
Extension unit for GES4, height 40−240 mm	OKA-G A 40240 4	7424340	piece	1 piece
Extension unit for GES6, height 40−240 mm	OKA-G A 40240 6	7424342	piece	1 piece
Extension unit for GES9, height 40−240 mm	OKA-G A 40240 9	7424344	piece	1 piece
Extension unit for GESR9, height 40−240 mm	OKA-G A 40240R9	7424346	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	30 piece
Height adjustment unit for lid butt support, trunking height 60-110 mm	NE DSU2 6050	7424842	piece	75 piece
Height adjustment unit for lid butt support, trunking height 100-175 mm	NE DSU2 10075	7424844	piece	75 piece
Height adjustment unit for lid butt support, trunking height 170-245 mm	NE DSU2 17075	7424846	piece	75 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
Separating retainer 135 FS	TSG 135 FS	6062132	m	3 m
Suction lifter, 300 N	WZ 1029	7408634	piece	1 piece
