Trunking unit for GES4, height 100−150 mm 2400 | 300 | 100 | 150 | 3

Trunking unit for GES4, height 100−150 mm

Item no. 7424620 | EAN 4012195244714

Item no. / Types

Length	2400 mm

Width

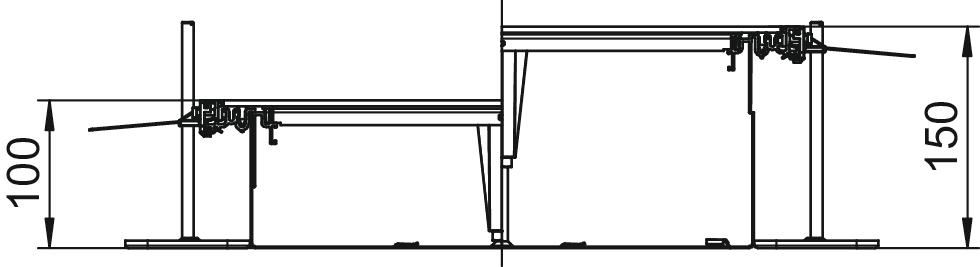

Duct height, min.	100 mm

Trunking height, max.	150 mm

Covers	3

Product description

Product description

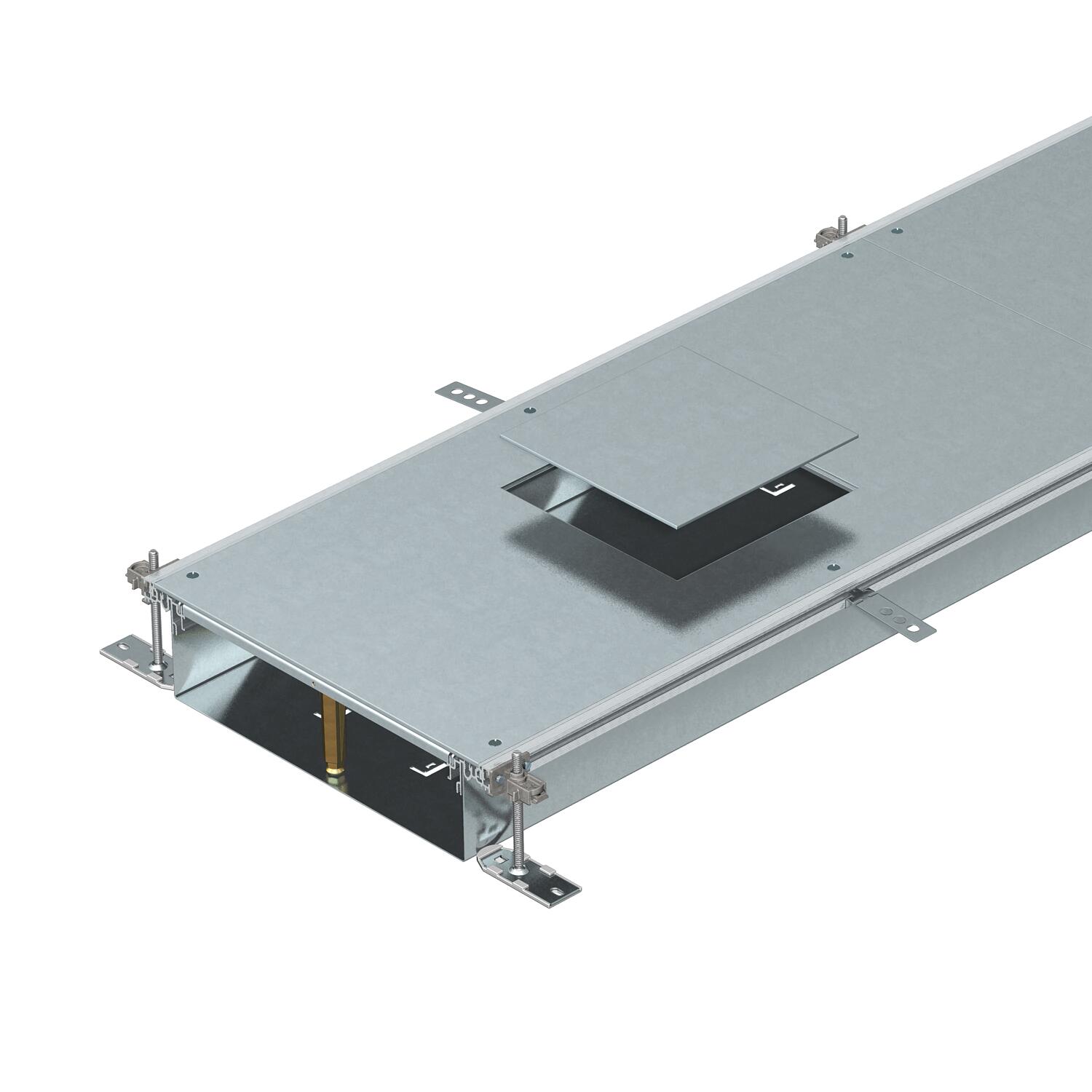

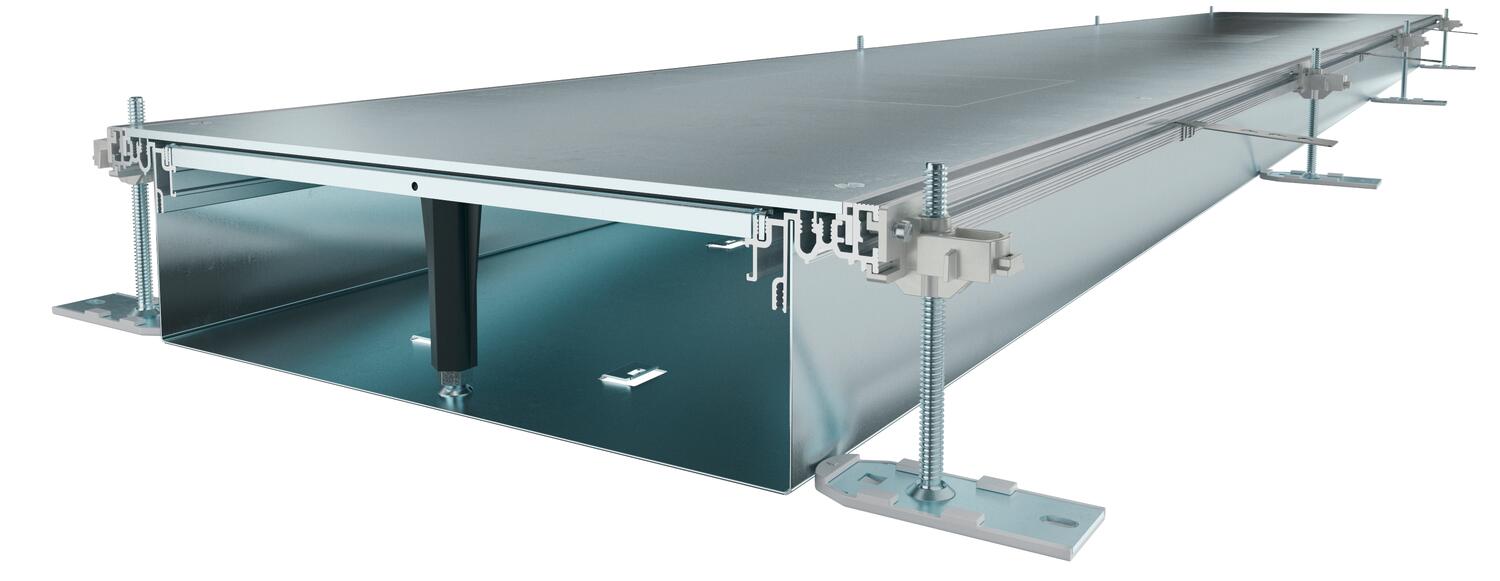

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of flush-mount units of nominal size 4, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid with blank covered mounting opening. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.

Technical data

Technical data

Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	no
Dimension	2400x300x100
Duct height, min.	100 mm
Floor plate	yes
Height-adjustment range, max.	150 mm
Height-adjustment range, min.	100 mm
Installation opening for on-floor tank	no
Material	Steel
Minimum screed height	100
Mounting opening	Square
Mounting opening	For service outlet
Mounting opening cover	yes

Nominal size for device installation units	4
Number of compartments	3 St.
Number of insertable partitions	2
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Separating retainer fastening	Plug
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	150 mm
With connection opening	yes
With equipotential bonding	no
With overhang	yes
With separating retainer	no

Dimensions

Length	2400 mm

Width	300 mm

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-W30010050D4	2400 mm	300 mm	100 mm	150 mm	3	7424620	m	2,4 m
OKA-W40010050D4	2400 mm	400 mm	100 mm	150 mm	3	7424622	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−240 mm	OKA-G30040240FBL	7423962	piece	1 piece
Construction set for 90° angle to right, height 40−240 mm	OKA-G30040240FBR	7423982	piece	1 piece
Trunking end piece, height 40−240 mm	OKA-G30040240ES	7424302	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	1 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
