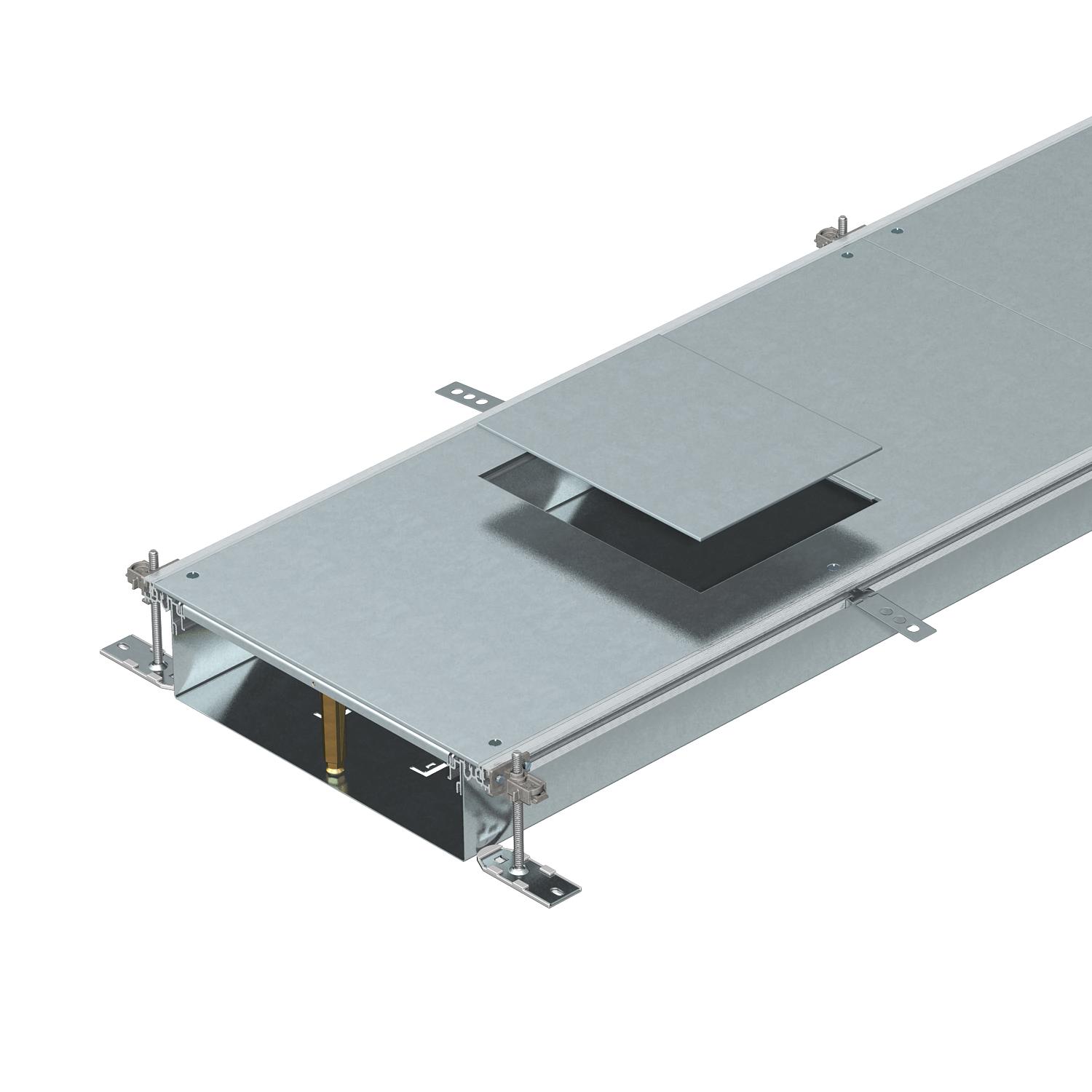

Trunking unit for GES6, height 100−150 mm 2400 | 400 | 100 | 150 | 3

Trunking unit for GES6, height 100−150 mm

Item no. 7424682 | EAN 4012195244783

Item no. / Types	7424682 / OKA-W40010050D6

Length	2400 mm

Width	400 mm

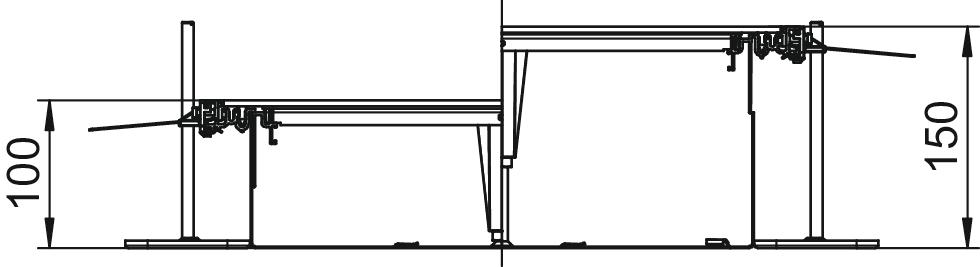

Duct height, min.	100 mm

Trunking height, max.	150 mm

Covers	3

Product description

Product description

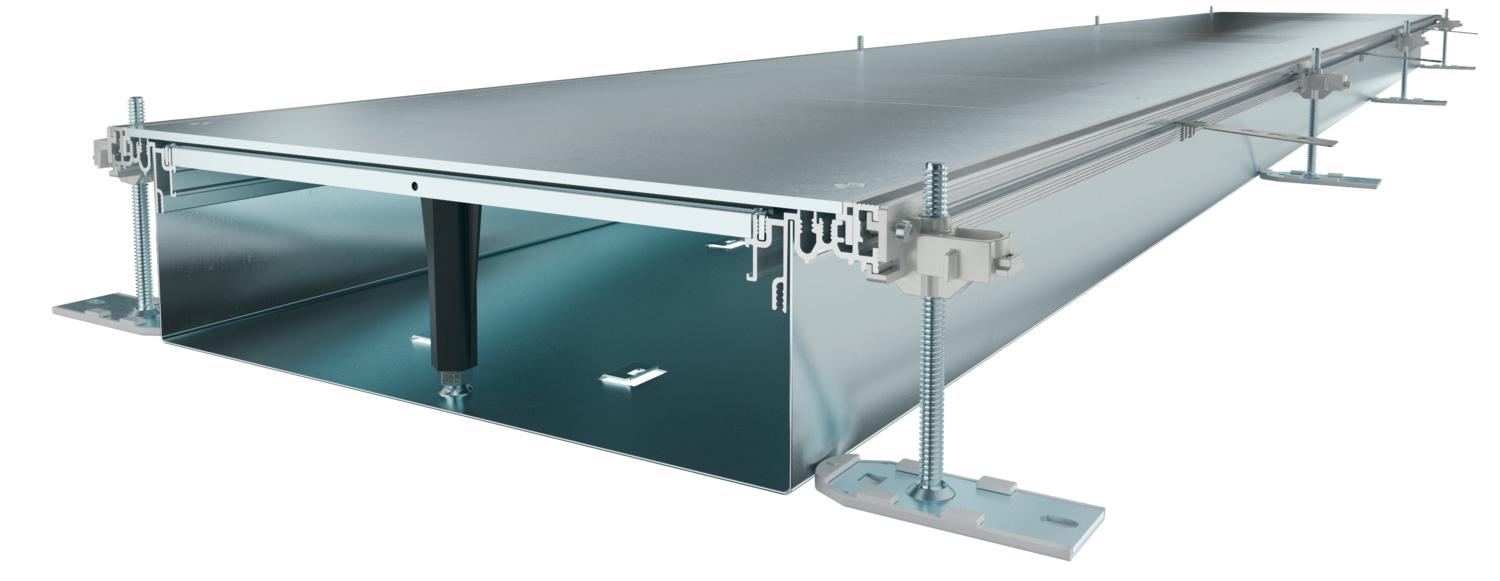

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of installation units of nominal size 6, consisting of the trunking base (floor trough with side and floor covering guide profiles) and trunking lid with blank mounting opening. Floor trough with holding shackles for self-contacting mounting of dividers. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 or six height-adjustable cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.

Technical data

Technical data

Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	no
Dimension	2400x400x100
Duct height, min.	100 mm
Floor plate	yes
Height-adjustment range, max.	150 mm
Height-adjustment range, min.	100 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	100
Mounting opening	Square
Mounting opening	For service outlet
Mounting opening cover	yes

Nominal size for device installation units	6
Number of compartments	3 St.
Number of insertable partitions	2
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Separating retainer fastening	Plug
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	150 mm
Width	400 mm
With connection opening	yes
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-W40010050D6	2400 mm	400 mm	100 mm	150 mm	3	7424682	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−240 mm	OKA-G40040240FBL	7423964	piece	1 piece
Construction set for 90° angle to right, height 40−240 mm	OKA-G40040240FBR	7423984	piece	1 piece
Trunking end piece, height 40−240 mm	OKA-G40040240ES	7424304	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	30 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer, trunking height 100 mm	OKA2 TW 100	7401960	m	2,4 m
Separating retainer, trunking height 40 mm	OKA2 TW 40	7401988	m	2,4 m
Separating retainer, trunking height 50 mm	OKA2 TW 50	7401992	m	2,4 m
Separating retainer, trunking height 60 mm	OKA2 TW 60	7401996	m	2,4 m
Separating retainer, trunking height 70 mm	OKA2 TW 70	7402000	m	2,4 m
Separating retainer, trunking height 80 mm	OKA2 TW 80	7402004	m	2,4 m
Separating retainer, trunking height 90 mm	OKA2 TW 90	7402008	m	2,4 m
Suction lifter, 300 N	WZ 1029	7408634	piece	1 piece
