Trunking unit for GES9, height 40−240 mm 2400 | 400 | 40 | 240 | 3

Trunking unit for GES9, height 40−240 mm

Item no. 7424220 | EAN 4012195243687

Item no. / Types

Length	2400 mm

Width

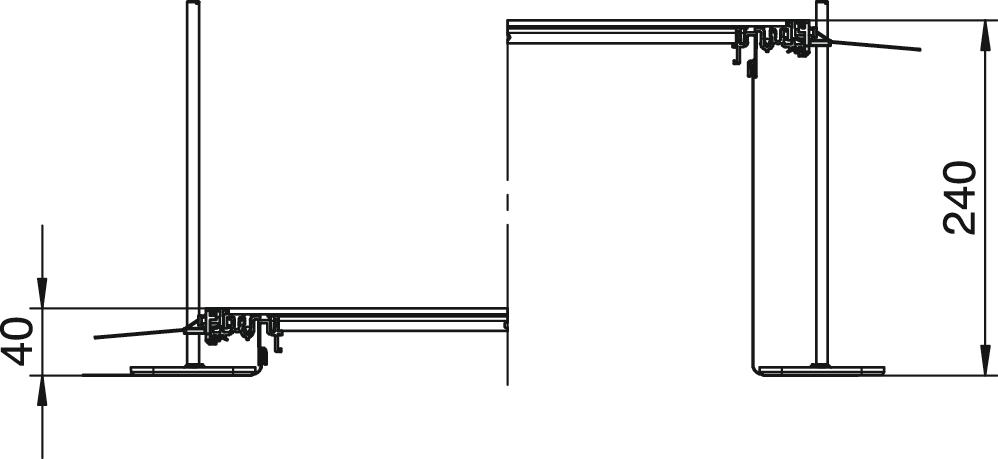

Duct height, min.	40 mm

Trunking height, max.	240 mm

Covers

Product description

Product description

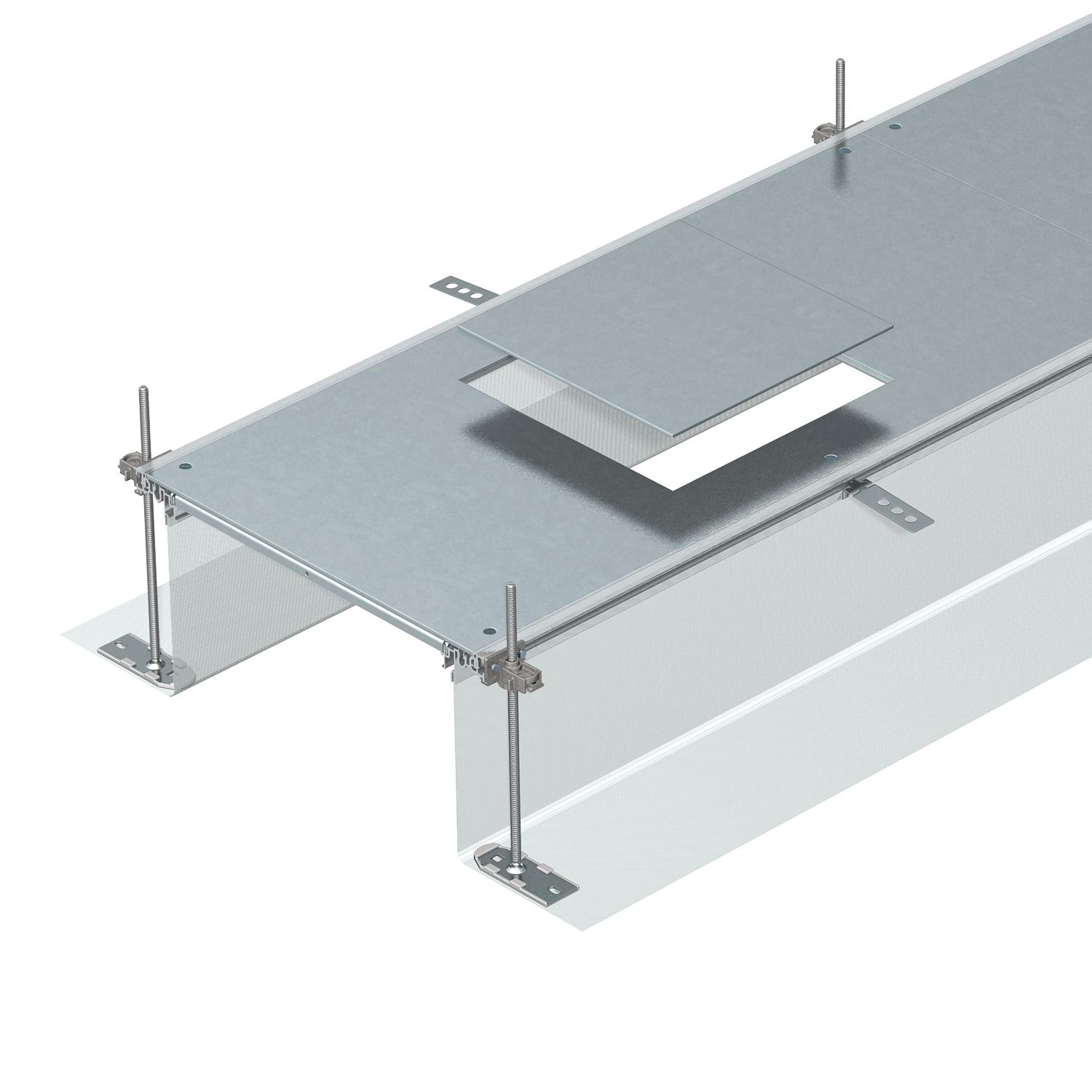

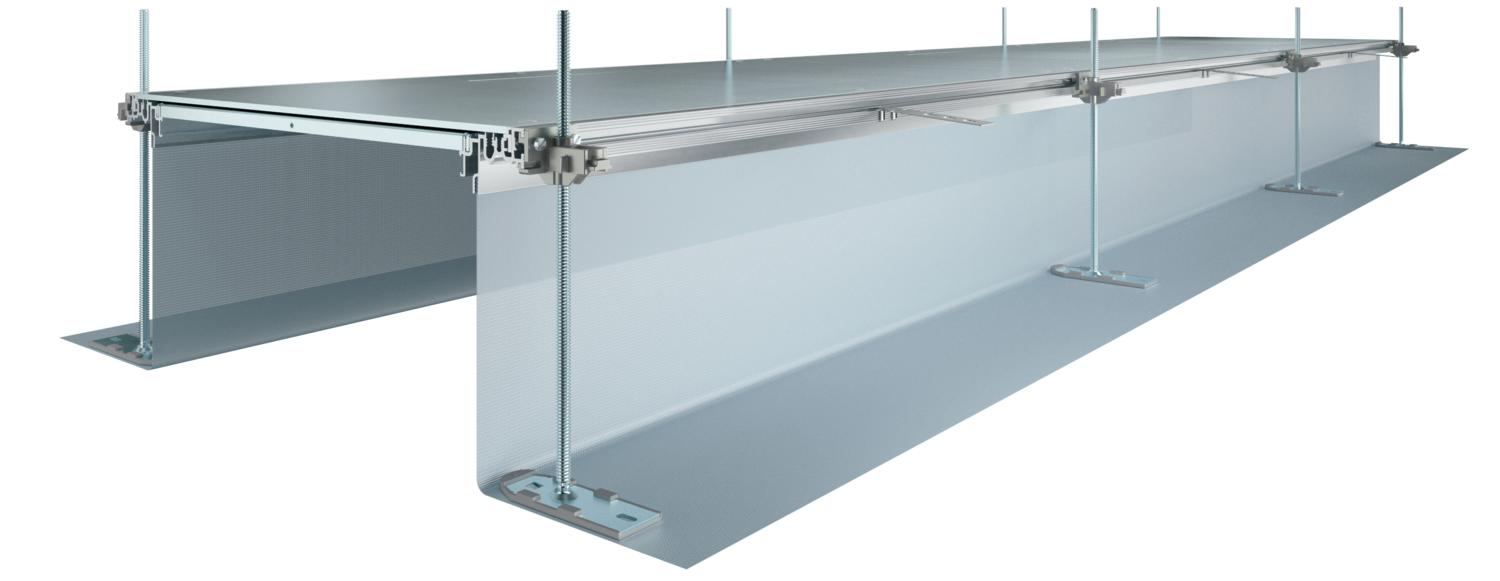

Ready-to-mount screed-flush trunking unit for cable routing, consisting of three system covers, two side profiles with attached flexible side wall made of metallic mesh, floor covering contact profiles with H = 3 mm. For dry interior rooms with dry-care floors. Also suitable for wet-care floors with appropriate system accessories. The scope of delivery contains six height-adjustable fastening brackets, six screed ties and three lid butt seals for nominal trunking widths 200, 300 and 400 or six lid butt supports for trunking widths 500 and 600. The essential levelling units (please observe adjustment height) for the lid butt supports 400, 500 and 600 are not contained in the scope of supply, please order separately. On delivery, the trunking lids are screwed on.

Technical data

Technical data

Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	yes
Dimension	2400x400x240
Duct height, min.	40 mm
Floor plate	no
Height-adjustment range, max.	240 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	40
Mounting opening	Square

Mounting opening	For service outlet
Mounting opening cover	yes
Nominal size for device installation units	9
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	240 mm
Width	400 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-G40040240D9	2400 mm	400 mm	40 mm	240 mm	3	7424220	m	2,4 m
OKA-G50040240D9	2400 mm	500 mm	40 mm	240 mm	6	7424222	m	2,4 m
OKA-G60040240D9	2400 mm	600 mm	40 mm	240 mm	6	7424224	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−240 mm	OKA-G40040240FBL	7423964	piece	1 piece
Construction set for 90° angle to right, height 40−240 mm	OKA-G40040240FBR	7423984	piece	1 piece
Trunking end piece, height 40−240 mm	OKA-G40040240ES	7424304	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	30 piece
Height adjustment unit for lid butt support, trunking height 60-110 mm	NE DSU2 6050	7424842	piece	75 piece
Height adjustment unit for lid butt support, trunking height 100-175 mm	NE DSU2 10075	7424844	piece	75 piece
Height adjustment unit for lid butt support, trunking height 170-245 mm	NE DSU2 17075	7424846	piece	75 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
Separating retainer 135 FS	TSG 135 FS	6062132	m	3 m
Suction lifter, 300 N	WZ 1029	7408634	piece	1 piece
