Trunking unit for GES9, height 65 mm

Item no. 7402226 | EAN 4012196434442

Product description

Product description

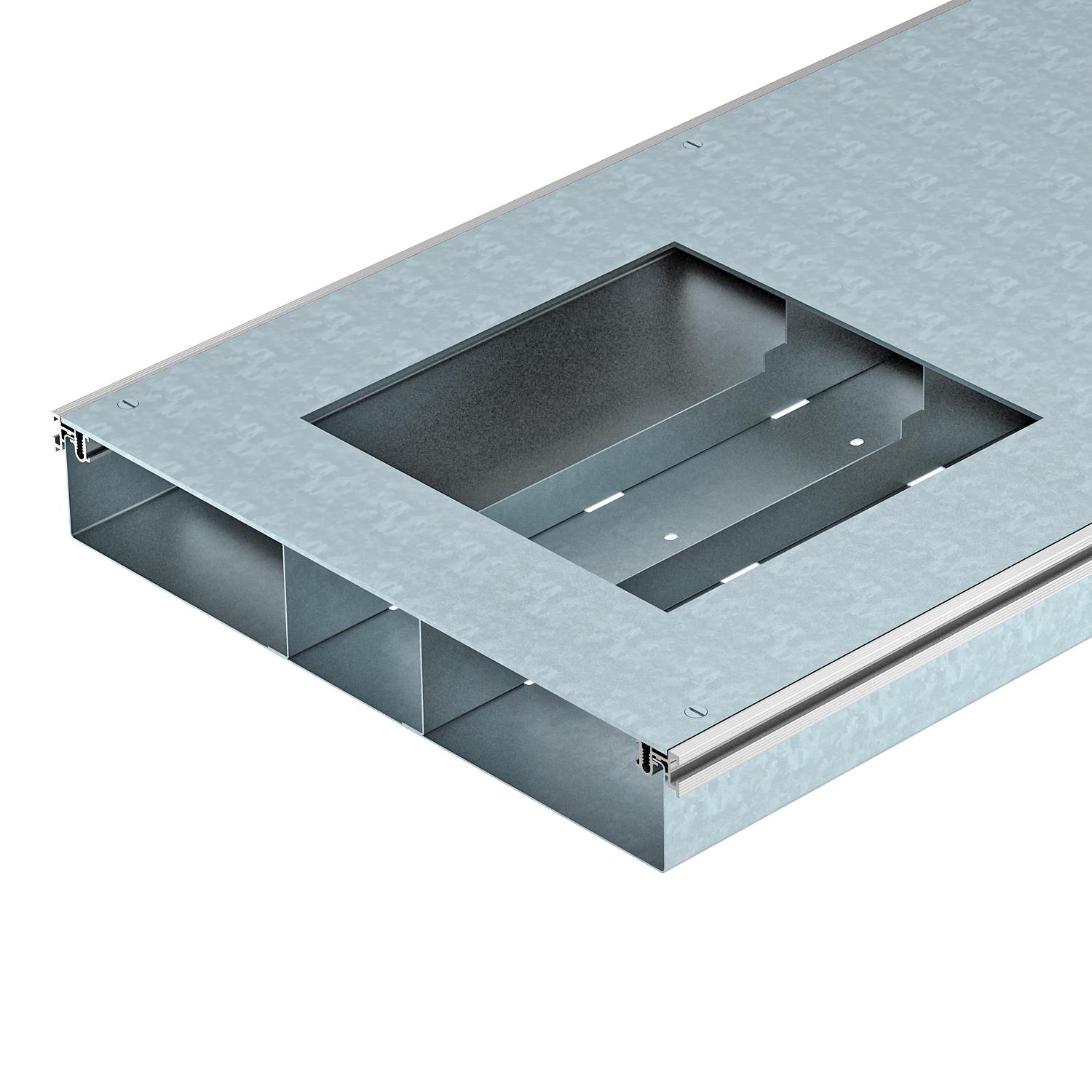

3 compartment flush floor trunking with 3 mounting lids for GES9. Trunking unit consists of trunking connectors, fixing brackets and separating retainers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Decouplable no

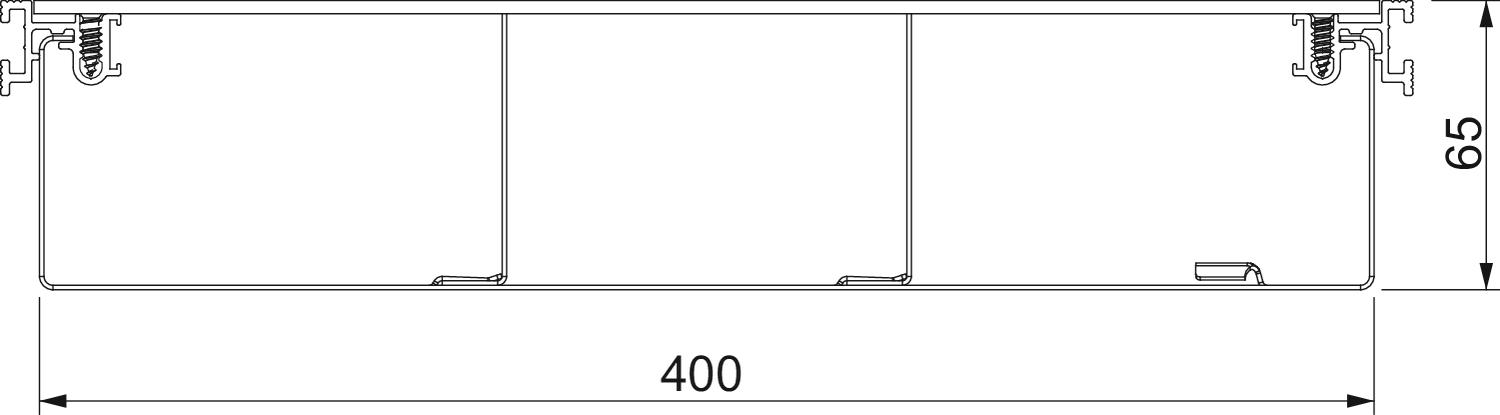

Dimension 2400x400x65
Dimension b 400 mm
Dimension h 65 mm
Expansion option For installation of accessories
Heavy-duty version no
Height 65 mm
Installation opening for on-floor tank no
Length 2400 mm
Material Steel
Mounting opening Square
Mounting opening For service outlet
Number of compartments 3 St.
Number of mounting openings 3
Number of planned flush-mount units 3
Removable cover yes
Seal installation option no
Separating retainer fastening Lock
Suitable for expansion joint no
Surface Strip galvanized
Width 400 mm
With separating retainer yes
All types

All types

Types Item no. Quantity SSU
OKA-T 40065 D9 7402226
1 piece
