Trunking unit for GESR9, height 100−150 mm
Item no. 7424800 | EAN 4012195245049
- Product description
-

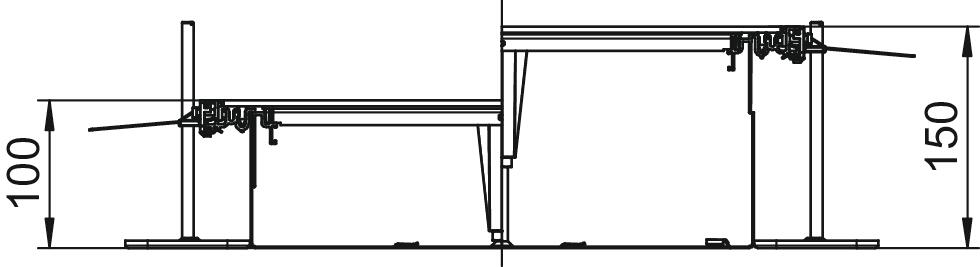

Product descriptionReady-to-mount trunking unit with three or six device installation lids for cable laying and the installation of flush-mount units of nominal size R9, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid with blank covered mounting opening. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.
-
- Technical data
-
Technical data
Cover fastening, locking no Cover material thickness 4 Covers 3 Decouplable no Dimension 2400x400x100 Duct height, min. 100 mm Floor plate yes Height-adjustment range, max. 150 mm Height-adjustment range, min. 100 mm Installation opening for on-floor tank no Length 2400 mm Material Steel Minimum screed height 100 Mounting opening For service outlet Mounting opening Round Mounting opening cover yes Number of compartments 3 St. Number of insertable partitions 2 Number of planned flush-mount units 3 Removable cover yes Seal installation option yes Suitable for expansion joint no Surface Strip galvanized Trunking height, max. 150 mm Width 400 mm With connection opening yes With equipotential bonding no With overhang yes With separating retainer no - All types
- Downloads
-
Data sheet OKA-W40010050DR9 / 7424800 , 0.17MB , pdfEU declaration of conformity OKA-W40010050DR9 / 7424800 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdfNo invitation to tender text is available for this product.
