Trunking unit for GESR9, height 40−140 mm 2400 | 600 | 40 | 140 | 6

Trunking unit for GESR9, height 40−140 mm

Item no. 7424246 | EAN 4012195243755

Item no. / Types	7424246 / OKA-G60040140DR9

Length	2400 mm

Width	600 mm

Duct height, min.	40 mm

Trunking height, max.	140 mm

Covers	6

Product description

Product description

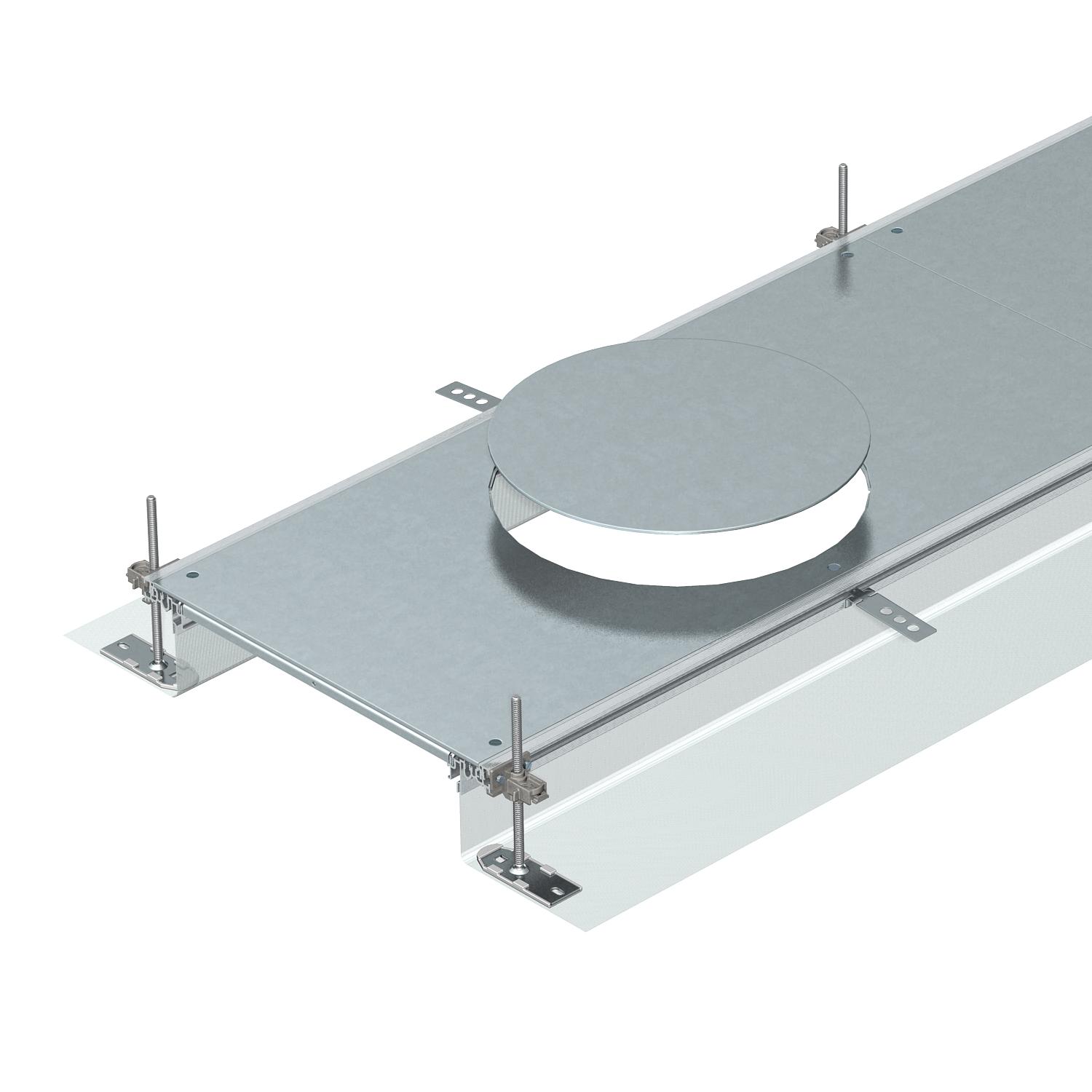

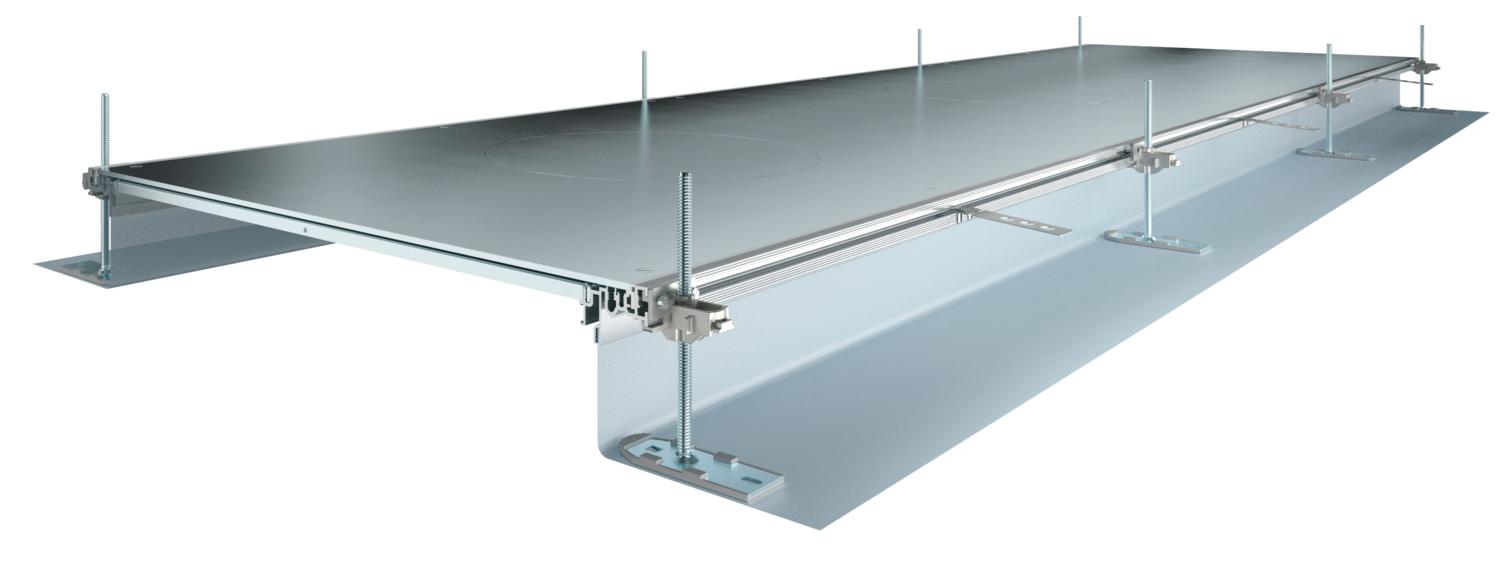

Ready-to-mount trunking unit with six device installation lids for cable laying and the installation of installation units of nominal size R9, consisting of two side profiles with attached flexible metal mesh side wall, floor covering guide profiles and trunking lid with blank mounting opening. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 and six cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.

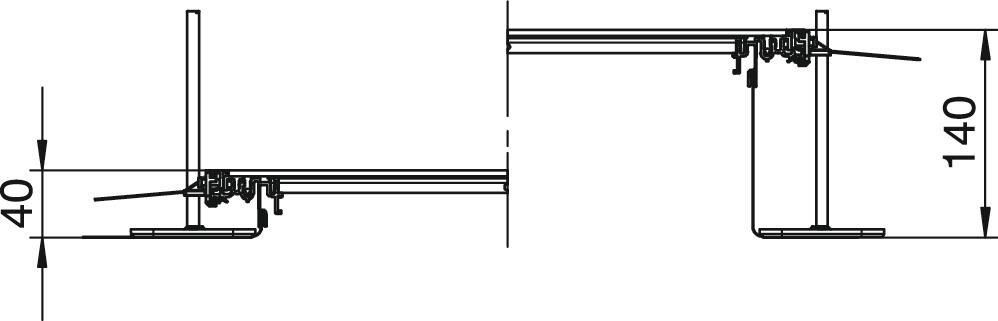

Technical data

Technical data

Cover fastening, locking	no
Cover material thickness	4
Covers	6
Decouplable	yes
Dimension	2400x600x140
Duct height, min.	40 mm
Floor plate	no
Height-adjustment range, max.	140 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	40
Mounting opening	Round

Mounting opening	For service outlet
Mounting opening cover	yes
Nominal size for device installation units	R9
Number of planned flush-mount units	6
Removable cover	yes
Seal installation option	yes
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	140 mm
Width	600 mm
With connection opening	yes
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Duct height, min.	Trunking height, max.	Covers	Item no.	Quantity	SSU
OKA-G60040140DR9	2400 mm	600 mm	40 mm	140 mm	6	7424246	m	2,4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Construction set for 90° angle to left, height 40−150 mm	OKA-G60040150FBL	7423958	piece	1 piece
Construction set for 90° angle to right, height 40−150 mm	OKA-G60040150FBR	7423978	piece	1 piece
Trunking end piece, height 40−150 mm	OKA-G60040150ES	7424288	piece	1 piece
Construction set for trunking T branch and intersection	OKA FB2 TX	7424821	piece	30 piece
Height adjustment unit for lid butt support, trunking height 40-70 mm	NE DSU2 4030	7424840	piece	75 piece
Height adjustment unit for lid butt support, trunking height 60-110 mm	NE DSU2 6050	7424842	piece	75 piece
Height adjustment unit for lid butt support, trunking height 100-175 mm	NE DSU2 10075	7424844	piece	75 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
Separating retainer 135 FS	TSG 135 FS	6062132	m	3 m
Suction lifter, 300 N	WZ 1029	7408634	piece	1 piece
