Trunking unit for GESR9, height 40−240 mm
Item no. 7424264 | EAN 4012195243786
- Product description
-
Product description

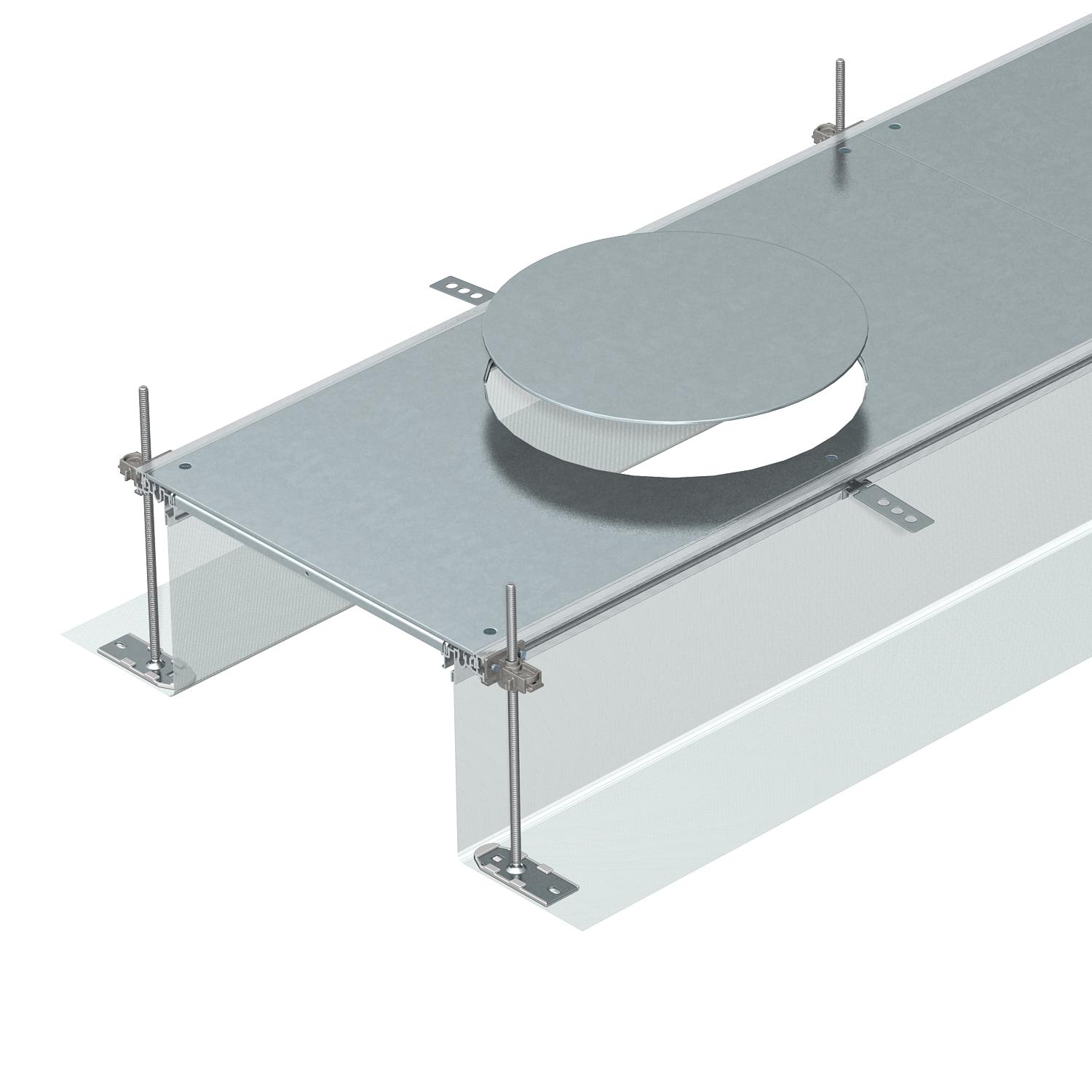

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of installation units of nominal size R9, consisting of two side profiles with attached flexible metal mesh side wall, floor covering guide profiles and trunking lid with blank mounting opening. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 and six cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.
-
- Technical data
-
Technical data

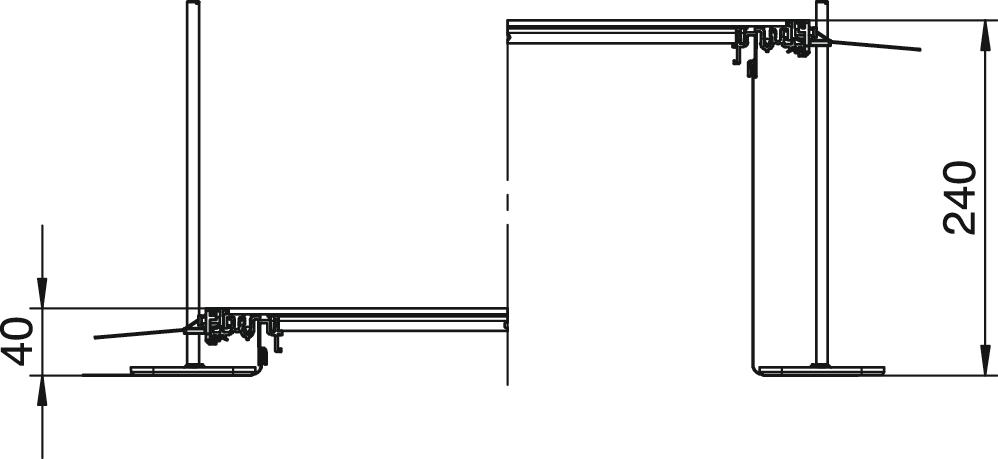

Cover fastening, locking no Cover material thickness 4 Covers 6 Decouplable yes Dimension 2400x600x240 Duct height, min. 40 mm Floor plate yes Height-adjustment range, max. 240 mm Height-adjustment range, min. 40 mm Installation opening for on-floor tank no Material Steel Minimum screed height 40 Mounting opening For service outlet Mounting opening Round Mounting opening cover yes Number of planned flush-mount units 6 Removable cover yes Seal installation option yes Suitable for expansion joint no Surface Strip galvanized Trunking height, max. 240 mm With connection opening yes With equipotential bonding no With overhang yes With separating retainer no Dimensions
Length 2400 mm Width 600 mm - All types
- Downloads
-
Data sheet OKA-G60040240DR9 / 7424264 , 0.20MB , pdfDeclaration of conformity OKA-G60040240DR9 / 7424264 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdfNo invitation to tender text is available for this product.
