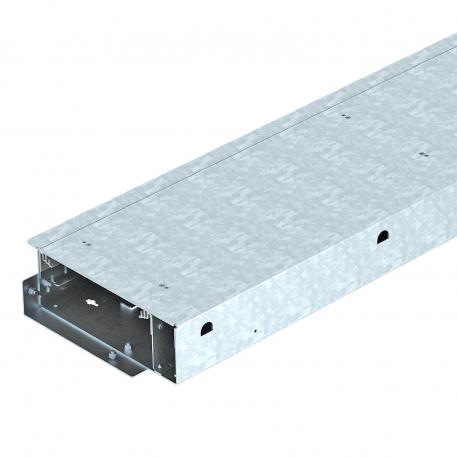

Trunking unit with blanking lid 2000 | 250

Trunking unit with blanking lid

Item no. 7403818 | EAN 4012195862079

Item no. / Types	7403818 / OKB U 25085 BD

Length	2000 mm

Width	250 mm

Product description

Product description

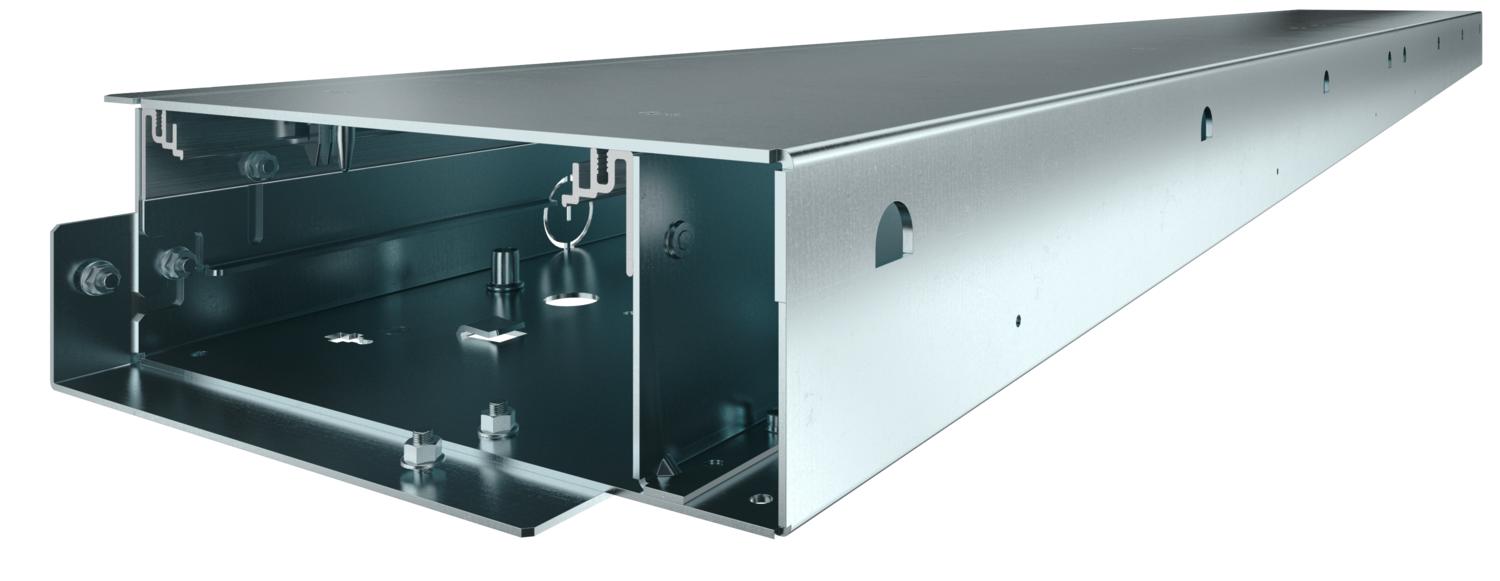

Ready-to-mount trunking unit for cable routing and device installation, consisting of a trunking base with two blanking covers. The scope of delivery contains two lid butt seals and one connector. For height adjustment, six height adjustment units are required. Load capacity up to a maximum of 5 kN. The trunking unit can be supplemented with an adjustable floor covering contact profile for screed limitation in areas of door frames and in front of radiator niches.

Technical data

Technical data

Cover fastening, locking	no
Cross-section, draw a	4231 mm²
Cross-section, draw b	7306 mm²
Decouplable	yes

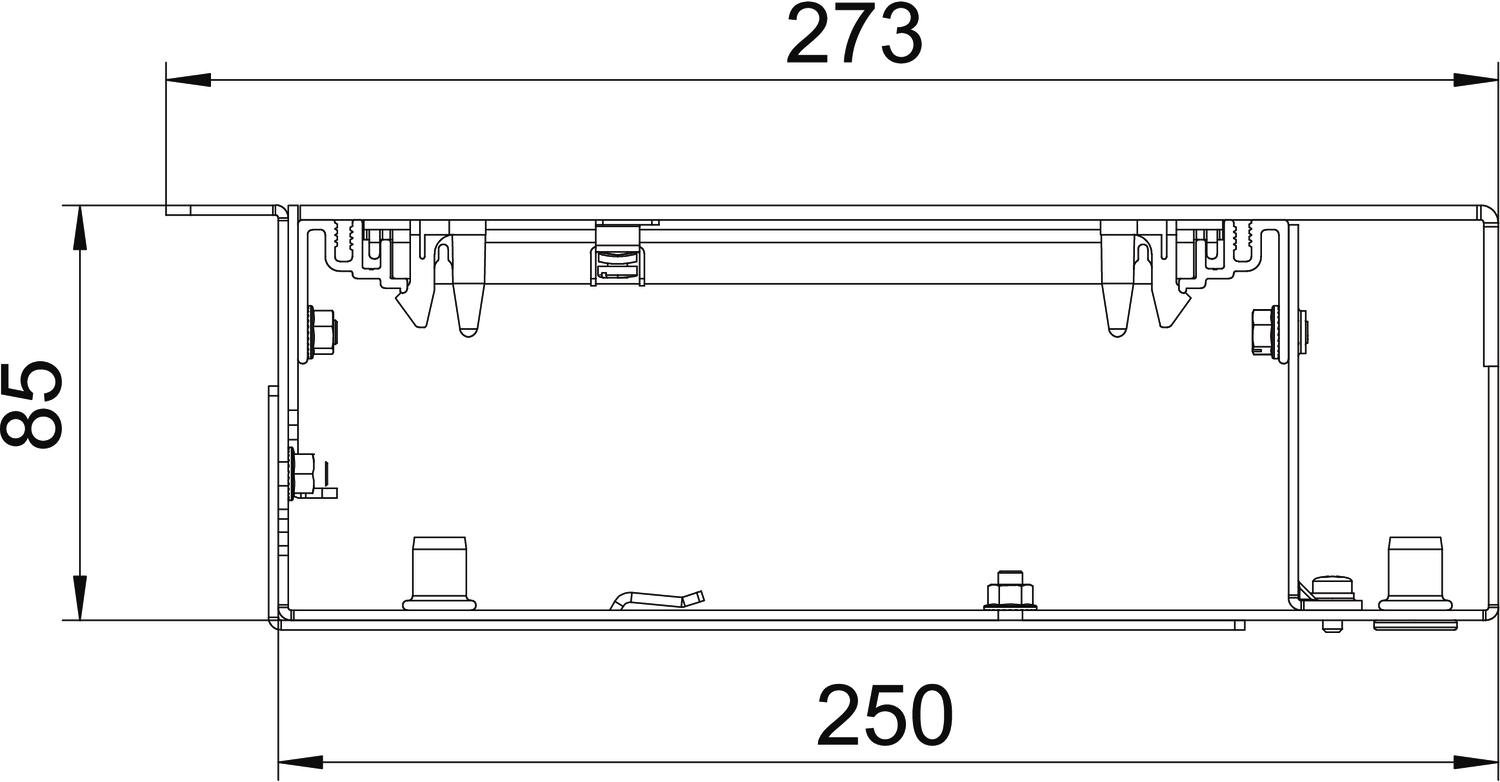

Dimension	2000x273x85
Dimension h	85 mm
Floor care	Dry
Floor plate	yes
Height	93 mm
Installation opening for on-floor tank	no
Length	2000 mm
Material	Steel
Minimum screed height	93
Mounting opening	Without

Mounting opening cover	no
Number of compartments	2 St.
Removable cover	yes
Seal installation option	no
Separating retainer fastening	Plug
Suitable for expansion joint	no
Surface	Strip galvanized
Vertical load, large area	to 5,000 N
Vertical load, small area	to 3,000 N
Width	250 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no

All types

All types

Types	Length	Width	Item no.	Quantity	SSU
OKB U 25085 BD	2000 mm	250 mm	7403818	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Trunking end piece	OKB ES 25085	7403820	piece	20 piece
Internal corner, without height adjustment unit	OKB IE 25085 ON	7403826	piece	1 piece
External corner, without height adjustment unit	OKB AE 25085 ON	7403831	piece	1 piece
T piece, without height adjustment units	OKB TS 25085 ON	7403836	piece	1 piece
Separating retainer OKB	OKB TW 85240	7403841	piece	50 piece
Device support	OKB IT	7403850	piece	20 piece
Wall penetration	OKB WD 25085	7403890	piece	1 piece
Profile for screed limitation	OKB EP 1000	7403895	piece	1 piece
Height adjustment unit RKNEV2	RK NEV2 70	7405814	PU	10 PU
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm	UT4 45 4	7408727	piece	5 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
