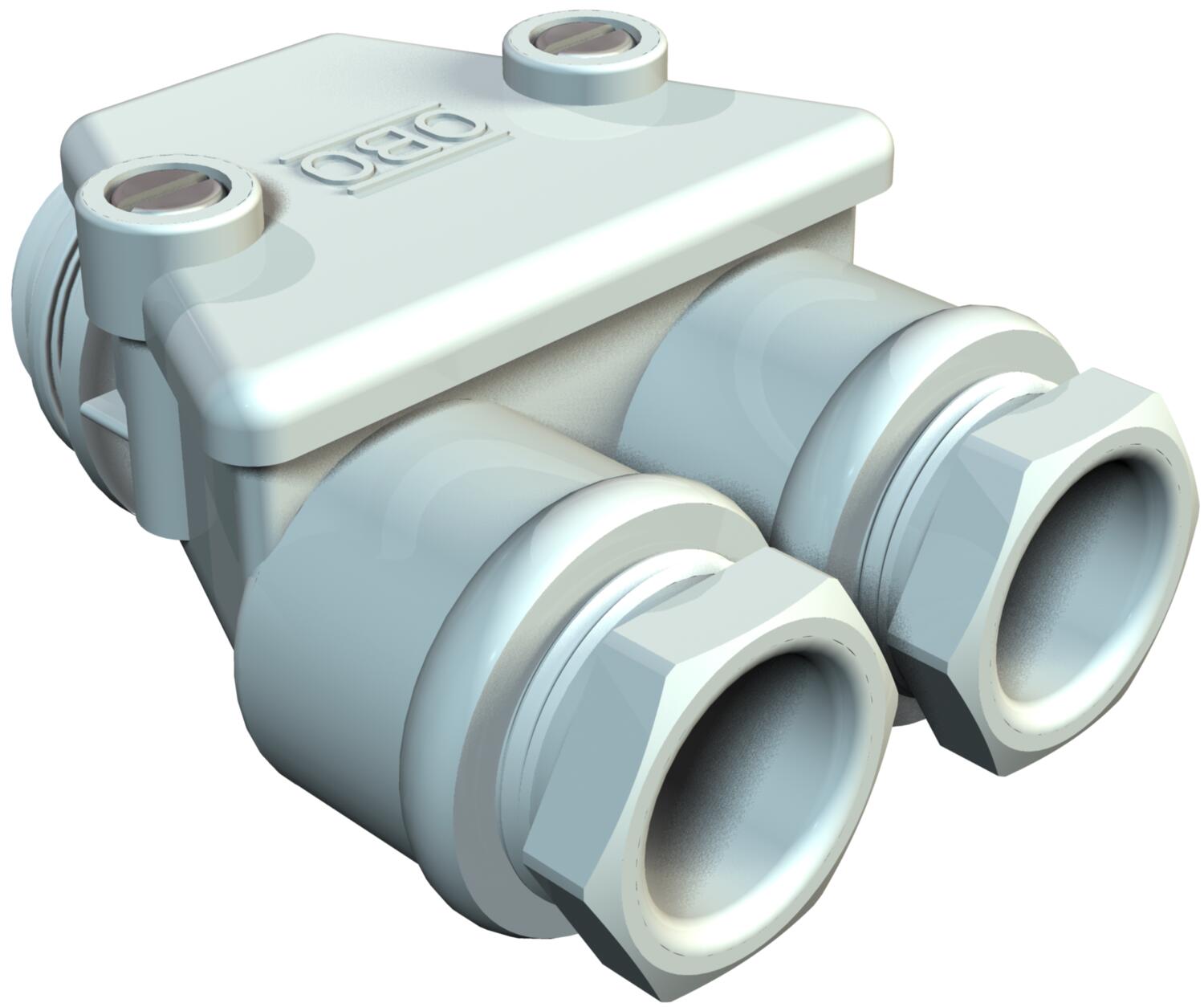

Twin cable gland, metric thread, light grey

Item no. 2024063 | EAN 4012195088639

2024063 / 113 M20 LGR
M 20 x 1,5
Product description

Product description

IP54 protection rating, with removable polystyrene lid, as well as two connection thread sealing rings made of polyethylene.

With connection thread M20 x 1.5, 2 half glands PG 13.5 for cable diameter 6.5–10.5 mm.
113/M20: with connection thread M20 x 1.5, 2 half glands Pg 13.5 for cable diameter 6.5–10.5 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension M20
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
Halogen-free yes
Impact-resistant no
Material Duroplast, Aminoplast
Protection rating IP54
Sealing area D, max. 10,5 mm
Sealing area D, min. 6,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M 20 x 1,5
Thread type Metric
Version for Straight
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
113 M20 LGR M 20 x 1,5 2024063
5 piece
