U support connector FT
Item no. 6018513 | EAN 4012196229154
- Product description
-
Product description

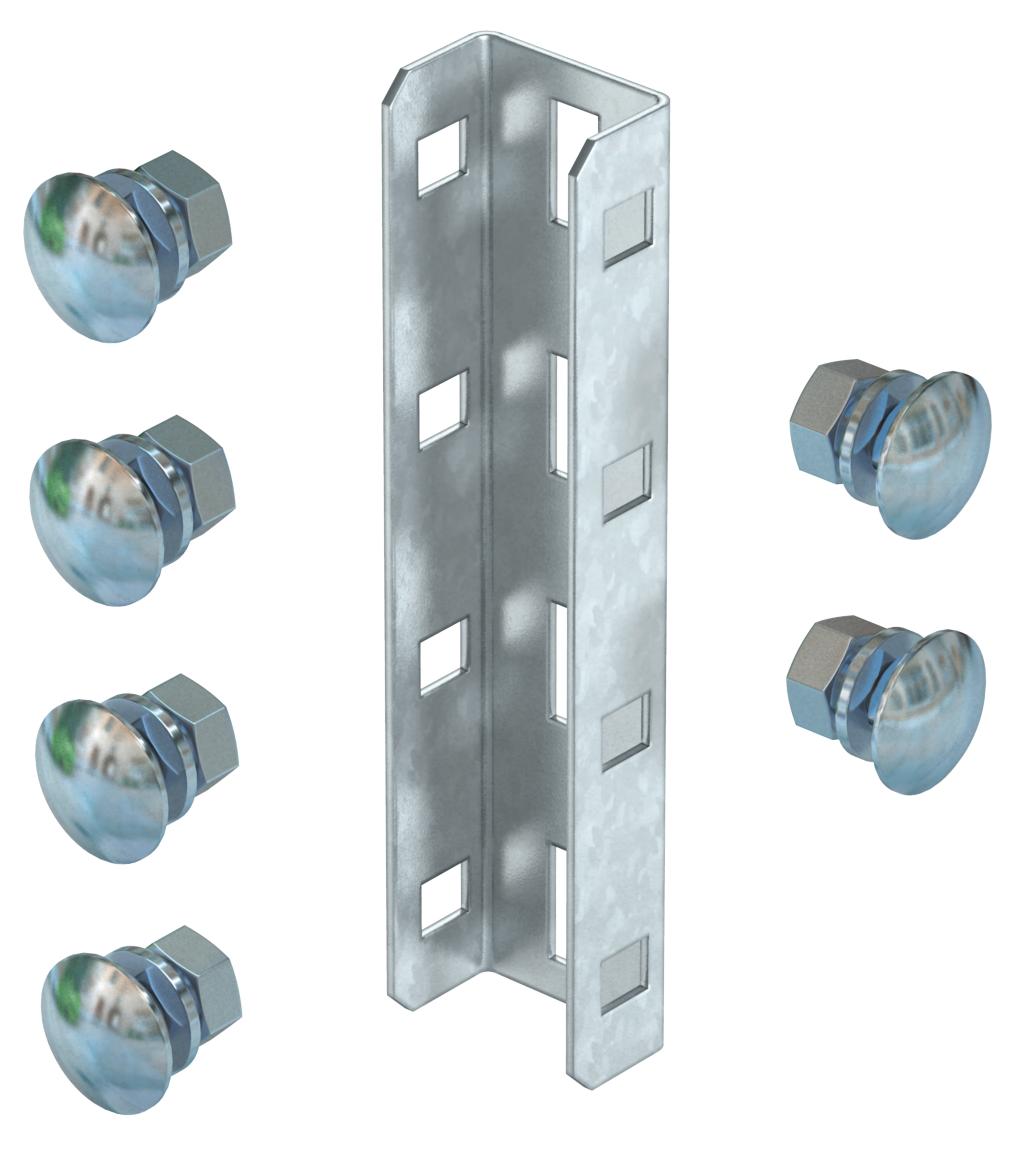

U support connector to connect US 3 supports.
-
- Technical data
-
Technical data

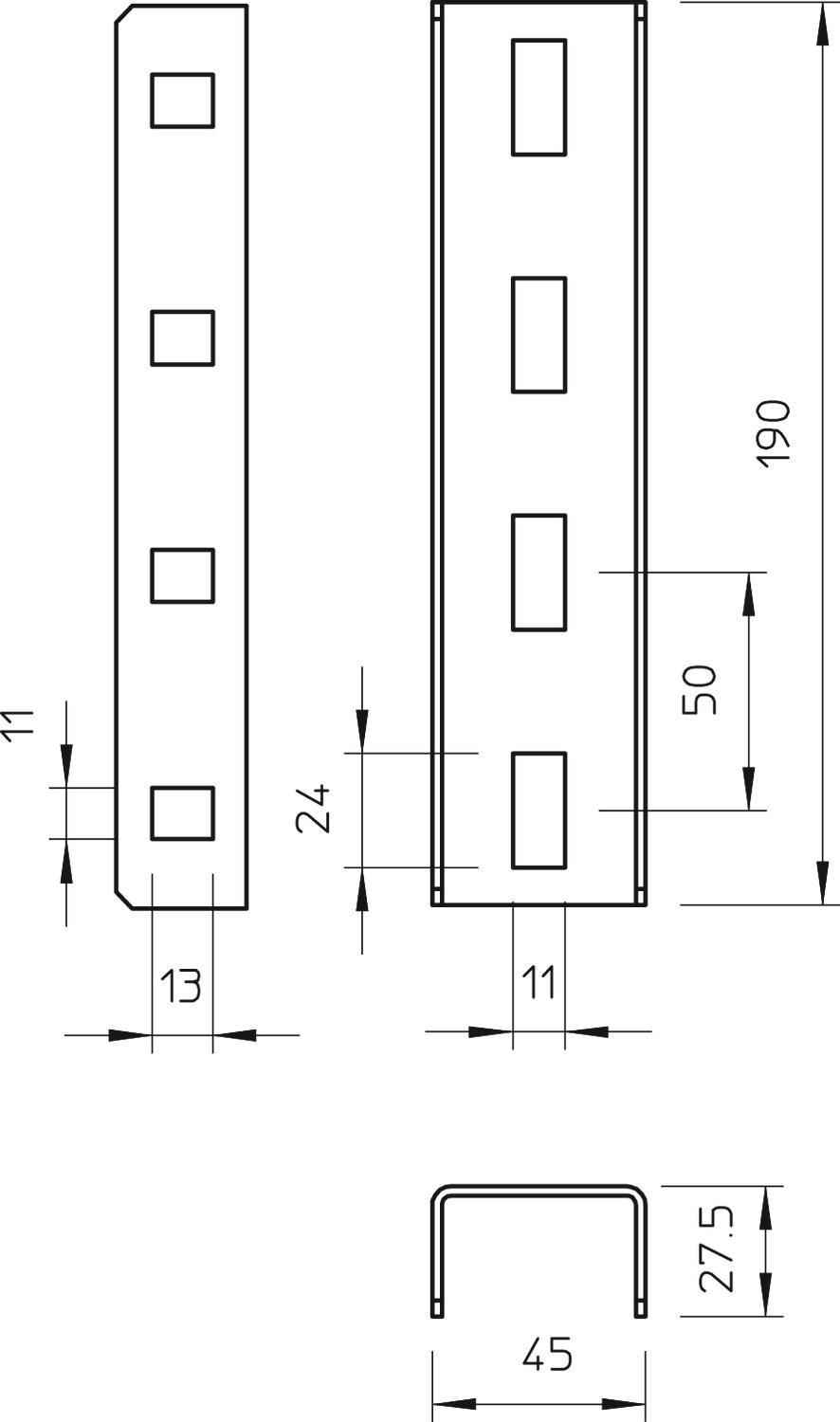

Dimension 27,5 x 45 x 190 Dimension 190x45 Drill hole spacing, centre 50 mm Height 27,5 mm Length 190 mm Material Steel Rustproof steel, pickled no Suitable for profile shapes U profile Surface Hot-dip galvanised Width 45 mm With screw accessories yes - All types
- Downloads
-
Data sheet VUS 3 FT / 6018513 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VUS 3 FT / 6018513 , 0.13MB , pdfREACH Declaration of conformity VUS 3 FT / 6018513 , 0.12MB , pdfRoHS Declaration of conformity VUS 3 FT / 6018513 , 0.13MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
