UDHOME-ONE floor socket, without floor covering recess, freely equippable, stainless steel, decorative plate: angelhair
Item no. 7368221 | EAN 4012197382292
- Product description
-

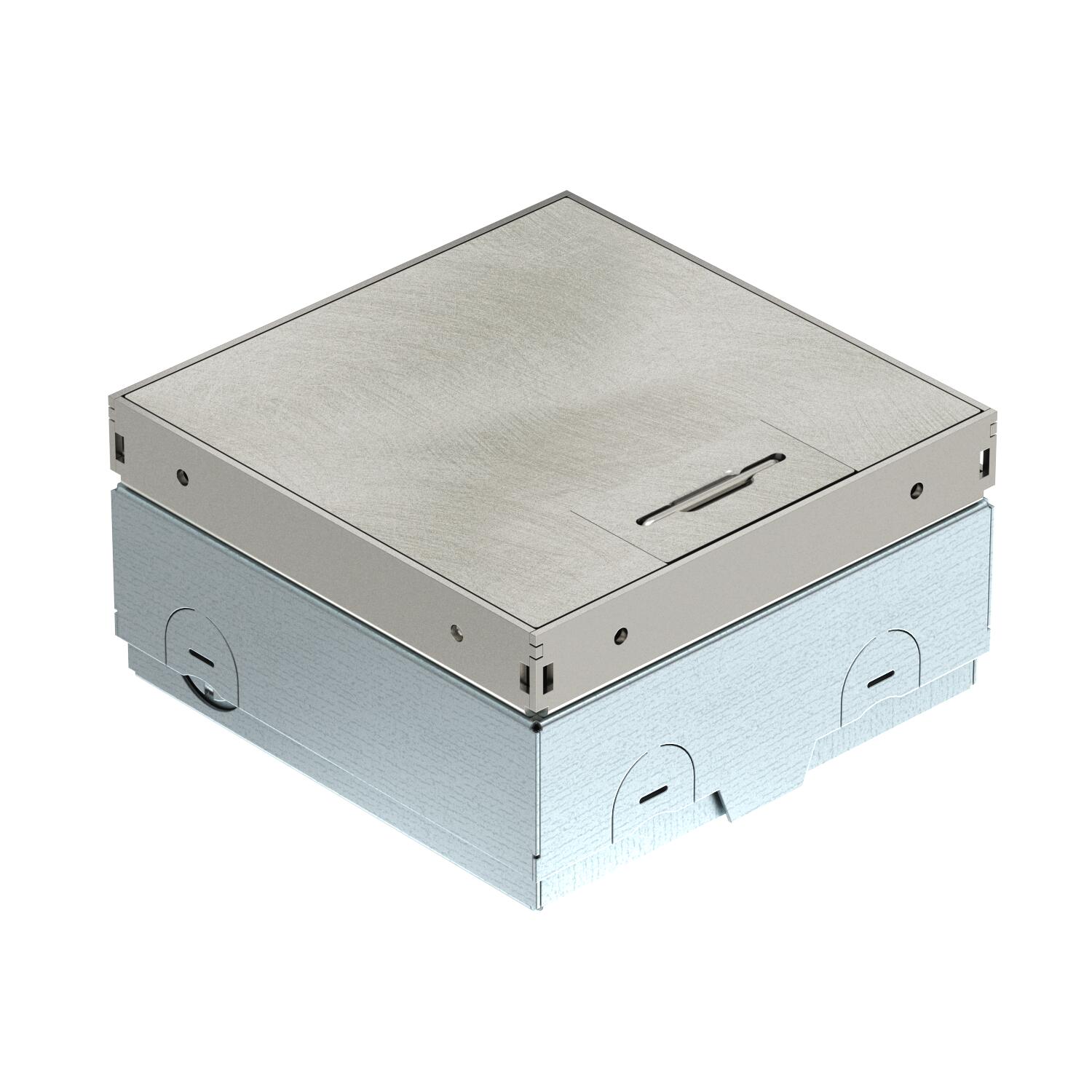

Product descriptionSquare floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with decorative plate angelhair. The load-bearing capacity of 15 kN is only guaranteed when in an unused state. Empty housing for a Modul45® installation device and a data socket. When delivered, the item is closed with a blind plate.
-
- Technical data
-
Technical data

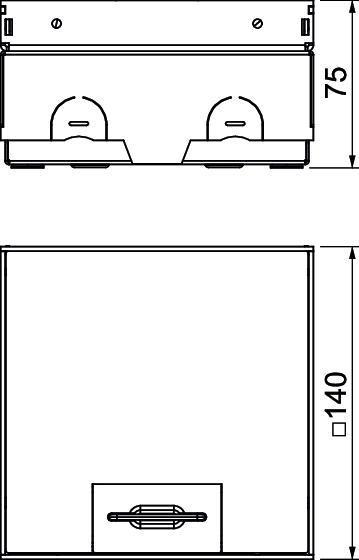

Application when unused 6.101.1 Dry floor care Application when used 6.101.1 Dry floor care Approvals VDE Cable outlet version Swivellable cord outlet Device support to accept mounting boxes no Dimension 140x140x75 Equipment Empty housing Floor care Dry Floor covering protection frame no Floor height, max. 105 mm Floor height, min. 75 mm Heavy-duty version no Height 75 mm Length 140 mm Number of installable devices 2 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Suitable for wet care no Version for Square Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N Width 140 mm With floor covering recess no - All types
- Downloads
-
Data sheet UDHOME-ONE GV D1 / 7368221 , 0.17MB , pdfEU declaration of conformity UDHOME-ONE GV D1 / 7368221 , 0.11MB , pdf
