UDHOME2 data technology support type A

Item no. 7368470 | EAN 4012196692538

Product description

Product description

Mounting support to accommodate two data connection modules of type A: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

Dimensions of a mounting opening in mm: 20.10 x 14.80.

Technical data

Technical data

Approvals	VDE
Device type	Data technology
Fastening type	Lockable
Heavy-duty version	no
Installation technology	Miscellaneous
Labelling panel	no

Material	Stainless steel
Nominal size for device installation units	2
Number of installable devices	2
Standard	EN 50085-2-2
Suitable for wet care	no

All types

All types

Types		Item no.	Quantity	SSU
DT UH2 A		7368470	piece	10 piece

Downloads

Data sheet DT UH2 A / 7368470 , 0.16MB , pdf

Brochure UDHOME floor socket and floor box , 2.83MB , pdf

Brochure Bodensteckdosen und Bodentanks UDHOME , 0.50MB , pdf

Flyer UDHOME2 system comparison , 2.00MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

EU declaration of conformity DT UH2 A / 7368470 , 0.13MB , pdf

Label approval VDE-Zeichengenehmigung Elektroinstallationskanalsystem , 0.34MB , pdf

Download

Mounting instructions Mounting instructions, data technology support DT UH2 , 0.11MB , pdf

Download

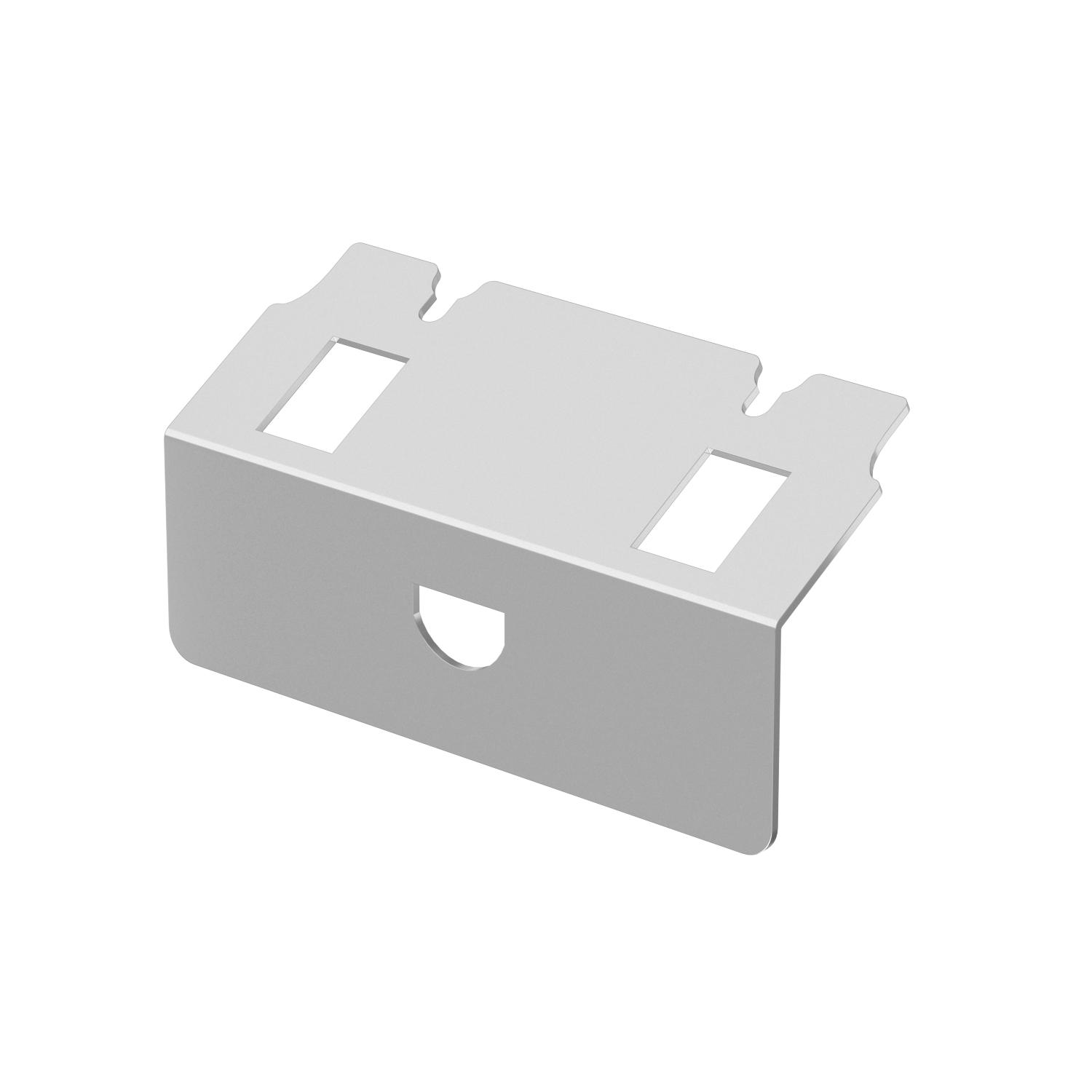

Product graphic DT UH2 A / 7368470, 36.49 kB, jpg

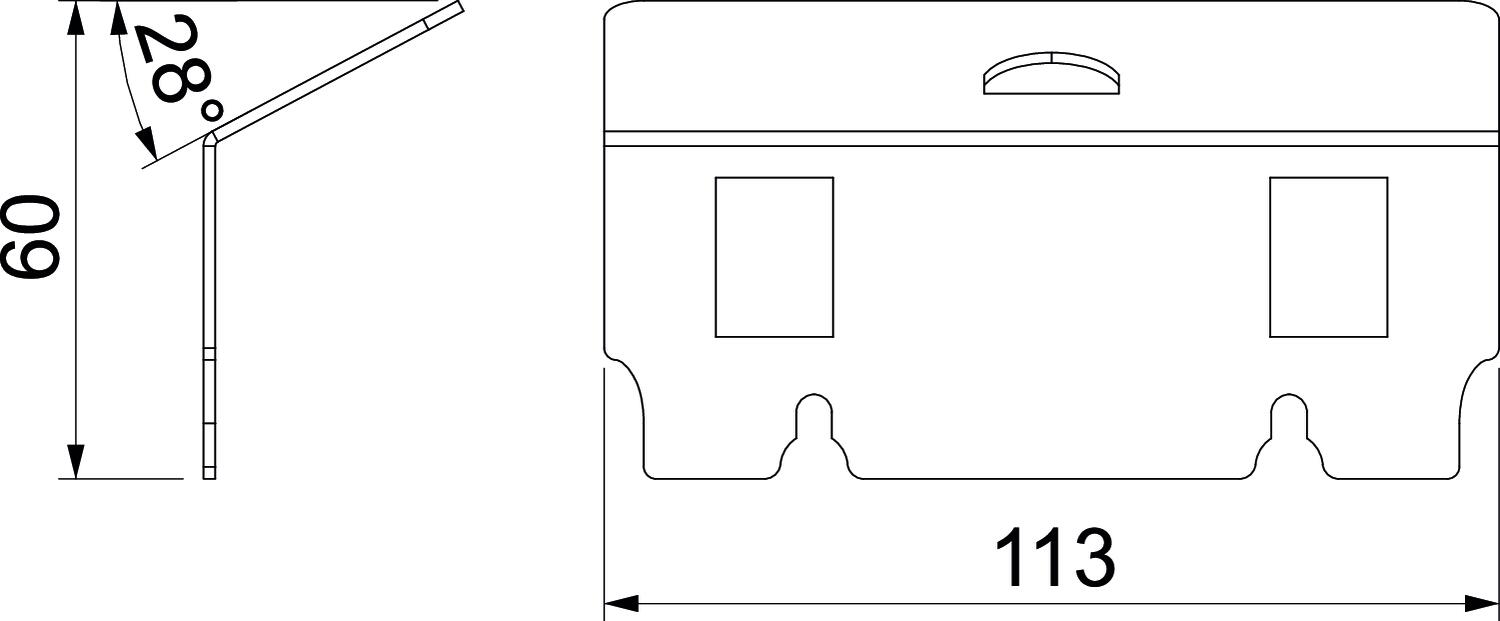

Scale drawing DT UH2 A / 7368470, 37.75 kB, jpg
