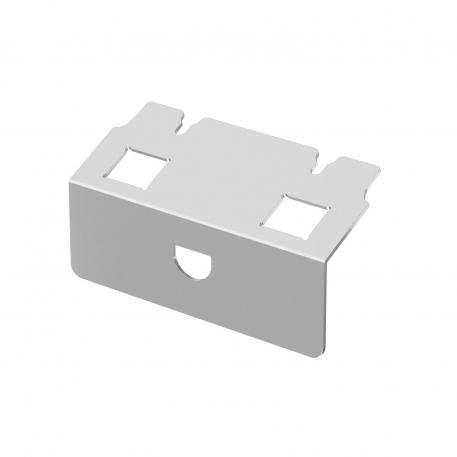

UDHOME2 data technology support type C
Item no. 7368474 | EAN 4012196692552
- Product description
-
Product descriptionMounting support to accommodate two data connection modules of type C: Brand-Rex: shielded; EKU: E-Stone; Dätwyler: KS-T, MS-K and KU-T; R&M: Snap-In and Keystone; Rutenbeck: UM and UMflex; SETEC: MKJ, UKJ and XKJ; Siemon TERA; Telegärtner: AMJ and UMJ.

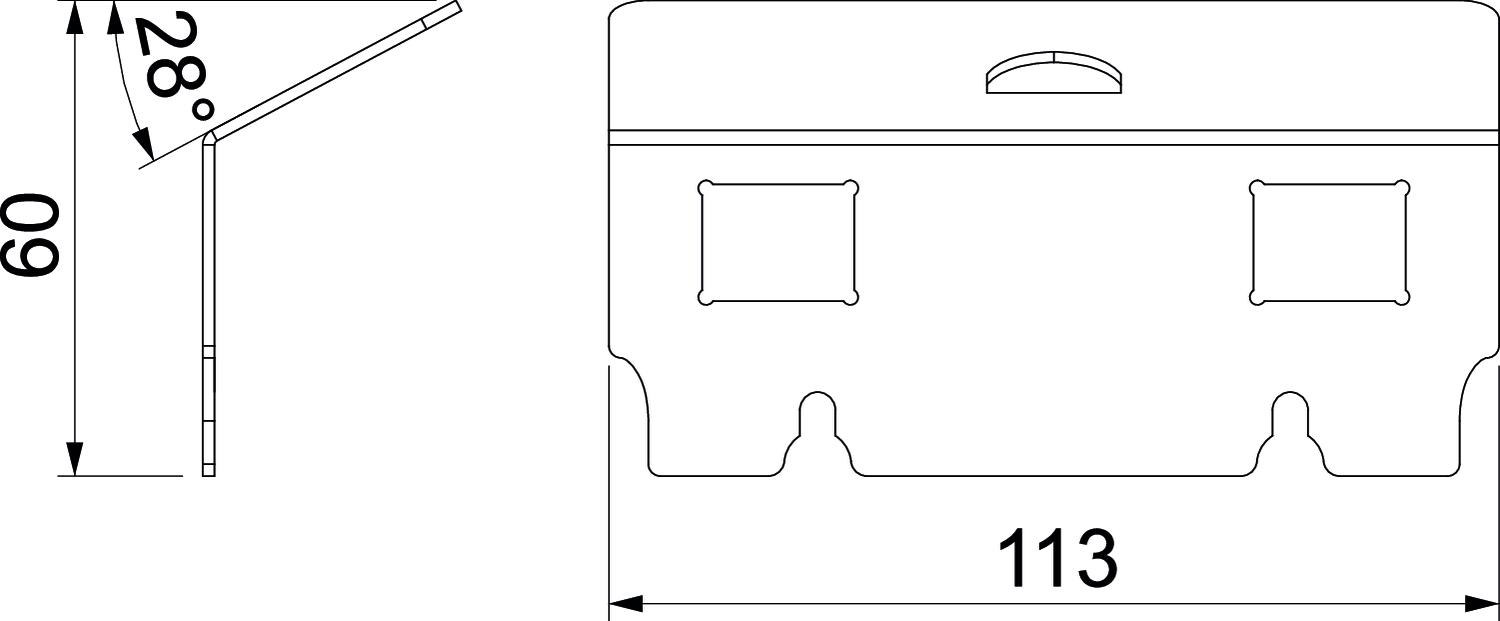

Dimensions of a mounting opening in mm: 19.30 x 14.80.
-
- Technical data
-
Technical data
Approvals VDE Device type Data technology Fastening type Lockable Heavy-duty version no Installation technology Miscellaneous Labelling panel no Material Stainless steel Nominal size for device installation units 2 Number of installable devices 2 Standard EN 50085-2-2 Suitable for wet care no - All types
-
System accessories
Products Types Item no. Quantity SSU

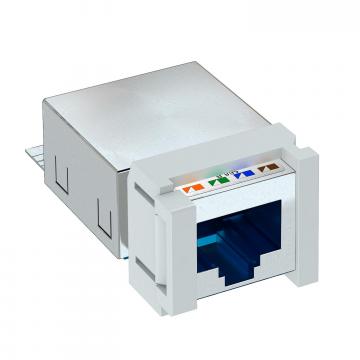

Connection module Cat. 6, shielded, snap-in
ASM-C6 GS 6117345 10 piece

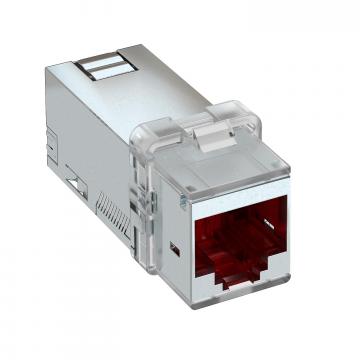

Connection module Cat. 6A, shielded, Keystone
ASM-C6A G 6117346 10 piece

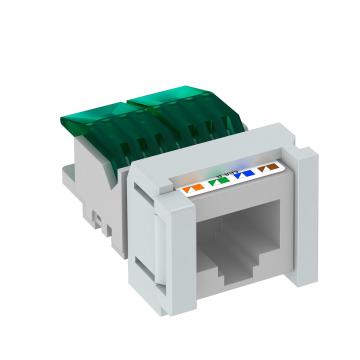

Connection module Cat. 5E, unshielded, snap-in
ASM-C5 S 6117347 10 piece

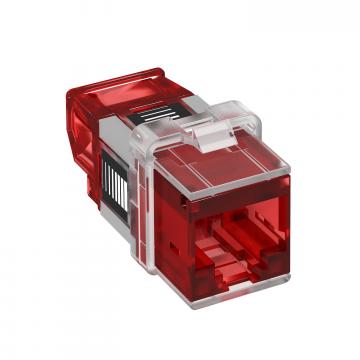

Connection module Cat. 6A, unshielded, Keystone
ASM-C6A 6117348 10 piece

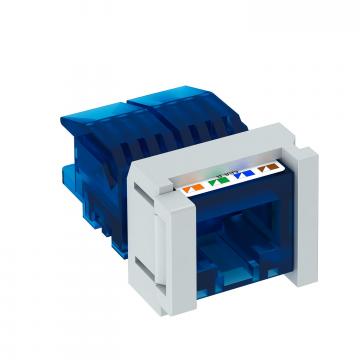

Connection module Cat. 6, unshielded, snap-in
ASM-C6 S 6117349 10 piece - Downloads
-
Data sheet DT UH2 C / 7368474 , 0.15MB , pdfEU declaration of conformity DT UH2 C / 7368474 , 0.13MB , pdfMounting instructions Mounting instructions, data technology support DT UH2 , 0.11MB , pdf
