UDHOME2 data technology support type F

Name: UDHOME2 data technology support type F
Brand: OBO Bettermann
SKU: 7368476

Item no. 7368476 | EAN 4012196692569

Product description

Product description

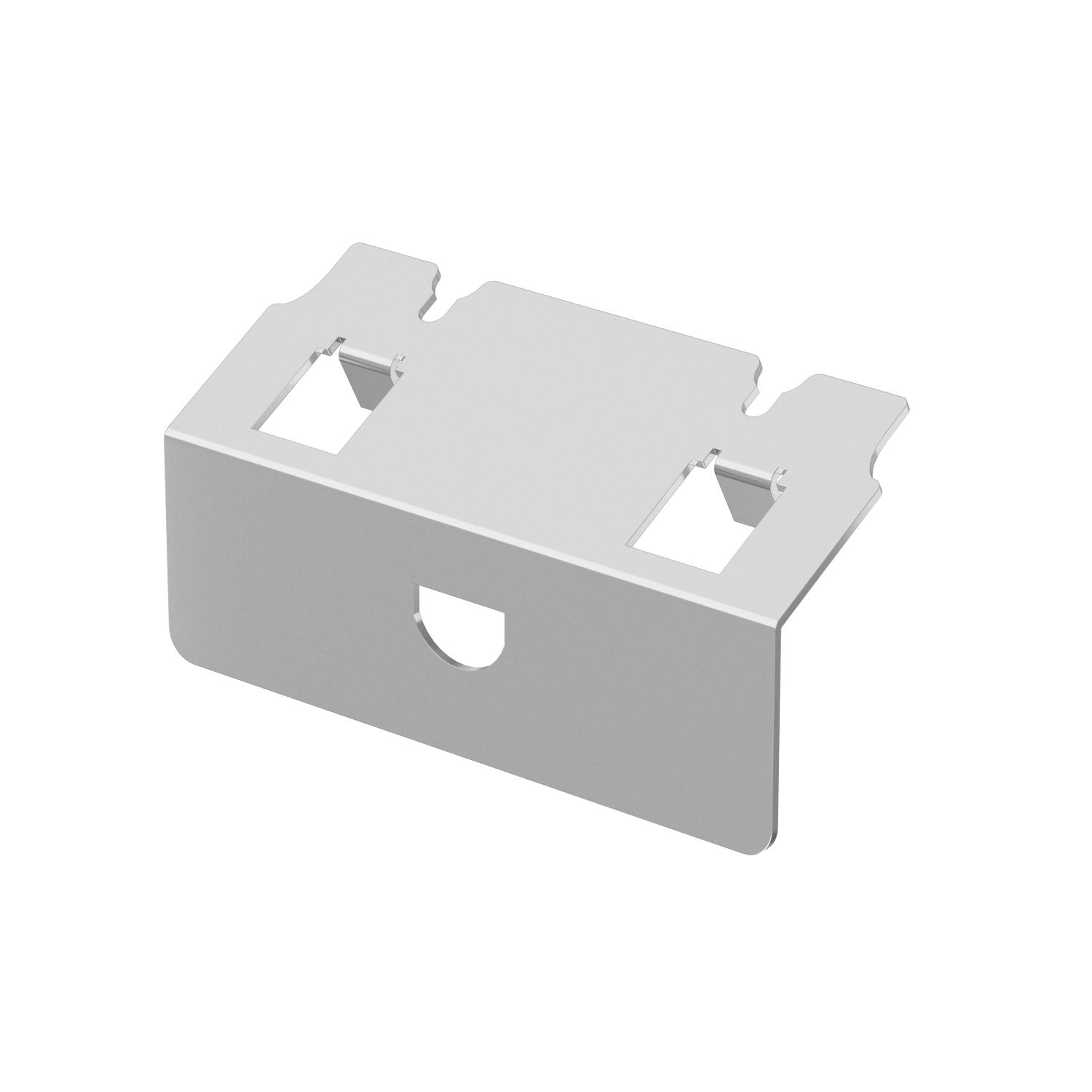

Mounting support to accommodate two data connection modules of type F: Avaya/Systimax: M series.

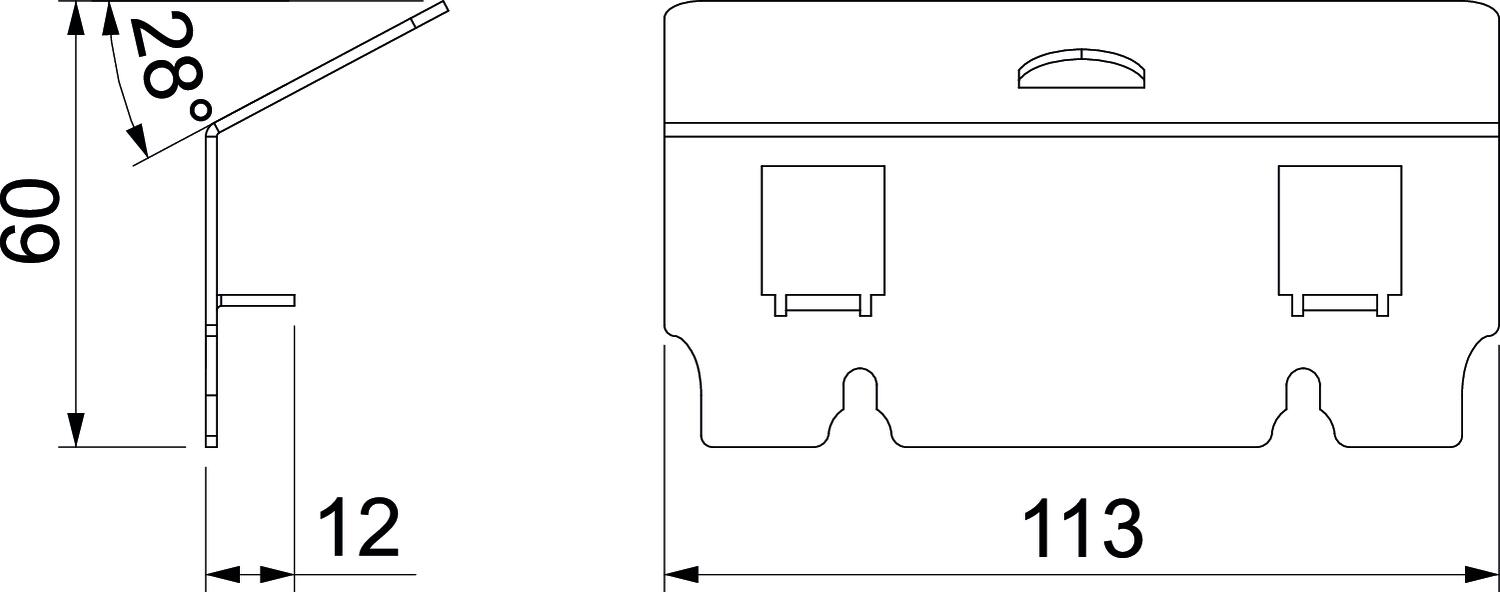

Dimensions of a mounting opening in mm: 17.40 x 16.60.

Technical data

Technical data

Approvals	VDE
Device type	Data technology
Fastening type	Lockable
Heavy-duty version	no
Installation technology	Miscellaneous
Labelling panel	no

Material	Stainless steel
Nominal size for device installation units	2
Number of installable devices	2
Standard	EN 50085-2-2
Suitable for wet care	no

All types

All types

Types		Item no.	Quantity	SSU
DT UH2 F		7368476	piece	10 piece

Downloads

Data sheet DT UH2 F / 7368476 , 0.15MB , pdf

Download

Brochure UDHOME floor socket and floor box , 2.83MB , pdf

Download

Brochure Bodensteckdosen und Bodentanks UDHOME , 0.50MB , pdf

Flyer UDHOME2 system comparison , 2.00MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

EU declaration of conformity DT UH2 F / 7368476 , 0.13MB , pdf

Download

Label approval VDE-Zeichengenehmigung Elektroinstallationskanalsystem , 0.34MB , pdf

Download

Mounting instructions Mounting instructions, data technology support DT UH2 , 0.11MB , pdf
