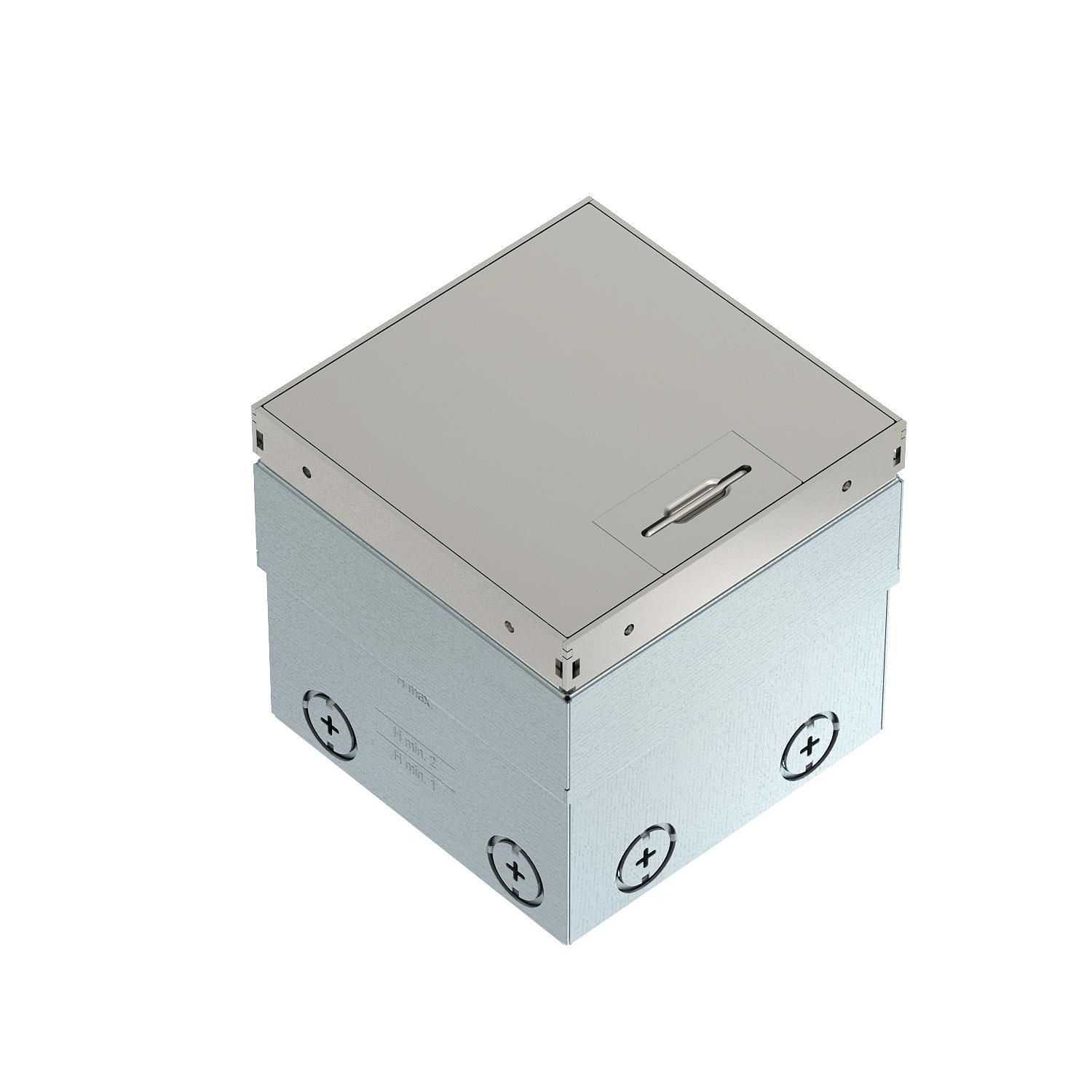

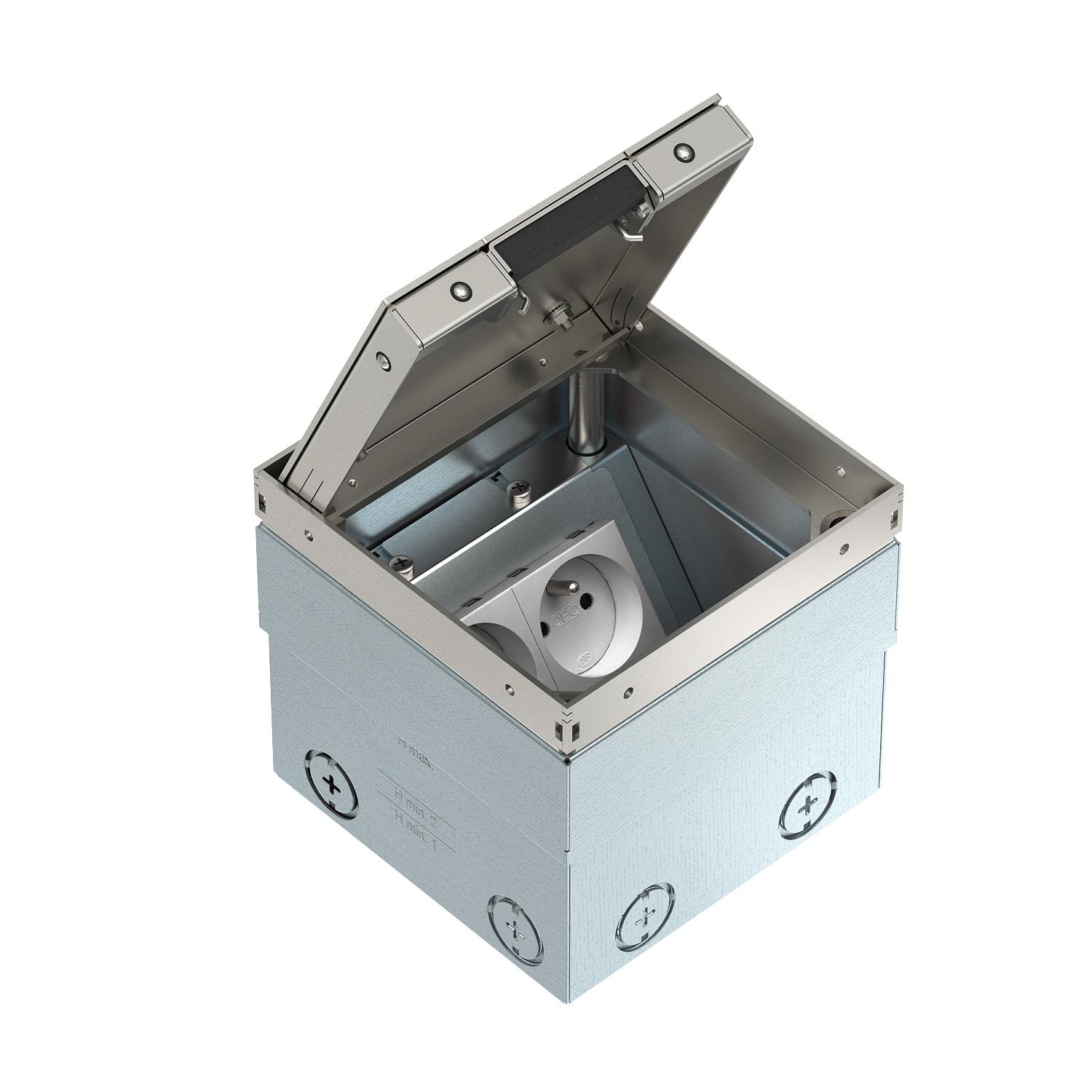

UDHOME2 floor socket, with cord outlet, without floor covering recess, 2x NF, stainless steel Decorative plate

UDHOME2 floor socket, with cord outlet, without floor covering recess, 2x NF, stainless steel

Item no. 7368332 | EAN 4012196692477

Item no. / Types	7368332 / UDHOME2 GVN

Cover version	Decorative plate

Product description

Product description

Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range is +35 mm.
Frame and cover made of stainless steel and visible in the floor covering.

The scope of delivery contains a double NF socket.

Up to two modular data sockets can be installed in the optional mounting support.

Technical data

Technical data

Application when unused	6.101.1 Dry floor care
Application when used	6.101.1 Dry floor care
Approvals	VDE
Cable outlet version	Swivellable cord outlet
CO2 Footprint (GWP) Cradle-to-Gate	13,2768 kg CO2e / 1 Piece
Cover version	Decorative plate
Device support to accept mounting boxes	no

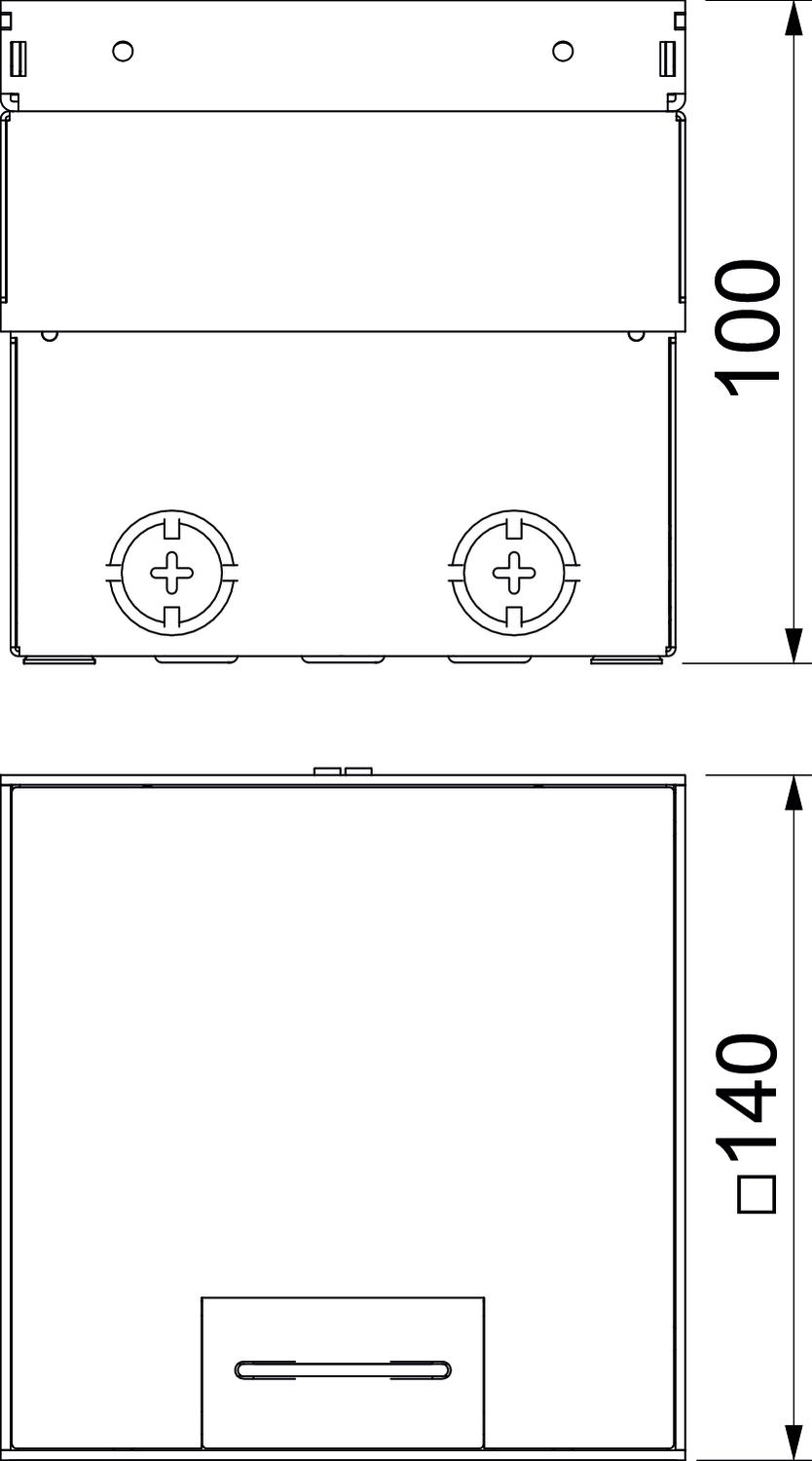

Dimension	140x140x110
Equipment	Double LF socket
Floor care	Dry
Floor covering protection frame	no
Floor height, max.	135 mm
Floor height, min.	100 mm
Frame version	Floor covering contact edge
Heavy-duty version	no
Height	100 mm
Length	140 mm
Material	Stainless steel

Nominal size for device installation units	2
Number of installable devices	2
Opening mechanism	Handle
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK10
Standard	EN 50085-2-2
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Suitable for wet care	no
Version for	Square
Vertical load, large area	to 15,000 N
Vertical load, small area	to 3,000 N
Width	140 mm
With floor covering recess	no

All types

All types

Types	Cover version	Item no.	Quantity	SSU
UDHOME2 GVN	Decorative plate	7368332	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
UDHOME2 data technology support type C	DT UH2 C	7368474	piece	1 piece
UDHOME2 data technology support type A	DT UH2 A	7368470	piece	1 piece
UDHOME2 data technology support type B	DT UH2 B	7368472	piece	1 piece
UDHOME2 data technology support type F	DT UH2 F	7368476	piece	1 piece
UDHOME2 data technology support type LE	DT UH2 LE	7368478	piece	1 piece
Height extension for UDHOME-ONE/UDHOME2 floor socket	HE 60UH2	7368418	piece	1 piece
