UDHOME2 floor socket, without floor covering recess, freely equippable, stainless steel, decorative plate: cross hatch
Item no. 7368263 | EAN 4012197382216
- Product description
-

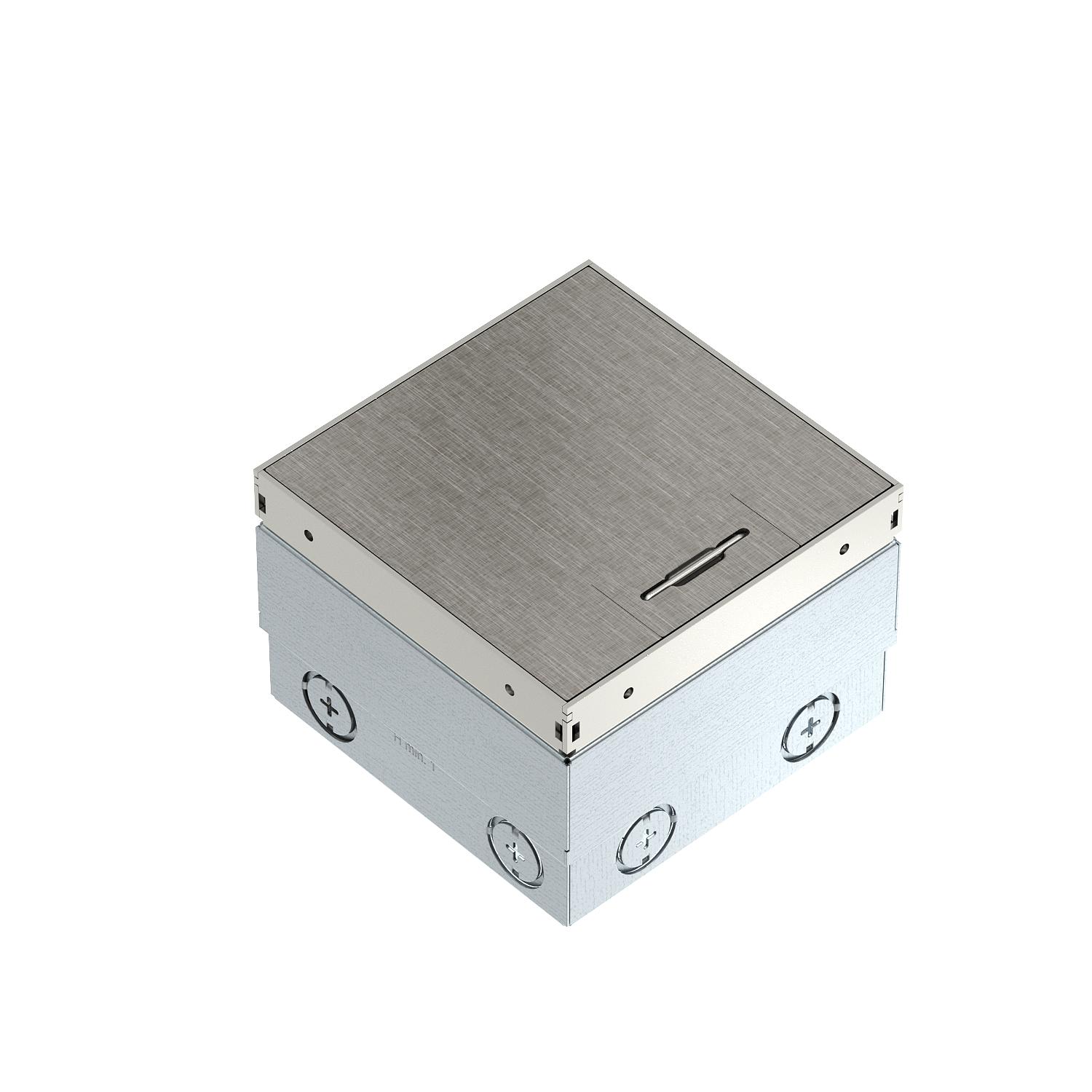

Product descriptionSquare floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range 35 mm.Frame and cover made of stainless steel and visible in the floor covering. Cover with Cross hatch decorative plate. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support. The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
-
- Technical data
-
Technical data

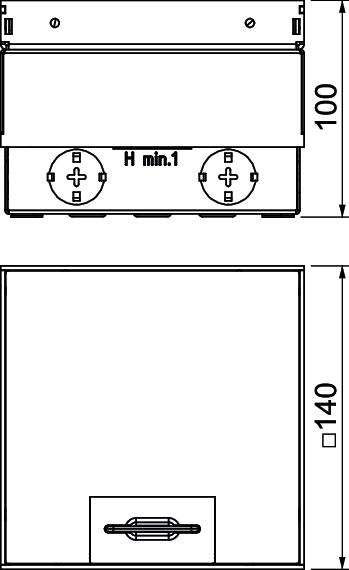

Application when unused 6.101.1 Dry floor care Application when used 6.101.1 Dry floor care Approvals VDE Cable outlet version Swivellable cord outlet Device support to accept mounting boxes no Dimension 140x140x110 Equipment Empty housing Floor care Dry Floor covering protection frame no Floor height, max. 135 mm Floor height, min. 100 mm Frame version Floor covering contact edge Heavy-duty version no Height 100 mm Length 140 mm Nominal size for device installation units 2 Number of installable devices 2 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Seal installation option no Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Suitable for wet care no Version for Square Vertical load, small area to 3,000 N Width 140 mm With floor covering recess no - All types
- Downloads
-
Data sheet UDHOME2 GV D3 / 7368263 , 0.19MB , pdfEU declaration of conformity UDHOME2 GV D3 / 7368263 , 0.11MB , pdf
