- Product description
-

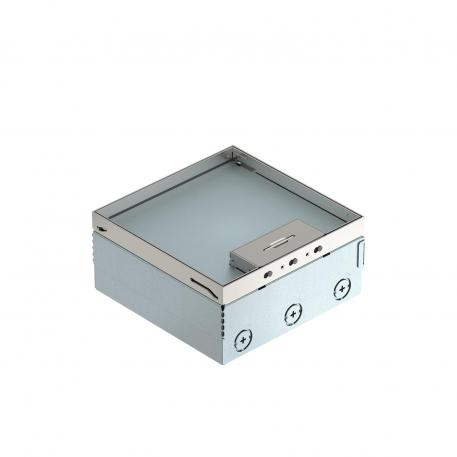

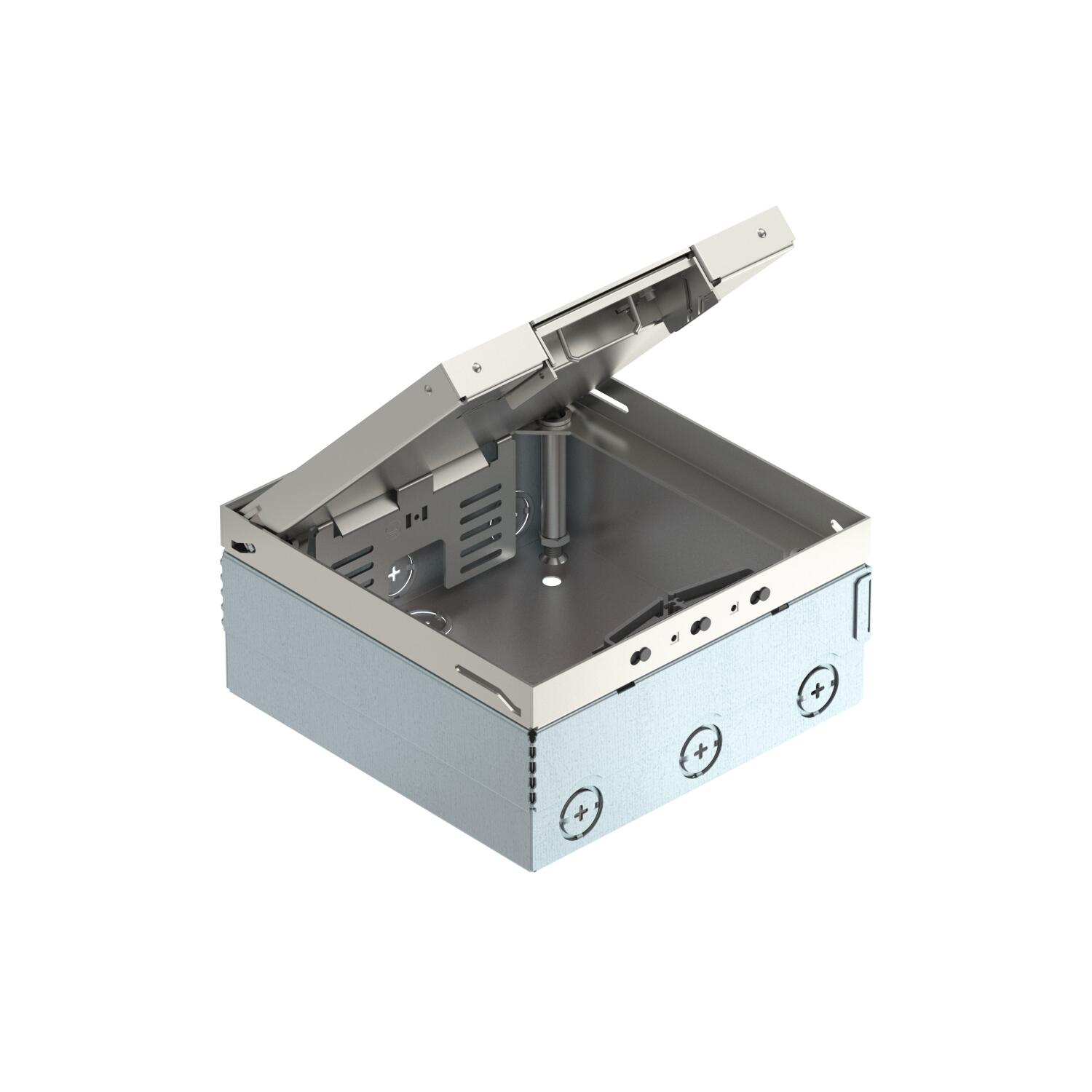

Product descriptionSquare floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to 2 UT3 universal supports for up to 6 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
Surfaces visible in the floor covering made of stainless steel.
- Technical data
-
Technical data
Cable outlet version Swivellable cord outlet Cover version Floor covering recess CO₂ Footprint (GWP) Cradle-to-Gate 16,656 kg CO₂e / 1 Piece Dimension h 95 mm Equipment Empty housing Floor covering protection frame no Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Length 202 mm Length of external dimensions 199 mm Length of installation dimensions 202 mm Material Stainless steel Number of mounting boxes 2 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Suitable for cavity floor installation yes Suitable for raised floor installation no Suitable for underfloor ducts no Suitable for wet care no Version for Square Wide external dimensions 199 mm Wide installation dimensions 202 mm Width 202 mm With floor covering recess yes - All types
- Downloads
-
Data sheet UDHOME4 2V / 7427232 , 0.27MB , pdfEU declaration of conformity UDHOME4 2V / 7427232 , 0.13MB , pdfUK Declaration of Conformity UDHOME4 2V / 7427232 , 0.14MB , pdfREACH Declaration of conformity UDHOME4 2V / 7427232 , 0.12MB , pdfRoHS Declaration of conformity UDHOME4 2V / 7427232 , 0.12MB , pdfMounting instructions Mounting instructions, floor box UDHOME 4/9 , 0.08MB , pdf
